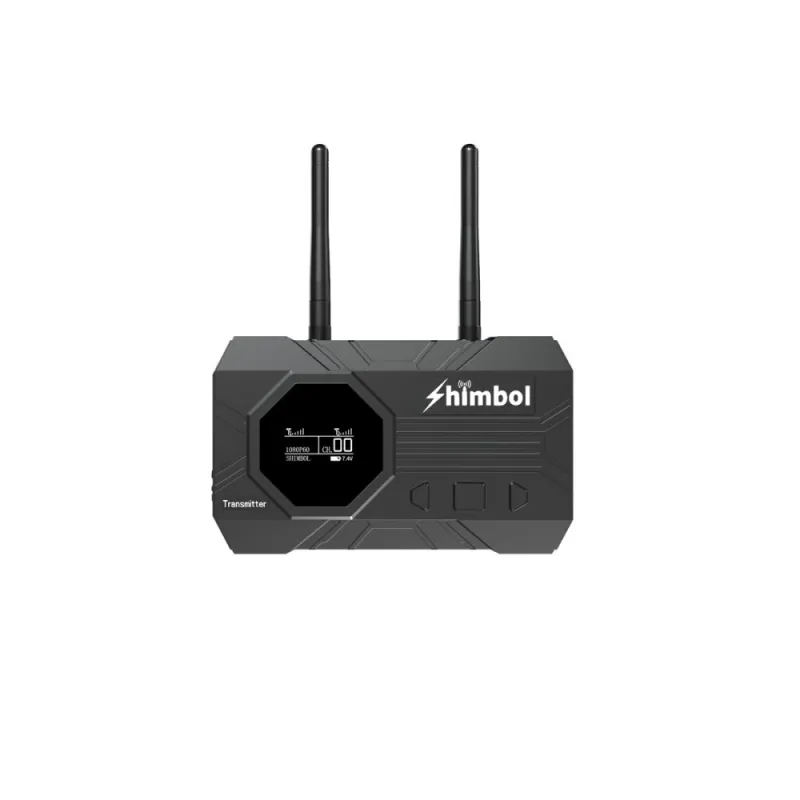

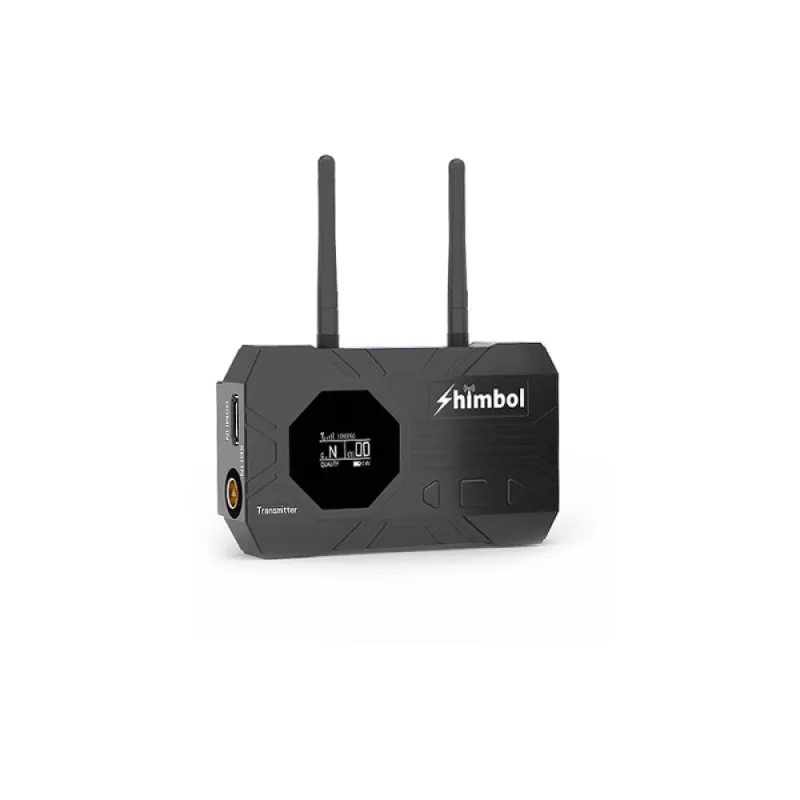

Shimbol ZO1000-TX Transmitter
- 1000ft Transmission Distance
- Low latency of 80ms
- Lightweight and portable
- 1080p60
- HDMI & SDI Input
- Low power consumption
1TX to 2RX
When the transmitter and receiver are in a single transmission, the transmitter can send two signals simultaneously, and two receivers can receive signals simultaneously.
Group Mode
You do not need to perform complicated steps to enable Group mode and no more encrypted connections.

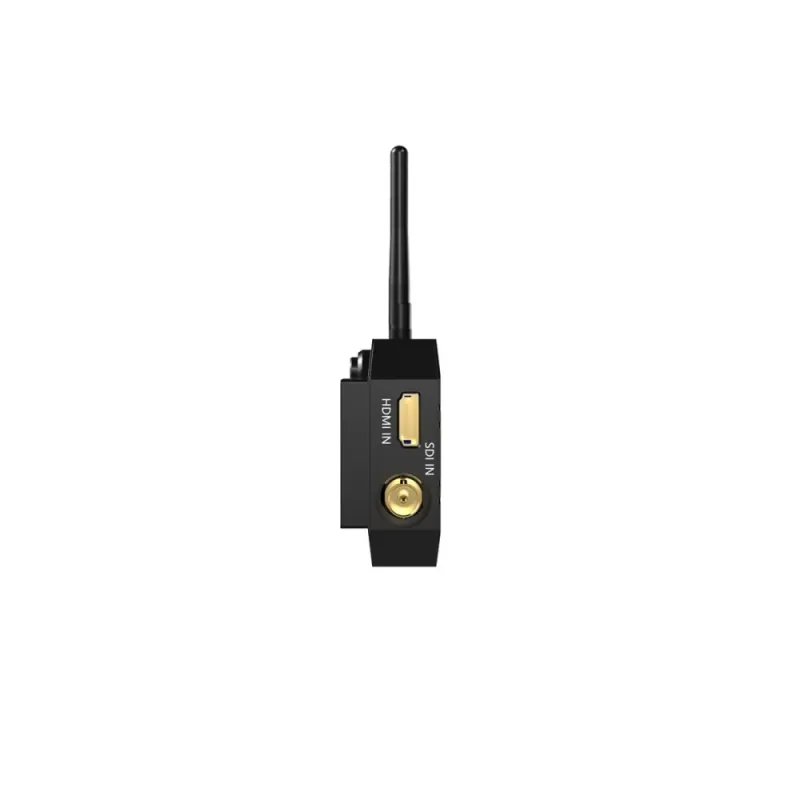

HDMI/SDI Dual Ports
ZO1000 is equipped with HDMI and SDI dual interfaces, support multiple signal formats up to 1080p FHD at 60pfs.

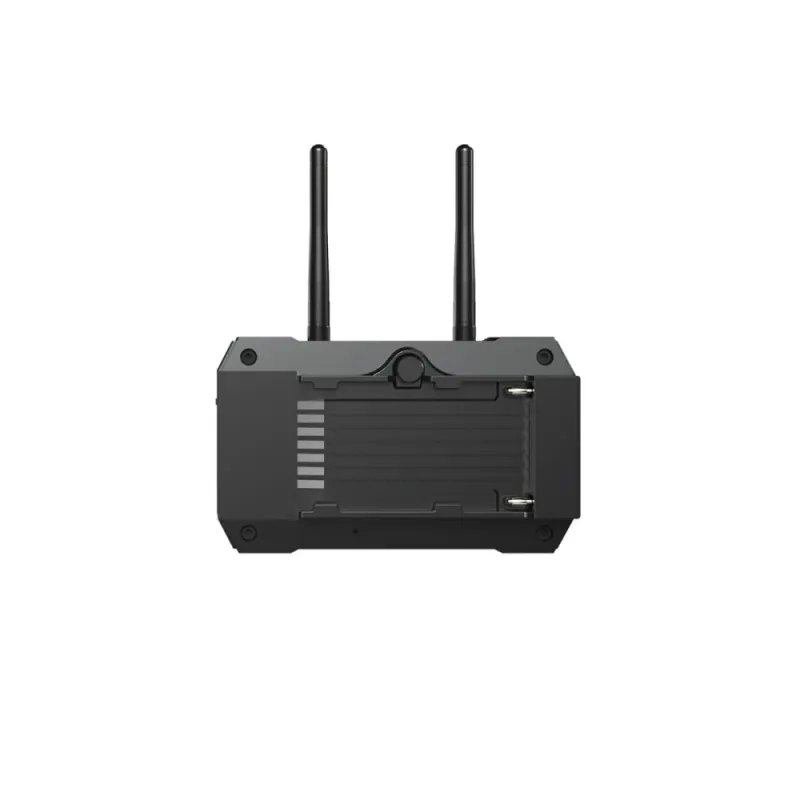

Optional NP-F Batteries Providing Longer Lasting Power
The ZO1000 has an extremely low power consumption of less than 4.5W and is equipped with an NP-F battery plate for longer lasting when powered by NP-F battery, there is no need to worry about continuous use.
Aviation Material
The frame of the ZO1000 is made of a unique aluminium alloy, which makes the product lighter and more durable.
OLED Visual Design
OLED visual display technology quickly presents important information. Delicate picture quality, improve the efficiency of photography and shooting. It can also improve user experience and make the interface more beautiful.
Core Technology with Newly Developed Chip
Equipped with high-end chips to provide users with faster and stable transmission experience. 5.8GHZ frequency transmission enables faster speed, higher energy efficiency and higher performance.
In the Box
• ZO1000 Transmitter
• 3× Antennas
• Type-C Power Cable
Specifications
- Interface
- HDMI Input/SDI Input
- Powered By
- 5V-2A Type-C/NP-F Battery
- Power consumption
- <4W
- HDMI Input
- 720P@50/60Hz
1280*1024@60Hz
1080i@50/60Hz
1080p@24/25/30/50/60Hz - SDI Input
- 720P@50/60Hz
1080i@50/59.94/60Hz
1080p@23.98/24/25/29.97/30/50/59.94/60Hz
1080PSF23.98/24/25/29.97/30Hz - Audio Sample Rate
- 48kHz
- Weight
- 168g
- Size
- 110×66.5×29.5mm
- Frequency
- 5.1G-5.8G
- Transmit power
- 17dBm
- Transmission delay
- 80ms, Noisy RF environment 120ms typical
- Receiving sensitivity
- -80dBm
- Distance
- 1TX to 1RX 300m (LOS)
1TX to 2RX 100m (LOS)
