SWIT S-4904SS Wireless Video System
The SWIT S-4904SS is a high-performance wireless video transmission system designed for professional broadcast, film, and live production applications. Utilizing advanced WHDI (MIMO/OFDM) technology, the system delivers uncompressed 3G/HD/SD-SDI and HDMI signals with less than 1ms latency, ensuring real-time monitoring without visible delay.
With a transmission range of up to 700 meters (line-of-sight), the S-4904SS is ideal for large studio environments, outdoor productions, sports broadcasting, and multi-camera setups. It supports 2-channel embedded audio via SDI/HDMI and operates within the license-free 5.15-5.9GHz frequency band. Users can configure frequency bands as needed to optimize performance in different RF environments.
The system supports multicast functionality, allowing one transmitter to send signals to multiple receivers simultaneously. For security, AES 256-bit encryption ensures safe and protected video transmission.
Both transmitter and receiver feature V-Mount battery plates for seamless integration into professional camera and monitoring rigs. Built with an all-metal housing, the units are durable and ready for demanding production environments. The system offers true plug-and-play operation with pure hardware connection—no complex setup required.
Key Features
- Up to 700m (1000ft) line-of-sight transmission
- Uncompressed 3G/HD/SD-SDI and HDMI transmission
- Less than 1ms ultra-low latency
- WHDI (MIMO/OFDM) wireless technology
- 5.15-5.9GHz license-free frequency range
- User configurable frequency bands
- Multicast support (1 TX to multiple RX units)
- 2-channel SDI/HDMI embedded audio transmission
- AES 256-bit encryption
- Less than 63mW radio power
- V-Mount power connections (TX & RX)
- All-metal durable housing
- Plug-and-play operation

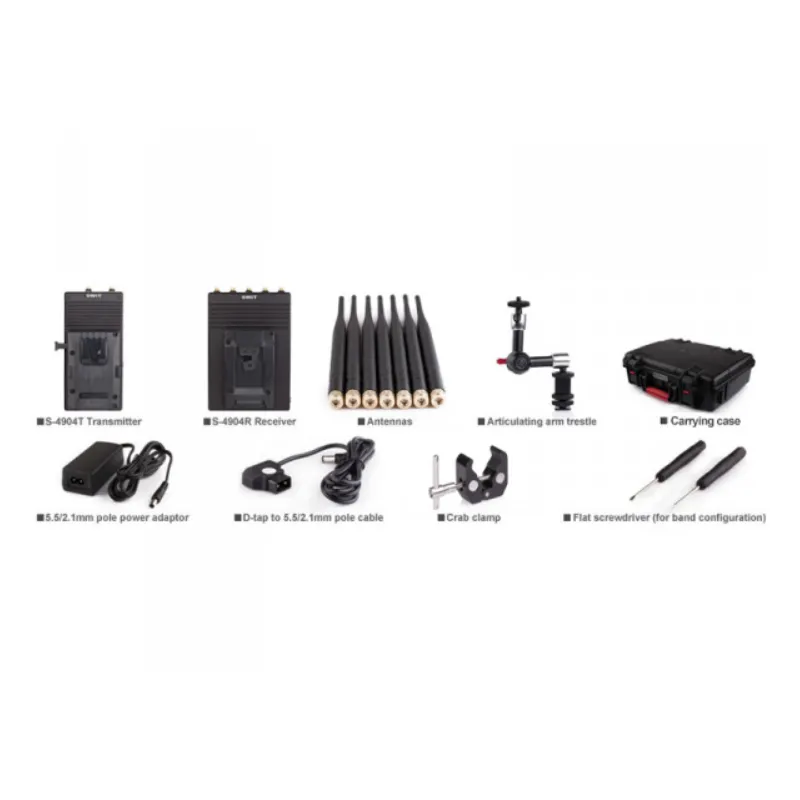

Included in the Box
- 1 S-4904T Transmitter (V-Mount)
- 1 S-4904R Receiver (V-Mount)
- 7 Antennas
- 1 Articulating Arm Trestle
- 1 Crab Clamp
- 1 D-Tap to 5.5/2.1mm Pole Cable
- 1 5.5/2.1mm Pole Power Adapter
- 2 Flat Screwdrivers (for band configuration)
Specifications
- Transmission Distance: Up to 700m (LOS)
- Latency: <1ms
- Frequency Range: 5.15-5.9GHz (license-free)
- Video Input/Output: 3G/HD/SD-SDI, HDMI
- Audio: 2-channel embedded
- Encryption: AES 256-bit
- Power Mount: V-Mount
- Housing: All-metal construction
