Infinitek CAT5e Flexi drum 40m

Infinitek CAT5e Flexi drum 40m

The Infinitek CAT5e Flexi drum features a robust 40m Canare CAT5e cable with Neutrik connectors.

Write a review

Product details

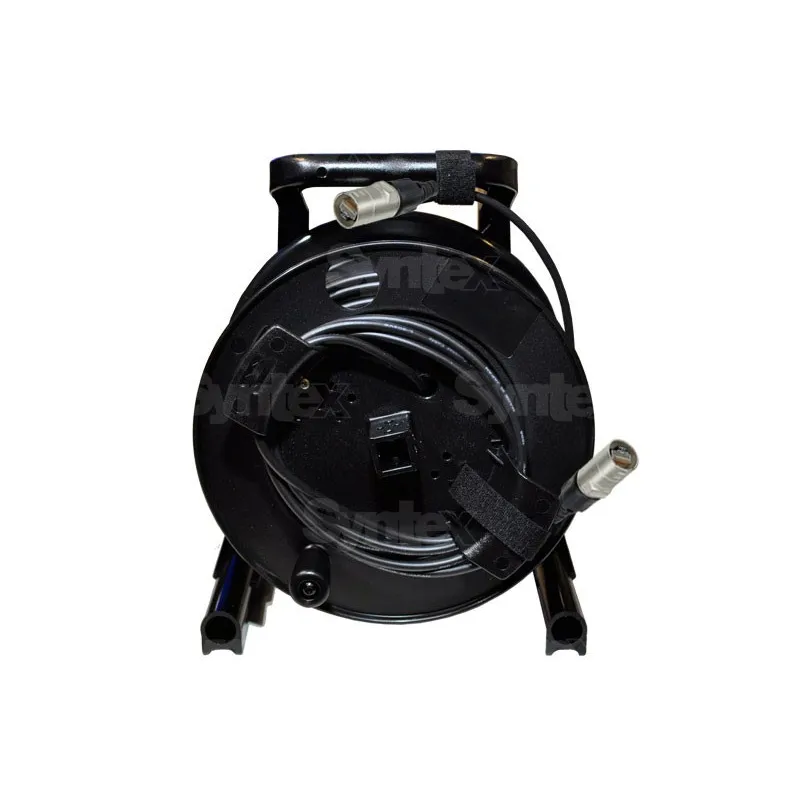

The Canare CAT5e Flexi drum features a flexible and robust Canare RJC5ES-4P-BS CAT5e STP network cable with a 6.7 mm outer diameter, equipped with Neutrik etherCON RJ45 terminations, and wound on a Schill cable drum. This Ethernet cable is suitable for various applications including computer networks, digital audio networks, network cameras, and HDBaseT transmissions. The total cable length includes connectors.

Canare RJC5ES-4P-BS cable

Features

  • Flexible and extra strong CAT5e STP cable for distances up to 50 m
  • Supports 1000BASE-T, 100BASE-TX, and 10BASE-T
  • Stranded conductors with a common shield braid
  • Excellent flexibility and resistance to repeated bending

Specifications - Suitable for high performance and high speed cable transmissions

  • Standard manufactured lengths in (m) 100/200
  • Cable weight in kg/100 m 6.1
  • Sheath diameter (overall diameter) in mm 6.7
  • AWG 24 (0.22 mm)
  • Number and diameter of cores per conductor in mm 7/0.20
  • Shielding factor 90
  • Conductor resistance in ohms/100 m 9.5
  • Impedance in ohms 44

Ethernet cable designation

CAT5e
U - unshielded, unshielded
F - foiled (with foil)
S - Shielded

RJ45 connectors Neutrik NE8MC

Specifications

  • Name - NE8MC
  • Type - Male
  • Cable diameter - max. 8 mm
  • Force required to connect the connectors 20 N
  • Force required to disconnect connectors 20 N
  • Lifetime > 1000 mating cycles

Material

  • Cable cap - polyamide (PA 6)
  • Body - zinc die-cast (ZnAl4Cu1)
  • Body finish - nickel
  • Temperature range - -30 C to +80 C

Drum Schill GT-235.RM

Application

  • For various types of cables
  • Plastic holder for cable fixing
  • Capacity in (m) according to cable diameter: 5 mm - 109 m, 6 mm - 79 m, 7 mm - 61 m

Technical data - cable socket for cables included in the package

  • Handle for easy winding
  • Integrated brake
  • Width x depth x height in mm 208 x 206 x 295
  • Weight in kg 1.00
