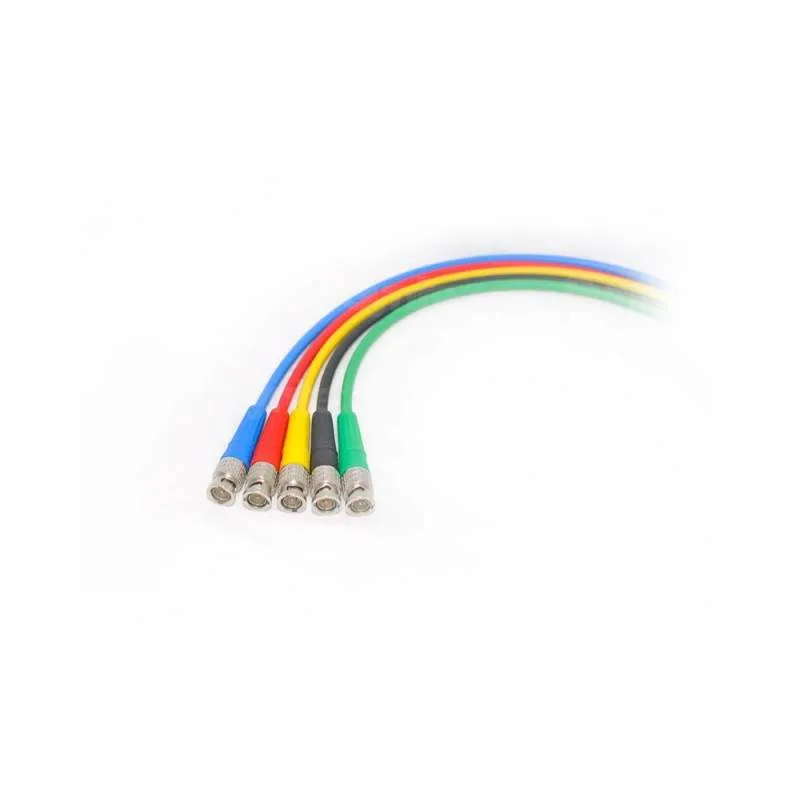

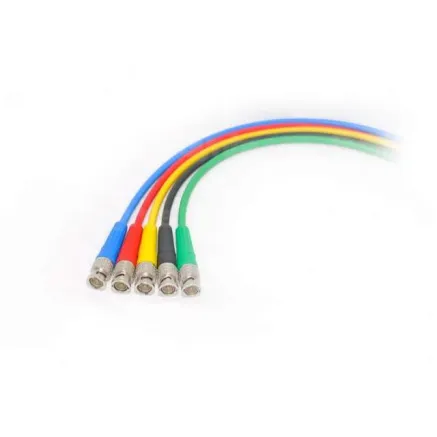

Canare L-3C2VS BLU BNC 20m Coaxial Cable

Product: CanareL-3C2VS BLU BNC(M-male) / BNC (M-male)20m

Canare L-3C2VS is a very lightweight and super flexible 75 ohm 5.5mm HD/SD-SDI coaxial cable with a stranded center conductor and a tightly woven shielded outer conductor. The L-3C2VS cable remains flexible even at low temperatures. At both ends are crimp-on BNC (M) connectors type BCP-A3.

Cable Specifications

• Sheath diameter (overall diameter) in mm: 5.5
• Cable weight in kg/100m: 4.5
• Central conductor - number and diameter of wire strands in mm: 7/0.18
• Total diameter of central conductor in mm: 0.54
• Foam dielectric - diameter in mm: 3.1
• Resistance of central conductor in Ohm/100m: 10.5
• Resistance of the outer conductor in Ohm/100m: 1.9
• Static capacitance in pF/m: 67
• Attenuation in dB/100m: 4.5
• Impedance in Ohm: 75

Connector Specifications

• Tensile strength in kg: >24.9
• Insulation resistance at 500V DC in Ohm: >1000M
• Rated voltage for 1min: 1500V AC (rms)
• Resistance of central contact: <6m ohm
• Resistance of outer contact: <3m ohm
• Impedance in Ohm: 75
• Connector body - material/surface: Brass / Nickel
• Central contact - material/surface: Brass / Gold
• External contact - material: Beryllium Copper
• Dielectric - Material: PTFE polytetrafluoroethylene
• Crimp sleeve - material/surface: Copper / Tin
