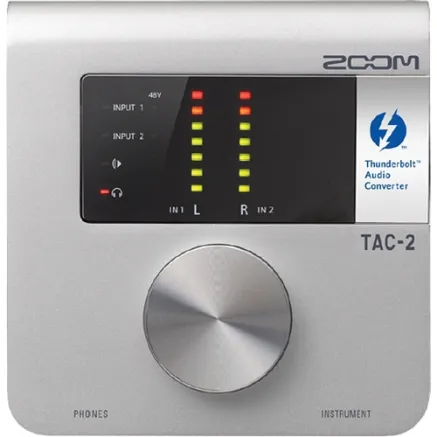

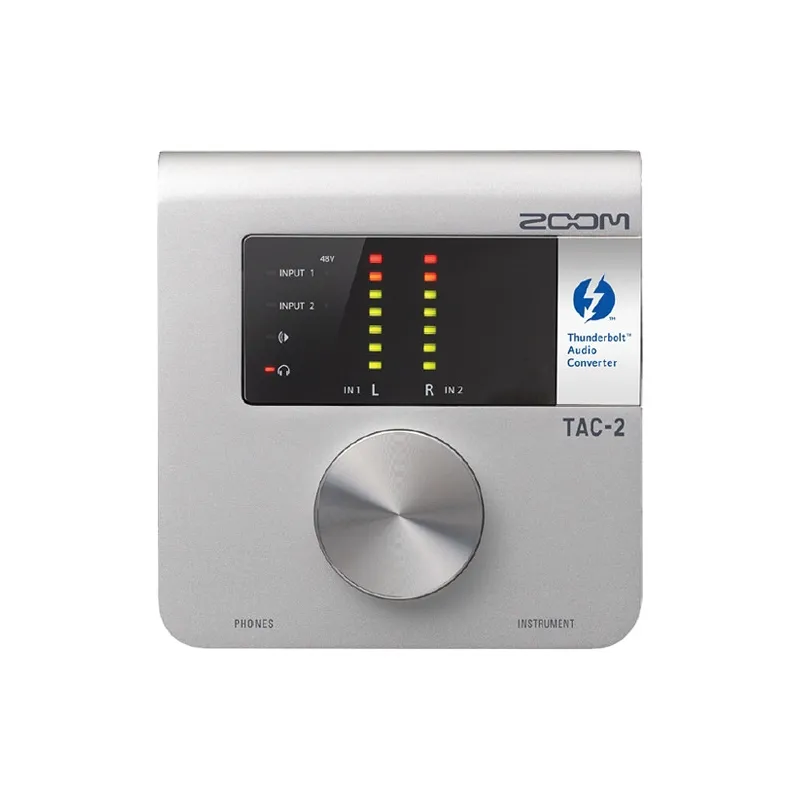

The Zoom TAC-2 is a compact 2-in, 2-out bus-powered Thunderbolt audio interface that allows for ultra-low latency and supports audio up to 24-bit/192kHz. It features two balanced XLR/TRS inputs with 48V phantom power, a Hi-Z input jack for electric guitars and basses and two balanced TRS outputs for connecting an amplifier or powered speakers.
The TAC-2 also features a Burr Brown PCM4202 analog-to-digital converter with mic preamps that provide up to +60dB of amplification. It uses the AKM AK4396 digital-to-analog converter to provide high-quality output to your monitors, and thanks to the Thunderbolt connectivity, provides lower latency than is possible with USB 3.0.
- •Works with all Thunderbolt-equipped Macintosh computers running OS X 10.6.8 or later
•Dedicated headphone jack with independent level control
•7-position LED metering for input, output and headphone volume
•4x up-sampling during A/D and D/A conversion for reduced noise and enhanced fidelity
•Asynchronous transfer system unaffected by computer jitter
•Simple user interface-all operations controlled by a single rotary knob
•Bus powered--no AC power required• Downloadable TAC-2 MixEfx software allows you to set mix parameters and add high-quality effects such as reverb and echo
•Rugged yet compact and lightweight
| Input Connectors | XLR / TRS combo jacks (XLR: 2 hot / TRS: TIP hot) |
| Input Gain | 0,9 to 60 dB (3 dB step) |
| Input Impedance | 3 kΩ |
| Maximum Input Level | +12 dBu (@ 0 dBFs) |
| Output Connectors | 1/4" TRS phone jack (balanced) |
| Maximum Output Level | +15 dBu (@ 0 dBFs) |
| Output Impedance | 100 Ω |
| Headphone Connector | 1/4" stereo phone jack 20 mW + 20 mW (into 32Ω load) |
| Maximum Headphone Output Level | +10 dBu (@ 0 dBFs) |
| AD/DA Conversion | Type: 4 x up-sampling Chipset: Burr Brown PCM4202 (A/D), AKM AK4396 (D/A) |
| Frequency Response | -2.0 dB: 20 Hz - 50 kHz @ 192kHz setting -1.0 dB: 20 Hz - 34 kHz @ 96kHz setting -0.4 dB: 20 Hz - 20 kHz @ 44.1kHz setting |
| Dynamic Range | A/D: 118dB typical (IHF-A) D/A: 120dB typical (IHF-A) |
| S/N Ratio | 125 dB (IHF-A) @ 60dB, 150 Ω input |
| Audio Channels | Recording: 2 Playback: 2 |
| Sampling Frequency | 92 kHz, 176.4 kHz, 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz |
| Bit Depth | 24-bit |
| Interface | Thunderbolt |
| Power | Thunderbolt Bus Power |
| Dimensions | 5.1 x 4.7 x 2.0" (129.5 x 120.0 x 51.3 mm) |
| Weight | 14.8 oz (420 g) |
