Zoom AMS-24 Audio Interface

ZOOM AMS-24 AUDIO INTERFACE - MUSIC AND STREAMING

AMS audio interfaces are designed for musicians who want to easily record music in their DAW or live stream it on platforms like YouTube and Twitch without the typical complications. With our innovative switcher, you can switch between Music and Streaming modes on the AMS-24 and AMS-44. Music mode offers advanced routing options for inputs and outputs when recording in your DAW. In Streaming mode, all inputs are combined into a single signal that you can use directly for streaming purposes without additional software.

CHARACTERISTIC FEATURES

• FOR RECORDING AND STREAMING MUSIC
• Input channels 2
• Type 2× XLR/TRS combo (Input 1 Hi-Z)
• Preamplifier 2
• Phantom Power 2
• Output Channels 4
• Type 2× TRS / 2× stereo 3.5 mm

FEATURES AND BENEFITS

• 2 INPUTS AND 4 OUTPUTS: The AMS-24 is the perfect solution for solo streams and sessions with multiple instruments. It offers two combined XLR/TRS inputs with low-noise Zoom preamplifiers. There are also two headphone outputs and two TRS outputs for connecting external monitors.

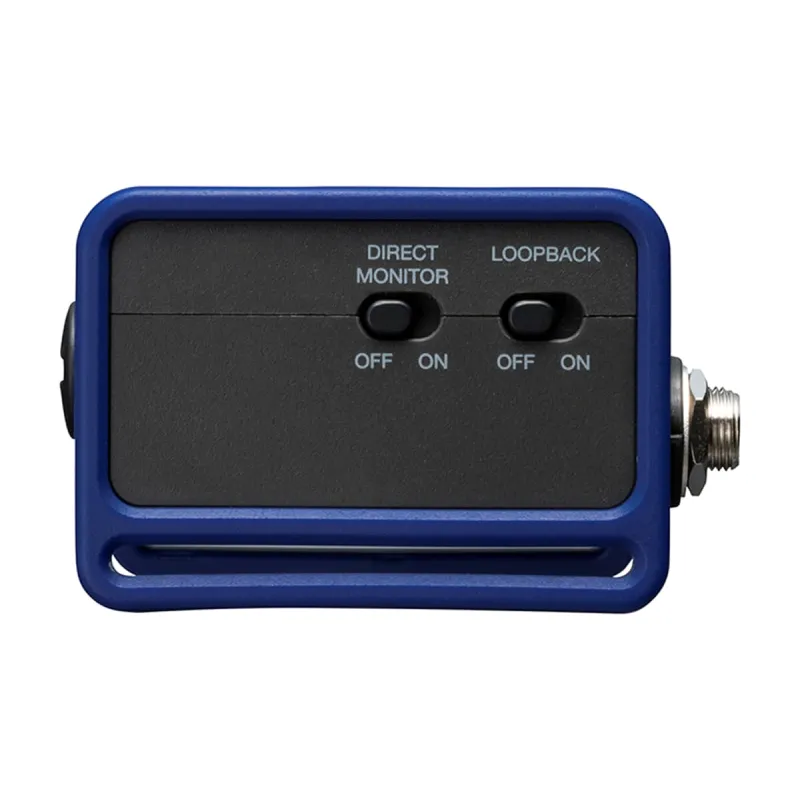

• LOOPBACK FUNCTION: Use the Loopback switch to combine the input signal with the playback signal from your computer and send it to the streaming software. This feature is ideal if you want to add backing music to your stream or combine live vocals with an instrument track.
• INTEGRATED MONITORING: Use the Direct Monitor switch to send the input signal directly to your headphones and simultaneously to your DAW or streaming software.
• SMALL SWITCH, BIG STREAMS: With the Music/Streaming switch you can switch between recording and streaming modes quite easily. In Music mode, you can control each input individually with its own gain control. In addition, you can send a different mix to each headphone output.

Specifications

• Number of microphone inputs: 2
• Number of instrument inputs: 1
• Number of analog outputs: 1-2
• Number of line inputs: 1-2
• Digital outputs: None
• Digital inputs: None
• Max. analog channels usable simultaneously: 2
• Max. sampling frequency: 96 kHz
• Interface: USB-C
• Max. resolution in bits: 24 bit
• EU/UK version: Yes
• MIDI I/O: No
