Roland RUBIX24 - 2-in/4-out USB audio interface with 24-bit/192kHz support
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Audio Production Studio |
| Connector | USB-C |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease

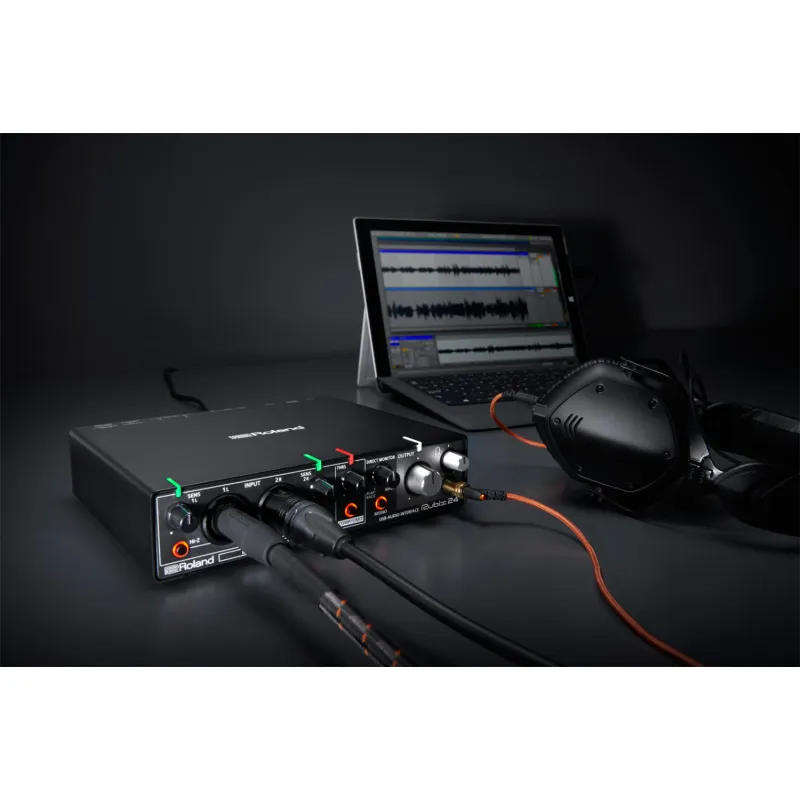

Studio-grade sound you can take anywhere
Nothing is more important than sound quality when it comes to audio interfaces. And you shouldn't have to sacrifice sound quality to have an affordable interface that you can take with you. Rubix24 sounds clean and detailed with transparent, low noise mic preamps and supports audio resolutions up to 24-bit/192kHz. It's made of durable metal, and a lot went into its compact, low-noise design. With all the places Rubix24 can go, you'll appreciate its extensive shielding and ground lifts, making sure you get good clean audio just about anywhere.
2 high quality mic preamps and 4 separate outputs

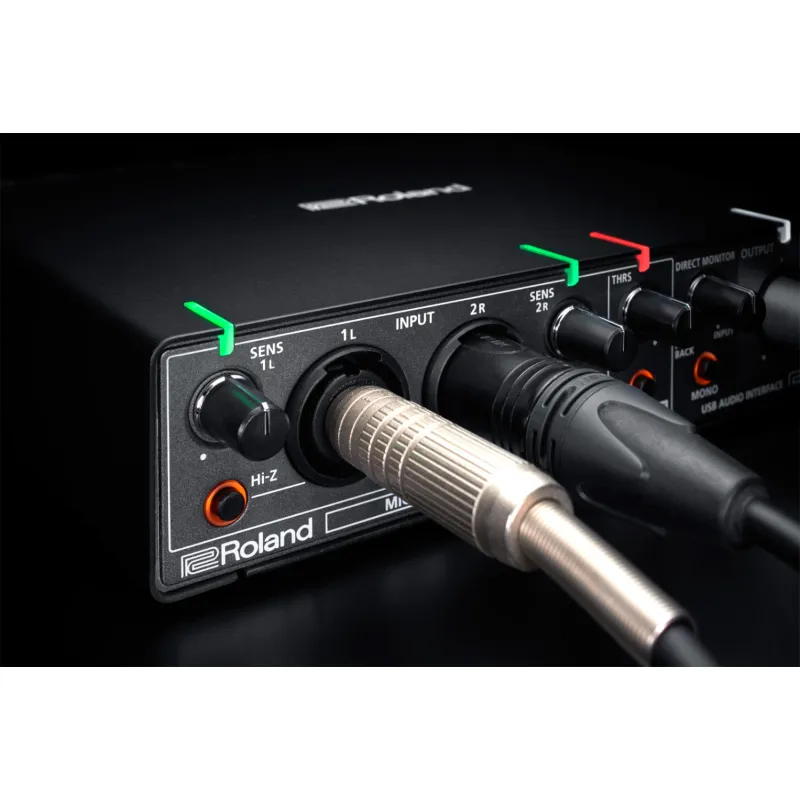

Rubix24's dual microphone preamps are designed for low noise and high definition. They sound clean and transparent with plenty of headroom for capturing all the impact and detail of whatever you're recording. And the flexible combo jacks mean you can easily connect a wide variety of sources without the need for adapters or special cables. Four individual outputs mean you can create more sophisticated routing and monitoring setups. This is useful for sending a click track to a performer, setting up a stage monitor, or routing audio to external gear.
Hardware compressor/limiter
Highly dynamic sources like vocalists and percussion instruments often need taming, especially when recording on location. Dynamics processors help ensure a good hot signal without clipping and causing unwanted distortion. Rubix24's built-on compressor/limiter provides peace of mind in the heat of a recording session.
Big, clear level indicators
Studios and stages can be dark places, and getting proper levels is critical. You want to focus on the performance, not on small, hard-to-see clip and level indicators from across the room. Rubix24 has highly visible indicators that are an integral part of its design. They clearly show if a channel has incoming signal, or if you're going to overload, even from a distance.
Built for Mac, PC and iPad
Rubix24 is ultra-portable and ultra-flexible. It has low latency class compliant drivers for Mac and PC, so it's simple to get up and running with smooth, reliable audio performance. And it also supports iPad giving you an extremely compact system for on-location recording, on-the-go production, or live performance. It even includes six months free of Roland Cloud Pro membership with full access to Zenbeats multi-platform music creation app, software synthesizers like ZENOLOGY Pro, TR-808, and D-50, and much more.
- 2-in/4-out USB audio interface
- 2 low-noise mic preamps with XLR combo jacks
- Hi-Z input for guitar and other high impedance sources
- Hardware compressor/limiter
- MIDI In/Out ports
- Extensively shielded, low-noise design
- Sturdy and compact metal construction
- Big, easy-to-read indicators show vital information
- Low latency, class compliant drivers
- Ground lifts for quiet operation in a variety of venues
Specifications
Audio Record/Playback Channels: Record 2, Playback 4
Signal Processing: 24-bit PC interface and AD/DA conversion
Sampling Frequency: 44.1/48/96/192 kHz
Interface: Hi-Speed USB, MIDI IN/OUT
Connectors:
INPUT (1L, 2R) XLR (phantom +48V, 6mA max), 1/4" TRS (balanced)
PHONES Stereo 1/4"
OUTPUT (1L, 2R, 3L, 4R) 1/4" TRS (impedance balanced)
MIDI IN/OUT, USB Type B, DC 5V (USB micro B)
Controllers:
SENS 1L/2R, Hi-Z, 48V, THRS, COMP/LIMIT, DIRECT MONITOR, MONO, OUTPUT, PHONES, POWER SOURCE, LOOPBACK, COMP/LIMIT TYPE, GROUND LIFT, PHONES SOURCE
Indicators:
Level (1L/2R), COMP/LIMIT, POWER, Hi-Z, 48V
Audio Characteristics:
Nominal Input XLR -60 to -12 dBu, TRS -44 to +4 dBu
Max Input XLR +2 dBu, TRS +18 dBu
Nominal Output -6 dBu, Max Output +8 dBu
PHONES Output 20 mW + 20 mW (47 load)
Headroom 14 dB
Input Impedance XLR 4k, TRS 15k, Hi-Z (1L) 500k
Output Impedance OUTPUT 2k, PHONES 47
Residual Noise -94 dBu typ.
Dynamic Range AD 104 dB typ., DA 109 dB typ.
Power:
Via USB or DC 5V, Current Draw 500 mA
OS Compatibility:
Windows 7/8/8.1/10, macOS X 10.10+, iOS 9+
(Compatibility may vary depending on system setup.)
Dimensions & Weight:
183 x 165 x 46 mm / 7-3/16 x 6-1/2 x 1-13/16 in
Weight 1.2 kg / 2 lbs 11 oz
Accessories:
Setup Guide, Safety Leaflet, USB Cable
