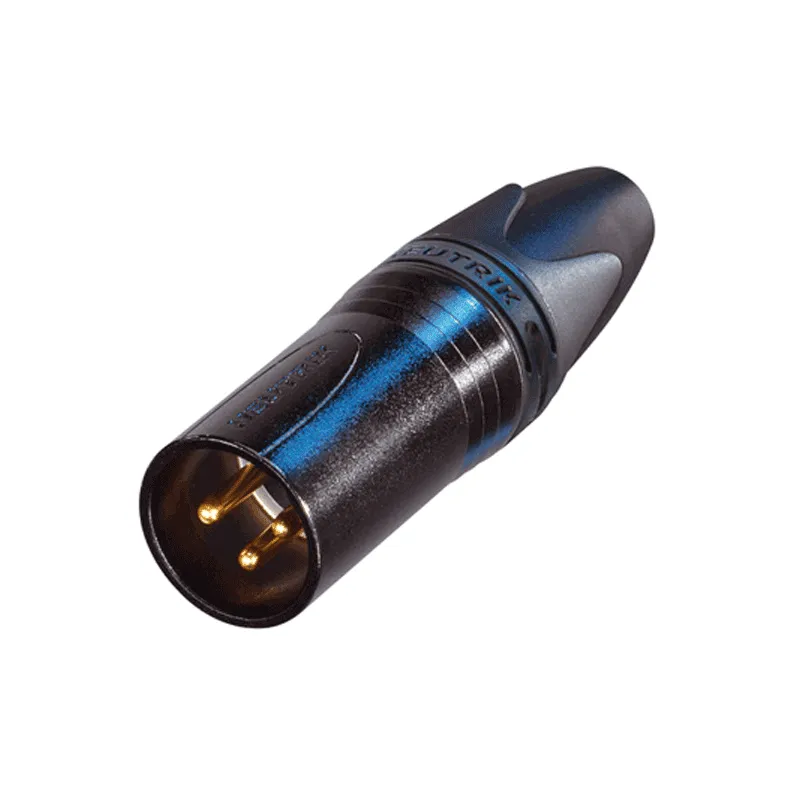

Infinitek L-2T2S XLR(M) to 6.3mm TRS Jack Microphone Cable 3m

Canare XLR-M to 6.3mm TRS Jack Cable

This premium symmetrical audio cable is assembled from Canare L-2T2S high-quality two-wire microphone cable featuring a 6.0 mm diameter sheath.

• Copper braided shielding for excellent noise rejection
• Flexible even in extremely cold weather conditions
• Cross-linked polyethylene (PE) insulation
• Minimized handling noise
• Suppression of electromagnetic interference (EMI) and radio frequency interference (RFI)

Canare L-2T2S Cable Technical Specifications

• Standard manufactured lengths: 100 m / 200 m
• Cable weight: 4.6 kg per 100 m
• Sheath diameter (overall): 6.0 mm
• AWG: 23
• Outer insulation material and thickness: PVC, 1.00 mm
• Breaking point temperature: -49 °C
• Number and color of conductors: 2 (1 x blue, 1 x white)
• Number and diameter of cores per conductor: 60 strands of 0.08 mm diameter
• Shielding factor: >94%
• Conductor resistance: <6.4 Ω per 100 m
• Shielding resistance: <3.1 Ω per 100 m
• Capacitance between blue and white conductors: 70 pF/m
• Capacitance between conductors and shielding: 106 pF/m
• Impedance: 88 Ω

Neutrik XX-B Connector Technical Specifications

• Capacitance: ≤ 4 pF
• Contact resistance: ≤ 3 mΩ
• Rated voltage (1 min): 1.5 kV DC
• Insulation resistance: > 10 GΩ
• Rated current per contact: 16 A
• Rated voltage: 50 V
• Cable diameter compatibility: 3.5 - 8.0 mm
• Force required to connect/disconnect: ≤ 20 N
• Connector lifetime: > 1000 connection cycles
• Conductor max size: 2.5 mm², max 14 AWG
• Soldering type connectors
• Cable cap material: Polyurethane
• Contact surface treatment: 0.2 µm gold layer on 2 µm nickel
• Contact material: Bronze (CuSn8)
• Connector body: Zinc diecast (ZnAl4Cu1) with black chrome finish
• Lock mechanism: Zinc diecast with spring steel (Ck 67)
• Connector insulator: Polyamide (PA 6.6 30% glass reinforced)
