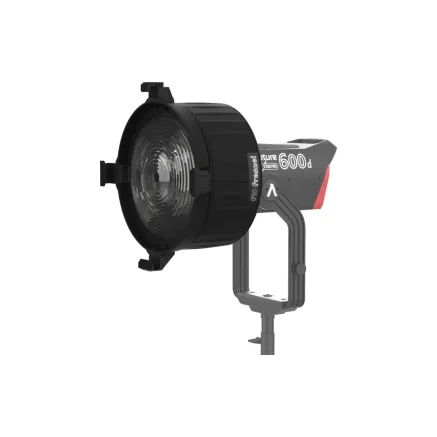

Aputure F10 Fresnel Lens with Bowens Mount
The Aputure F10 Fresnel lens is the first modifier of its kind on the market featuring a large 25 cm (9.84 inch) diameter and equipped with the widely used Bowens mount, a standard in film and photography lighting. This design allows for easy installation on many popular lights without additional adapters.
Enhanced LED Light Performance
Utilizing a unique combination of two true glass lenses, the F10 Fresnel lens increases the output efficiency of LED lamps by up to 340%, significantly boosting brightness and improving light quality. This performance rivals top-tier Hollywood lighting fixtures such as the Mole Richardson 5K Tungsten Par and ARRI Studio 2K.
When paired with the flagship Aputure LS 600d Pro 600-watt COB LED light, the F10 Fresnel lens delivers over 11,000 lux at 3 meters with diffused light and nearly 30,000 lux when focused, outperforming many more powerful HMI lamps.
Adjustable Light Beam Control
The lens features an ergonomic adjustment ring that allows precise control of the light beam angle from 15° (focused) to 45° (diffused). This enables quick and intuitive modification of beam dispersion to suit various scene requirements without extra dials or handles.
Natural Sunlight Rendering
The F10 Fresnel lens softens shadows and produces organic light characteristics, emulating natural daylight and the soft rays of the sun, enhancing the realism and atmosphere of your scenes.
Optimized Heat Dissipation
The lens housing includes carefully designed ergonomic vents that effectively dissipate heat generated by the lamp while preventing light leakage, ensuring precise light control essential for professional film sets.
Accessory Compatibility and Convenience
- Equipped with a special "drop-in" slot at the front for quick installation of additional modifiers such as grids or gates.
- Compatible with Aputure F10 Barn Doors and 330 mm diameter metal grids (e.g., ARRI Scrims) for enhanced beam shaping and control. (Barn Doors sold separately.)
Included Transport Bag
A sturdy carrying bag with sponge padding is included to protect the lens during transport and storage, ensuring the equipment remains safe and ready for use on set.
Technical Specifications
- Model: Aputure F10 Fresnel Lens
- Lens Diameter: 25 cm (9.84 inches)
- Accessory Slot Diameter: 33.29 cm
- Mounting: Bowens
- Light Beam Amplification (with Aputure LS 600d Pro): 340%
- Dimensions (folded, 45° diffused light): 34.6 x 34.5 x 17.2 cm
- Dimensions (unfolded, 15° focused light): 34.6 x 34.5 x 25.0 cm
- Transport Bag Dimensions: Diameter 39 cm x 19 cm
- Weight: Lens 3850 g, Carrying Bag 1800 g
Photometric Data (with LS 600d Pro and F10 Fresnel Lens)
- At 1 m distance: 89,200 lux (45° diffused), 224,200 lux (15° focused)
- At 3 m distance: 11,400 lux (45° diffused), 29,300 lux (15° focused)
- At 5 m distance: 4,260 lux (45° diffused), 10,580 lux (15° focused)
Kit Contents
- Aputure F10 Fresnel Lens
- Transport Bag
Related Products

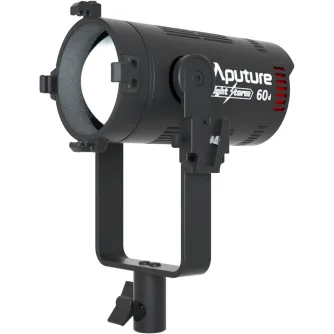

Aputure LS 60D adjustable focusing IP54 light in Daylight beam angle 15-45

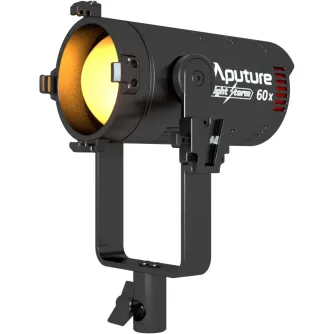

Aputure LS 60X adjustable focusing IP54 light in Bi-Color beam angle 15-45
