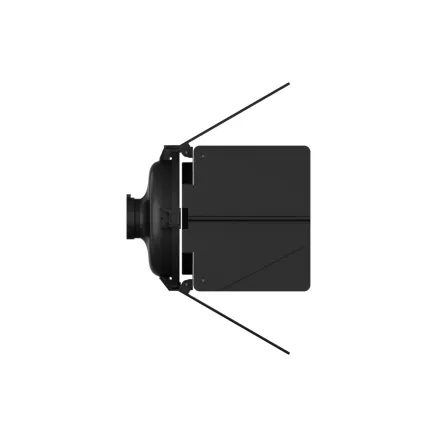

Aputure F10 Barn Doors 10-inch Bowens-Mount with Black Reflector Dish

Aputure F10 Barn Doors Overview

The Aputure F10 Barn Doors is a universal light modifier designed specifically for the F10 Fresnel lens. It features a drop-in socket for quick installation within seconds. The included Bowens mount canopy allows compatibility with hundreds of lighting devices and accessories. Constructed from black powder-coated aluminum, it effectively prevents unwanted glare. The barn doors have a unique 8-wing design, enabling precise control over the shape and size of the light beam. Additionally, the accessory includes a special aluminum safety cable to enhance security when working with light modifiers.

Main Product Features

• Designed to work with the Aputure F10 Fresnel lens.
• Allows limiting and directing the light beam.
• Two installation methods: drop-in socket or Bowens mount.
• Bowens mount canopy enables connection with numerous lights and accessories.
• Canopy reduces lamp angle for sharper shadows.
• Unique 8-wing construction for precise beam shaping.
• Black powder-coated aluminum prevents glare.
• Includes metal safety cable for secure attachment.

Perfect Complement to the F10 Fresnel Lens

The F10 Barn Doors perfectly complement the F10 Fresnel lens, the first of its kind with a 25 cm diameter and Bowens mount. The drop-in socket allows installation in seconds. The F10 Fresnel lens uses two unique lenses to increase LED lamp efficiency by up to 340%. The beam spread or focus is adjustable from 15 to 45 degrees via an ergonomic ring. The barn doors complete this setup by providing full control over beam shape and size.

Canopy with Bowens Mount

Though designed for the F10 Fresnel lens, the barn doors include a Bowens mount canopy for broad compatibility. This allows mounting on Aputure models such as LS 600d Pro, LS C300d II, LS 300x, and LS C120d II, as well as hundreds of third-party products. The black canopy reduces the LED light stream size, producing sharper shadows and preventing glare.

Unique Design

The F10 Barn Doors feature an innovative 8-wing folding design, offering enhanced light control beyond traditional barn doors. Additional wings help eliminate unwanted light spill and allow precise beam adjustment tailored to the frame's needs.

Attention to Detail and Durability

Constructed from high-quality powder-coated aluminum, the barn doors resist paint chipping and withstand rough handling on set. The included aluminum safety cable can be threaded through a mounting hole and secured to the lamp or tripod, minimizing risk of damage from accidental drops or improper installation.

Specifications

• Model: Aputure F10 Barn Doors
• Mounting System: Bowens
• Color: Black
• Dimensions:
  • Gate Socket Diameter: 332.88 mm
  • Canopy-Installed Gates (Closed): 406.76 x 344 x 173.15 mm
  • Canopy-Installed Gates (Open): 898 x 898 x 158.3 mm
  • Inlet Without Canopy (Closed): 406.76 x 344 x 74.85 mm
  • Inlet Without Canopy (Open): 898 x 898 x 60 mm
  • Canopy: 346 x 340.46 x 118.8 mm
• Weight:
  • Wing: 2640 g
  • Canopy: 1060 g

Kit Contents

• Aputure F10 Barn Doors
• Black reflector dish with Bowens mount
• Metal safety cable
