Compact and powerful live switcher with 8 HDMI inputs, ISO recording, Thunderbolt, 10G Ethernet, and advanced DaVinci Resolve integration for broadcast studios.

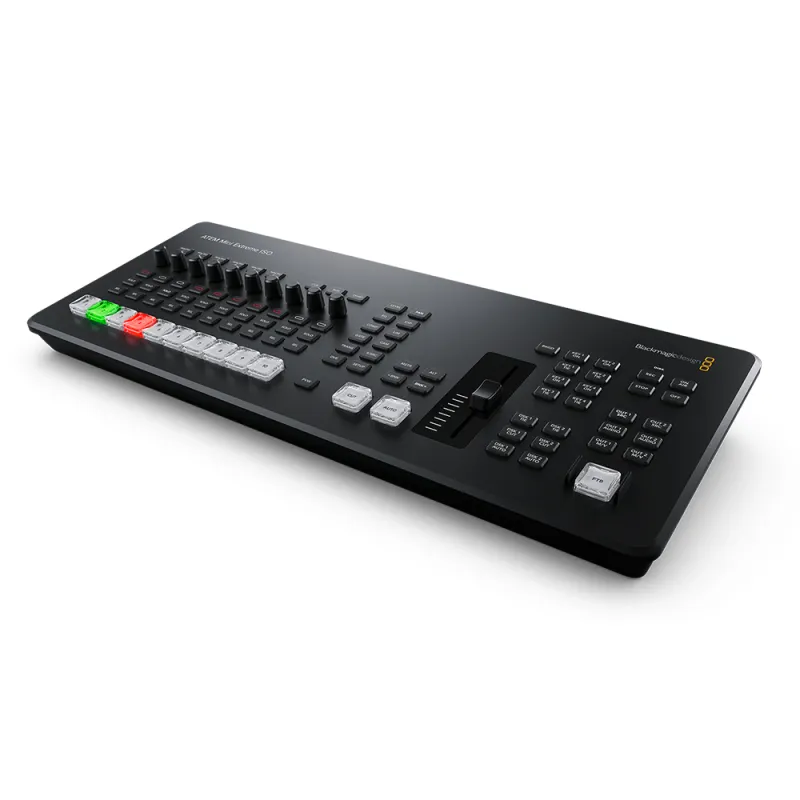

Blackmagic Design ATEM Mini Extreme ISO G2 Live Switcher SWATEMMINICEXTISOG2
Product ID: 16736
SKU: 16736
Model: SWATEMMINICEXTISOG2
Ean: 9338716009965
Condition: New product
Manufacturer: Blackmagic Design
Discover related products
Discover related products
AI ASSISTANT CHAT
This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.
Or ask about:
What are the features? Is this in stock? Actual discounts & offers? Product reviews?
| Type of Product | Video Mixer |
| Connector | HDMI |
| Connector | XLR |
| Connector | Thunderbolt |
| Connector | USB |
How to buy goods on lease?
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Product details
Powerful Compact Live Switcher for Broadcast Studios
The Blackmagic Design ATEM Mini Extreme ISO G2 is designed for creating high-end broadcast studios with professional features packed into a compact form factor. Expected availability is July 2025.
Key Features
- 8 HDMI inputs with 10-bit HD switchable video and 2-channel embedded audio
- 3 independent HDMI program outputs
- Built-in streaming engine and multi-view support
- Thunderbolt connectivity for live video capture, playback, and real-time effects
- ISO recording of all 8 video inputs simultaneously
- CFexpress card access over 10G Ethernet network
- Balanced XLR audio inputs with phantom power, MADI input, and Fairlight audio status display
- Headphone output for audio monitoring
- Media pool with 200 frames of animation
Advanced Workflow Integration
- Thunderbolt enables live video capture and playback, compatible with DaVinci Resolve for live color grading and replay editing
- DaVinci Resolve integration allows switching to playback of all 8 ISO files for multi-camera replay with optical slow motion
- 10G Ethernet port functions as a shared network drive for internal CFexpress or external USB drives, enabling collaborative editing, color correction, VFX, and audio post-production
- Optional Blackmagic Cloud sync for sharing recorded media globally

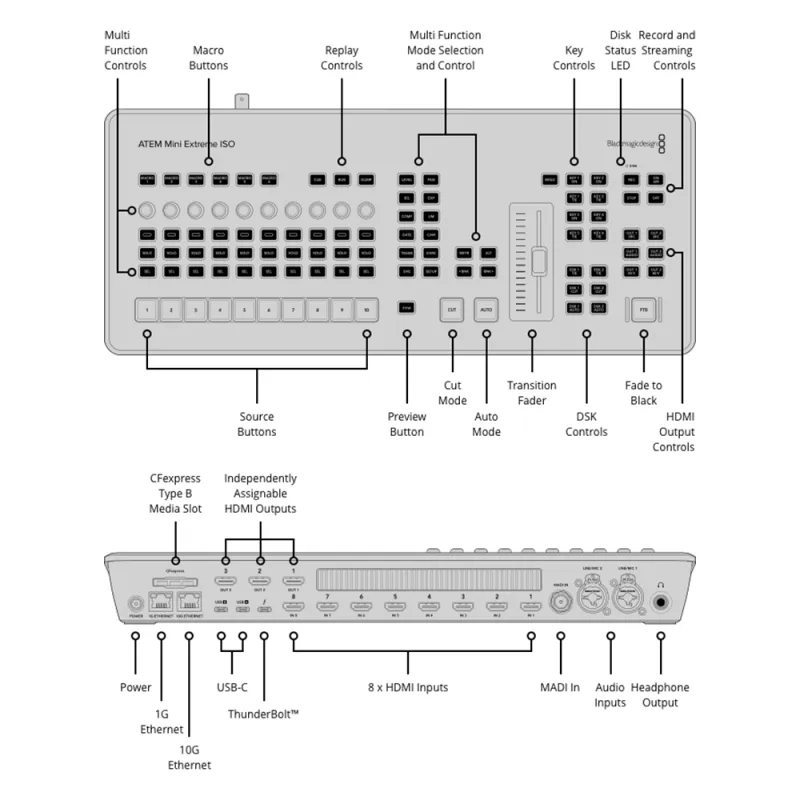

Control and Connectivity

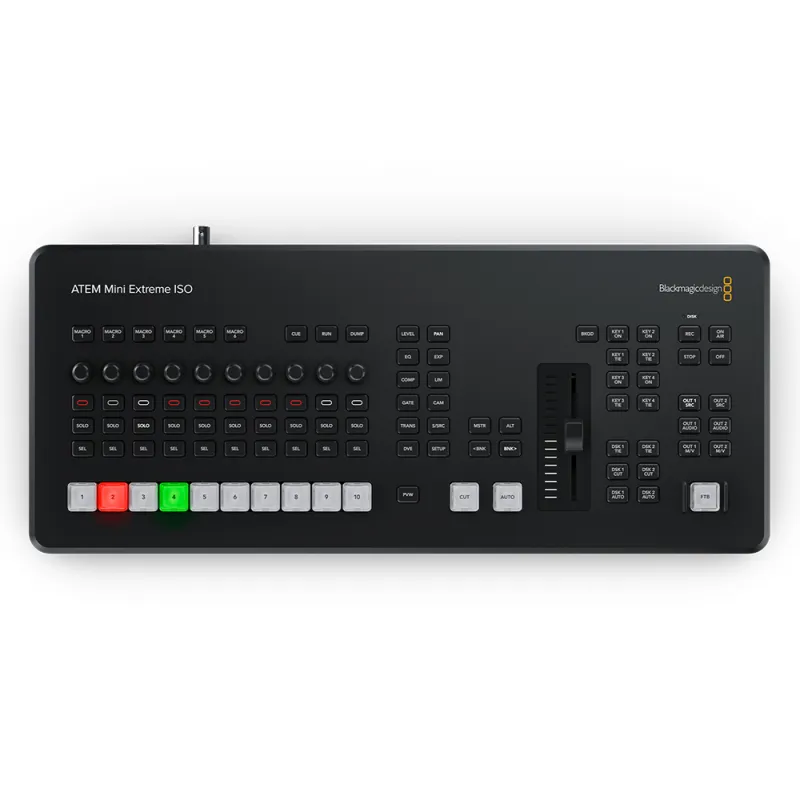

- Front panel includes source selection buttons, transition triggers, video effects controls, and a manual fader lever
- Audio mixing section with live metering and controls
- Dedicated buttons for recording, streaming, and output switching (program, preview, multi-view, Fairlight status)
- Expandable audio inputs via ATEM Microphone Converter connected through MADI port; supports daisy chaining and phantom power
Technical Specifications
- Total video inputs: 9 (8 HDMI + 1 additional)
- Total video outputs: 4
- Total AUX outputs: 4
- SDI speeds supported: 1.5G, 3G
- HDMI video inputs: 8x HDMI Type A, 10-bit HD switchable, 2-channel embedded audio
- HDMI video outputs: 3
- HDMI program outputs: 3
- Audio inputs: 2x XLR combo with phantom power, 1x BNC 32-channel MADI digital audio input
- Audio outputs: 1x 6.35mm headphone jack
- Timecode connection: None
- Reference input: None
- Video re-sync: On all 8 HDMI inputs and remote sources
- Frame rate and format conversion: On all 8 HDMI inputs and remote sources
- Webcam output: 2x USB-C supporting 720p or 1080p at program frame rate
- MultiView outputs: 1x HDMI, 1x Webcam
- Control panel connection: Ethernet (direct or network)
- Internal timecode generator: Yes
- Tally output: Via Blackmagic HDMI and remote cameras
- Ethernet ports: 1x 1G Ethernet for streaming, control, internet; 1x 10G Ethernet for recording and storage access
- Computer interfaces: 2x USB Type-C 3.1 Gen 1 for external disk recording, webcam output, software control, updates, panel connection; 1x Thunderbolt for fill/key video output, video input, Ethernet storage access, and power
Package Contents
- ATEM Mini Extreme ISO G2 switcher
- External 12V DC power adapter
