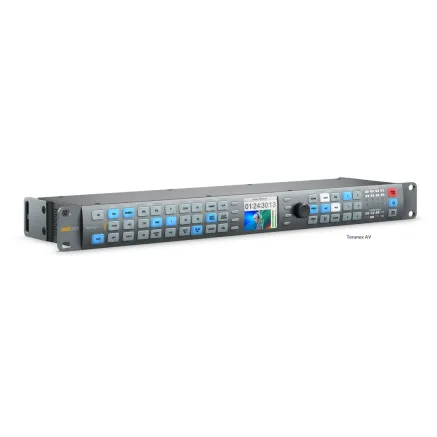

Blackmagic Teranex Express

High-Quality Real-Time Broadcast Conversion

The Blackmagic Teranex Express is the world's first real-time broadcast up and down converter supporting SD, HD, and Ultra HD formats, featuring advanced 12G-SDI technology. It utilizes patented Teranex algorithms to deliver visually transparent quality conversions, widely trusted by major broadcasters and studios globally. This model offers 178 different SD, HD, and Ultra HD up and down conversions in full 10-bit quality, including audio, closed captions, timecode, and more.

Design and User Interface

Teranex Express maintains the classic Teranex front panel layout, facilitating easy transition for existing users. It includes a built-in LCD monitor for menu navigation and live video preview of source format and frame rate, eliminating the need for an external monitor. The unit features an elegant machined metal front panel, compact 1RU rack size, and an integrated international power supply, combining premium internal processing with a robust exterior design.

12G-SDI Connectivity

Teranex Express is the first broadcast converter to incorporate multi-rate 12G-SDI connections, supporting 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, and SD-SDI. This compatibility covers a broad range of SD, HD, and Ultra HD equipment. The 12G-SDI connections transfer data at up to 12 gigabits per second, enabling progressive Ultra HD video at up to 60 frames per second. This ensures future-proofing for emerging video formats.

PixelMotion De-Interlacing

Featuring Teranex's proprietary PixelMotion de-interlacing algorithms, the device converts interlaced material into perfect progressive frames. Real-time processing adjusts the aperture on a pixel-by-pixel basis, preserving vertical resolution and source detail. Combined with multidirectional diagonal filters, it eliminates jaggies for sharp, well-defined edges.

Audio and Metadata Support

• Supports conversion of up to 16 audio channels with full audio channel remapping.
• Maintains timecode and closed caption VANC data during conversions.
• Compatible with Dolby® AC-3 and Dolby® E encoded audio, allowing pass-through without decoding or re-encoding during same frame rate conversions.
• Subtitles, audio, and timecode remain perfectly synchronized with video.

Key Features

• Extremely high-quality up, down, and cross conversions with Teranex processing.
• 12G-SDI and dual-link 6G-SDI inputs and outputs, upgradable to optical fiber SDI.
• Full conversion of timecode and subtitles.
• Classic Teranex front panel for ease of use and integration.
• Reference input for built-in frame synchronization.
• Built-in international power supply supporting 100-240V AC.

Connections

• SDI Video Inputs: 1x BNC (IN A) supports 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching; 1x BNC (IN B) supports 10-bit SD, HD, 2K, 3G HD, and 6G Ultra HD auto switching, usable as dual link input for 4:2:2 3G or 6G UHD.
• SDI Video Input Loops: 1x BNC (IN A Loop) and 1x BNC (IN B Loop), reclocked with full format auto switching.
• SDI Video Outputs: 1x BNC (OUT A) and 1x BNC (OUT B) with 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching; OUT B usable as dual link output.
• Quad SDI Video Outputs: SMPTE 435-1 Quad HD Split (square division method) using SDI Out A and B plus reconfigured input loops.
• Optical Fiber Video Inputs/Outputs: 1x each, 10-bit SD, HD, 3G HD, 2K, Ultra HD auto switching; outputs unavailable in Dual Link or Quad Link modes.
• Audio Inputs/Outputs: 16 channels over SDI and optical fiber.
• Optional Optical Fiber Connection: 1x SMPTE optical fiber SFP socket.
• Dolby® Support: AC-3 pass-through in all conversions; Dolby® E pass-through except during video frame rate conversions.
• Timecode: VITC/ATC support for inputs and outputs; no LTC support.
• Reference Input: 1x BNC for Black Burst or Tri-level sync.
• Computer Interface: USB 2.0 mini B port for software updates; RJ45 10/100 Ethernet for remote control and configuration.
• Processor Interface: Illuminated pushbuttons, status LEDs, and LCD with onscreen menus.

Supported Standards

• SD Video: 525i59.94 NTSC, 625i50 PAL
• HD Video (1.5G-SDI): 720p50/59.94/60; 1080p23.98/24/25/29.97/30; 1080PsF23.98/24/25/29.97/30; 1080i50/59.94/60
• HD Video (3G-SDI): 1080p50/59.94/60 levels A and B
• 2K Video: 2K DCI 23.98p/24p and PsF variants
• Ultra HD Video: 2160p23.98/24/25/29.97/30/50/59.94/60
• SDI Compliance: SMPTE 259M, 292M, 296M, 372M, 425M
• SDI Metadata: VITC/ATC, SMPTE 12M, WSS, RP186, AFD, SMPTE 2016, closed captioning 608/708, SMPTE 334M
• Audio Sampling: 48 kHz, 24-bit
• Video Sampling: 4:2:2 SDI
• Color Precision: 10-bit
• Color Space: REC 601, REC 709

Video Processing and Conversion

• Real-time variable and fixed aspect ratio conversions.
• Noise reduction, cadence detection with insertion/removal, scene cut detection, color correction, and proc amp control.
• Real-time up conversion, down conversion, cross conversion, and SD/HD/UHD standards conversion.
• Hardware-based real-time colorspace conversion.
• Test patterns including SMPTE 75% bars, full field color bars, convergence grid, multiburst, and black.

Software and Compatibility

• Teranex Setup software included for Windows 8.1, Windows 10, and Mac OS for configuration and control.
• Internal software upgrades via USB Type-B 2.0 port.
• Supported operating systems: Mac OS 10.15 Catalina, Mac OS 11.1 Big Sur or later, Windows 10 64-bit.

Physical and Environmental Specifications

• Form factor: 1 rack unit (1RU), less than 13 cm (5 inches) deep.
• Power supply: Built-in international AC power supply with IEC C14 inlet, supporting 100-240V, 50-60Hz.
• Typical power consumption: 42 watts.
• Operating temperature: 0° to 40° C.
• Storage temperature: -20° to 45° C.
• Relative humidity: 0% to 90% non-condensing.

Included Items

• Blackmagic Teranex Express unit
• SD card with software and manual
• 2 bumper guards with 4 M4 screws

Warranty

12-month limited manufacturer's warranty.
