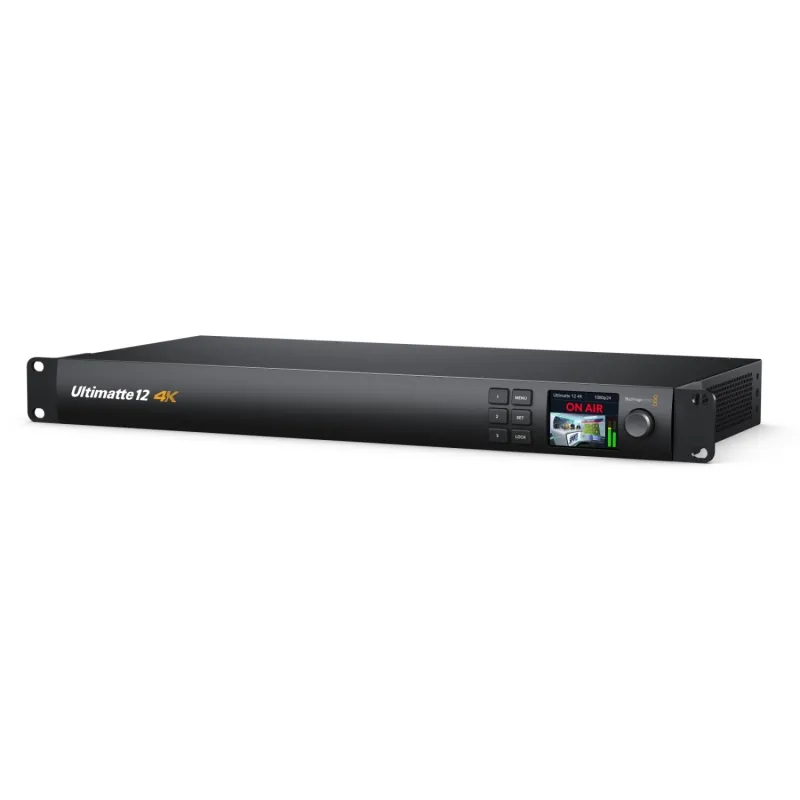

Blackmagic Design Ultimatte 12 4K Green Screen Processor
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Video Mixer |
| Video Interface | 12G-SDI |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Key Features and Improvements
- New 2.2" LCD for source monitoring and hardware menu access
- Hardware menu includes IP settings and input status for reference and video connectivity
- Buttons and rotary dial for intuitive menu navigation and selection
- Detachable rack ears and reduced depth of approximately 222 mm
- Lower power consumption of 45W compared to previous 72W model
Industry-Leading Green/Blue Screen Keying
Ultimatte 12 4K is a leader in real-time green and blue screen background removal, widely used in TV news for seamless integration of presenters into virtual studios. It features advanced compositing processing with new algorithms, high color accuracy, improved mask edge processing, and enhanced color separation to suppress background color bleed into the foreground.
12G-SDI Interface
Supports HD and Ultra HD workflows with 12G-SDI multi-rate compatibility, ensuring excellent image quality and compatibility with professional SD, HD, and Ultra HD equipment.
Versatile Usage
Ideal for fixed cameras, static backgrounds, and automated virtual studio systems. Enables cinematic quality presentations for news, weather, sports, and pre-visualization in TV and film production by allowing actors and directors to see virtual sets and props during filming.
Affordability and Multi-Camera Support
Ultimatte 12 is cost-effective, allowing multiple cameras to be equipped with high-quality keying modules. It addresses color uniformity variations across cameras by using innovative technologies, making it suitable for live news, weather, sports, and virtual studio productions.
Image Quality and Processing
- New image processing algorithms with high internal color accuracy
- Automatic mask creation and parallel processing for high performance
- Smooth color gradients and precise edges, including challenging hair details
- Advanced color information processing reduces color overlay and tinting issues
- Produces sharp, photorealistic images with bold colors even in difficult scenes
Augmented Reality Support
Innovative "realistic" layer mode enables integration of semi-transparent virtual objects with correct masking and preserved colors, producing realistic scene compositions for augmented reality applications.
Automatic Adjustment
One-touch automatic adjustment of over 100 keying parameters simplifies setup, speeding up production while requiring proper scene lighting and camera white balance.
Remote Control
Compatible with Ultimatte Smart Remote 4, a touchscreen remote with Ethernet interface supporting up to 8 units without a router or hub. Includes direct control buttons and touchscreen for full function access. Also supports custom remote control via text-based protocol and Telnet interface.
Technical Specifications
Connections
- 7 SDI video inputs plus monitor input
- 9 SDI video outputs
- 7 SDI loop outputs (reclocked SD, HD, Ultra HD)
- SDI rates: 270 Mb/s, 1.5G, 3G, 6G, 12G multi-rate support
- Reference input and loop output: Tri-Sync or Black Burst
- Ethernet control panel connection (10/100 Mbps) for direct connection to Smart Remote 4
- GPIO: 5 GPI inputs, 1 GPI output, 1 Tally input
Video Standards
- SD: 625i50 PAL, 525i59.94 NTSC
- HD: 720p50/59.94/60; 1080p23.98/24/25/29.97/30/50/59.94/60; 1080PsF23.98/24/25/29.97/30; 1080i50/59.94/60
- Ultra HD: 2160p23.98/24/25/29.97/30/50/59.94/60
- SDI Compliance: SMPTE 259, 292, 424, 2081, 2082
- Video Sampling: 4:2:2
- Color Precision: 10-bit
- Color Space: REC 601, REC 709, REC 2020
Software and Control
- Software updates via USB-C connection to Mac or Windows computers
- IP address configuration via Ultimatte setup utility over USB
- Control panel required: Ultimatte Smart Remote 4
- Custom control supported via Ethernet protocol documented in the Ultimatte manual
Power and Physical
- Power supply: Dual internal 100-240V AC, 50/60Hz
- Power usage: 100W
- 1 rack unit size
Environmental
- Operating temperature: 0° to 40°C
- Storage temperature: -20° to 60°C
- Relative humidity: 0% to 90% non-condensing
Industry Recognition
Ultimatte technology has been a leader in keying for over 40 years, earning prestigious awards including an Emmy and an Academy Award. It is trusted by broadcasters such as Sky News for virtual studio production with advanced edge detection and color correction.
