Ikan Cage Kit for Panasonic GH4 ELE-GH4-C

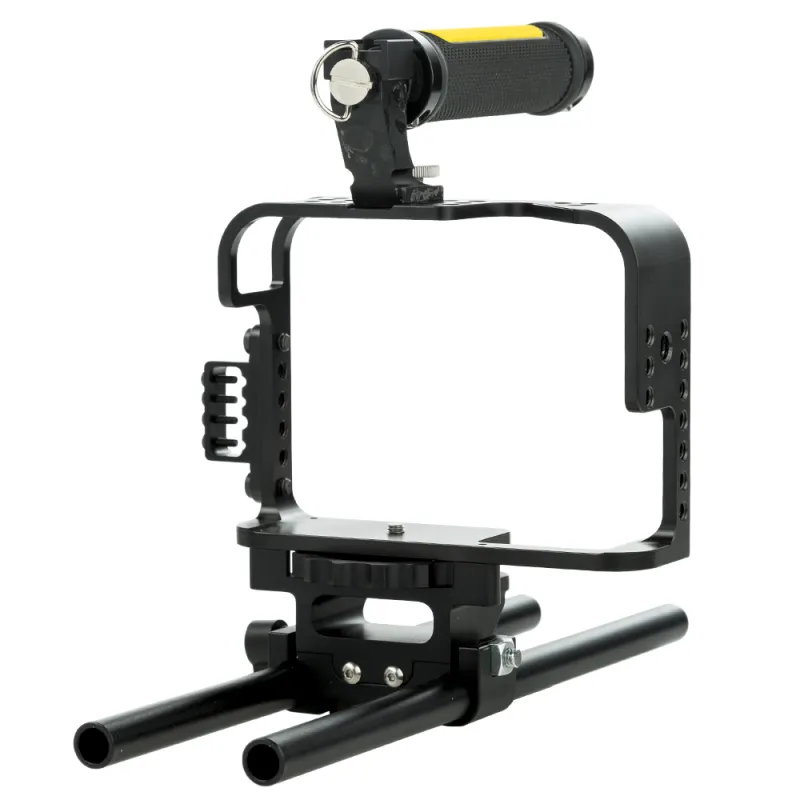

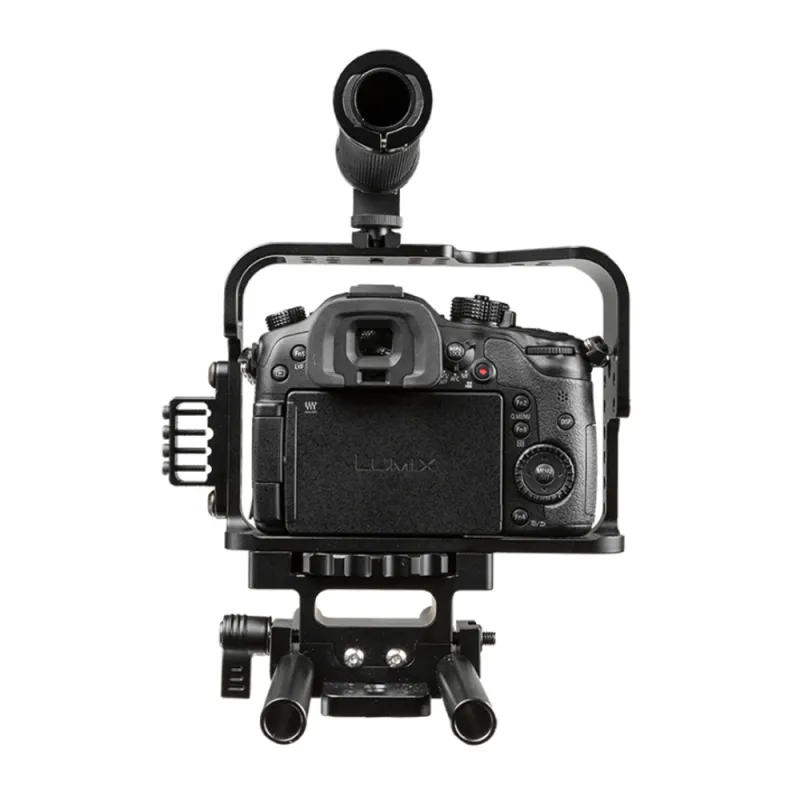

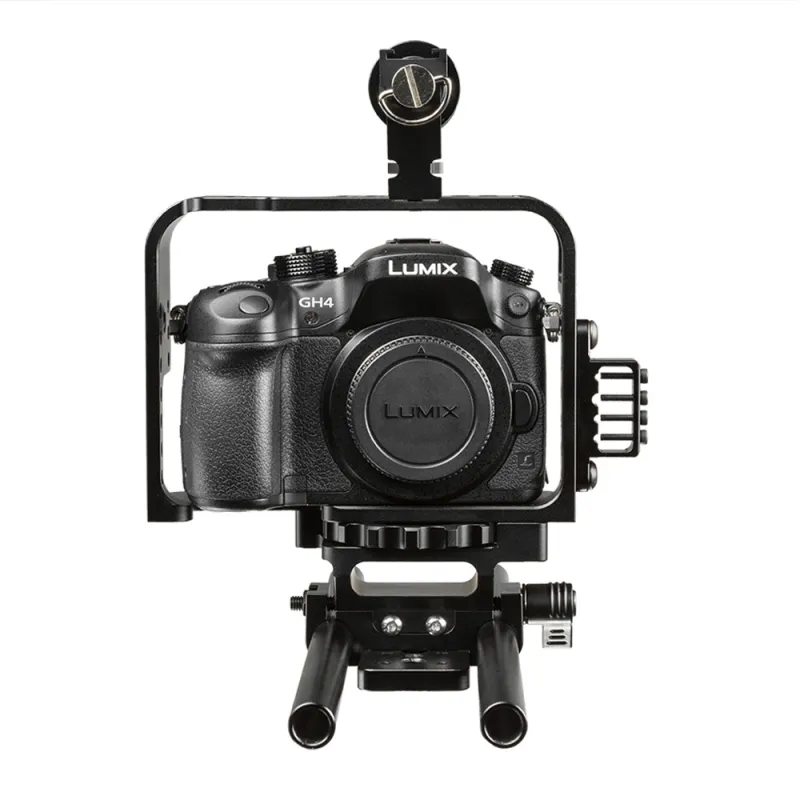

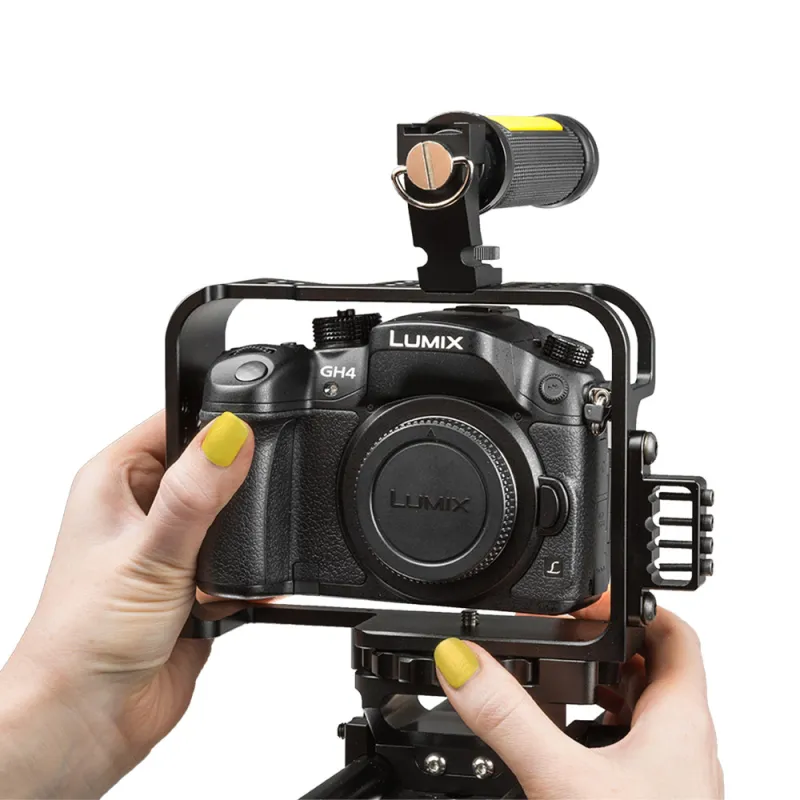

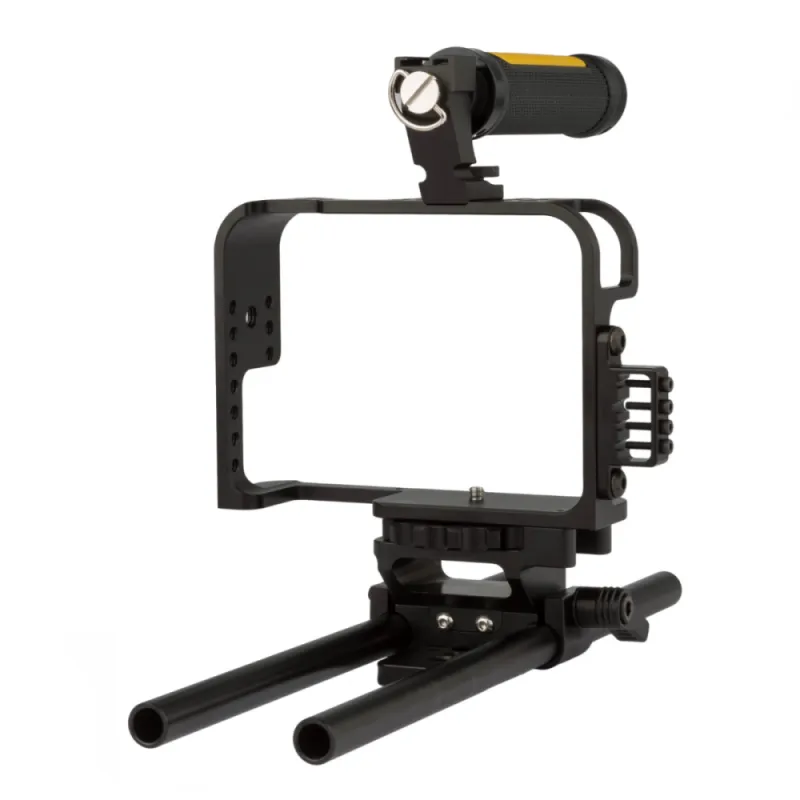

Ikan Cage Kit for Panasonic GH4 (ELE-GH4-C)

The ELE-GH4-C is a smart, ready-to-use cage solution designed specifically for the Panasonic GH4 camera. Its sleek, precision-machined aluminum alloy single-piece cage offers a tool-less 1/4-20 camera mounting system, enabling quick assembly without tools and providing easy access to all ports and buttons.

Features

• Tool-less 1/4-20 camera mounting
• Form-fitted design tailored for Panasonic GH4
• Precision machined aluminum alloy single-piece cage
• Cable lock system for secure cable management
• Reversible top handle with cold shoe mount

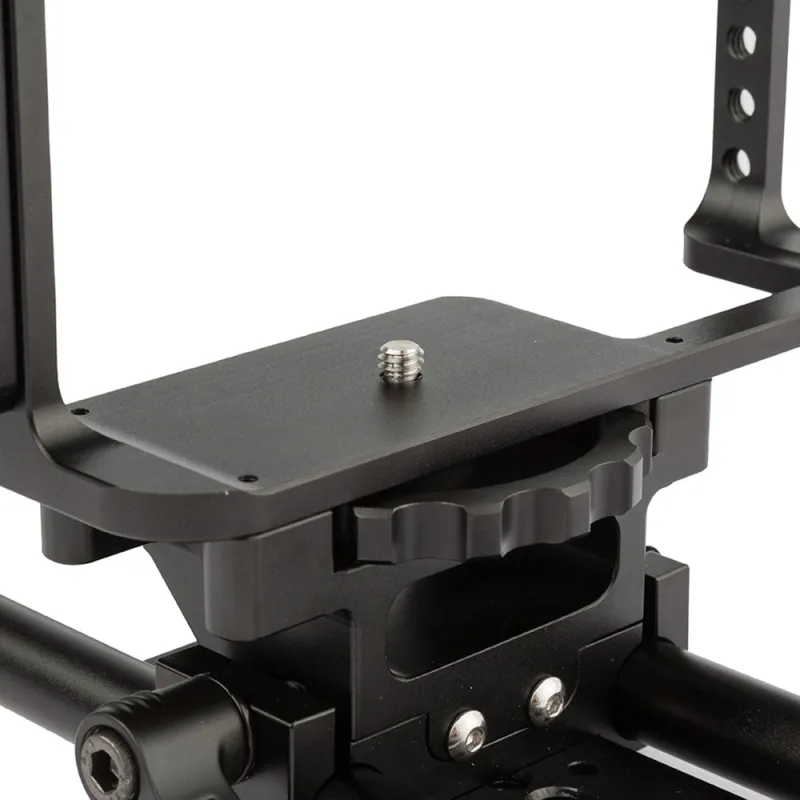

• Dual 15mm rod clamp baseplate
• Multiple 1/4-20 and 3/8-16 threaded holes for versatile accessory mounting

Included in the Kit

• GH4 Cage
• Top handle
• Top handle screw
• 1/4-20 thread D-ring screw
• Two 15mm rods, each 12 inches (304.8 mm) in length

Note: Cameras and accessories shown in images are not included.

Rig Specifications

• Weight: 0.852 kg (1.88 lb)
• Configuration: Includes top handle, baseplate, and 15mm rods
• Rod Compatibility: 15 mm diameter rods
• Rod Spacing: 60 mm
• Rod Material: Aluminum
• Rig Material: Aluminum and rubber
• Threaded Holes: 25 x 1/4-20, 1 x 3/8-16
• Tripod Mounts: 4 x 1/4-20, 4 x 3/8-16
• Camera Compatibility: Panasonic GH4

Cage Details

• Dimensions: 180.3 x 172.7 x 99 mm (7.1 x 6.8 x 3.9 in)
• Weight: 0.852 kg (1.88 lb)
• Includes: Baseplate
• Rod Compatibility: 15 mm rods
• Rod Spacing: 60 mm
• Rod Material: Aluminum
• Threaded Holes: 26 x 1/4-20, 1 x 3/8-16
• Tripod Mounts: 4 x 1/4-20, 4 x 3/8-16

Rods Specifications

• Type: Standard rods
• Diameter: 15 mm
• Length: 304.8 mm (12 in)
• Weight: 0.066 kg (0.14 lb) each
• Thread Type: Female
• Quantity: 2 rods
• Material: Aluminum

Top Handle Specifications

• Dimensions: 154.9 x 50.8 x 33.02 mm (6.1 x 2 x 1.3 in)
• Weight: 0.156 kg (0.34 lb)
• Cold Shoe Mounts: 1
• Handle Length: 127 mm (5 in)
• Threaded Holes: 1 x 3/8-16
• Material: Aluminum and rubber

Shipping Specifications

• Dimensions: 393.7 x 215.9 x 104.1 mm (15.5 x 8.5 x 4.1 in)
• Weight: 1.36 kg (3 lb)
• UPC Code: 847983014132
