Compact Ultra HD Live Studio Camera
The Blackmagic Micro Studio Camera 4K is the world's smallest Ultra HD live studio camera, designed specifically for live production environments. It delivers full Ultra HD resolution and supports both HD and Ultra HD video formats. The camera can be fully controlled remotely via SDI control protocol from compatible switchers.
Key Features
- Built-in color corrector for advanced image grading
- Integrated talkback and tally indicators for live production communication
- PTZ control output and B4 lens control output for remote lens and head operation
- Built-in stereo microphones with wind noise reduction design
- Backup battery support with Canon LP-E6 compatibility
- Adaptable Micro Four Thirds (MFT) lens mount with support for B4 and PL lenses via adapters
Live Multi-Camera Production
Its small size and open design make it ideal for multi-camera live productions such as reality TV, concerts, sports, and news. The camera can be discreetly placed or flown overhead to capture unique angles, enabling more dynamic and engaging programming.
Robust and Flexible Design
Constructed with a durable magnesium alloy body, the camera is compact—only slightly larger than the lens mount. It supports high-performance MFT lenses and traditional broadcast lenses via adapters. The 6G-SDI output supports Ultra HD up to 2160p30 and HD up to 1080p60. The program return input allows remote control of camera settings including color balance, black level, gamma, focus, iris, and zoom through the SDI connection.
Expansion Port

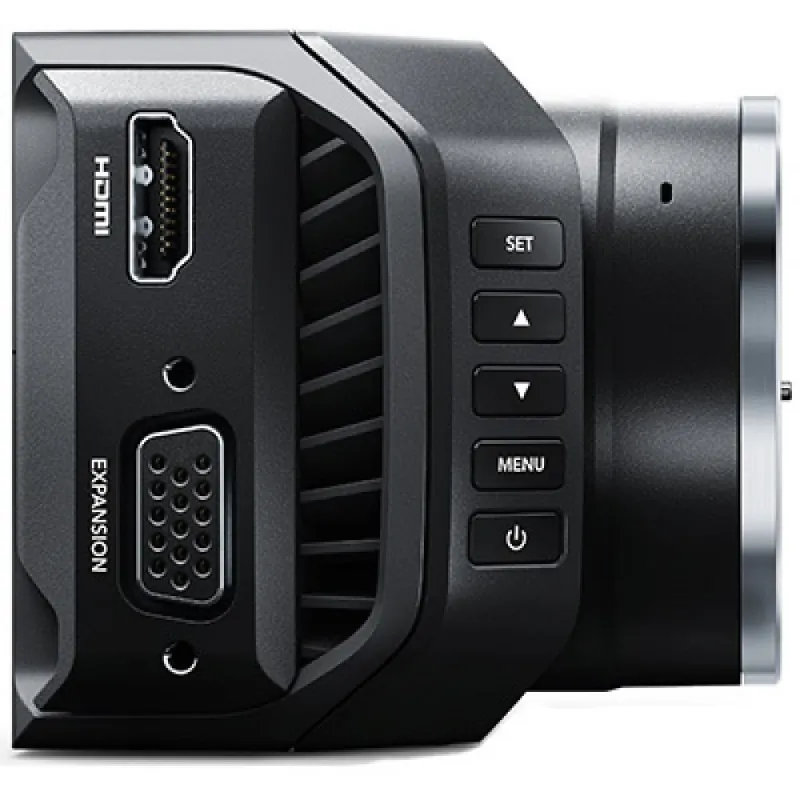

The camera features a DB-HD15 expansion port providing:
- Power input (12-20V DC)
- LANC input for remote control
- S.Bus input for custom control solutions
- PTZ serial output for motorized heads
- B4 lens control output for broadcast lenses
- Genlock input for synchronization
Image Sensor and Lens Mount

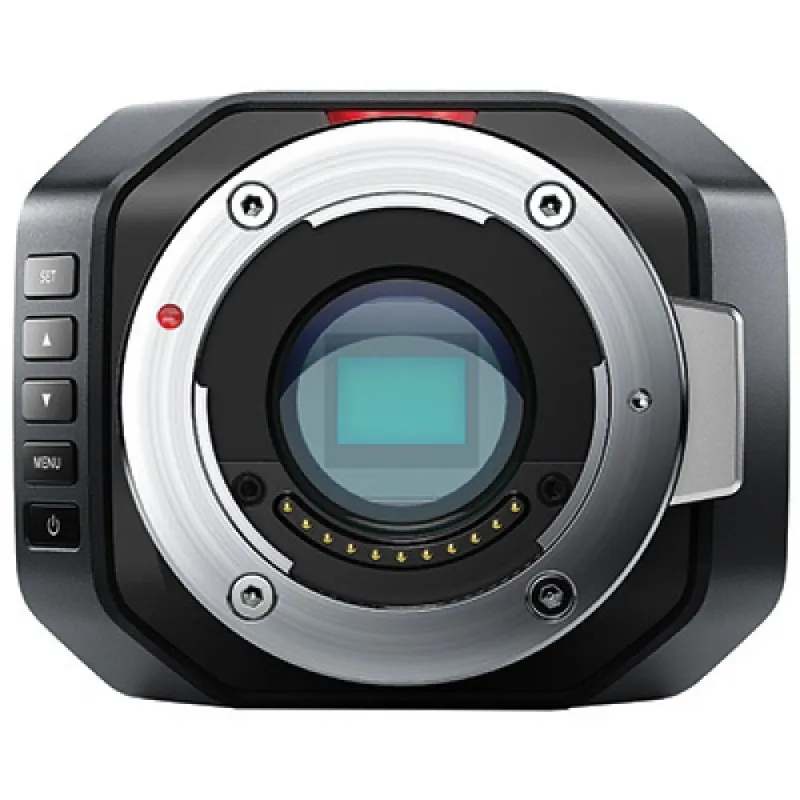

The camera includes a broadcast-grade Ultra HD sensor (13.056mm × 7.344mm) delivering exceptional clarity and fine detail. The MFT lens mount supports active lenses with remote control capabilities via SDI or expansion port. Lens adapters allow use of B4 broadcast lenses or feature film PL lenses.
Broadcast Connections and Audio

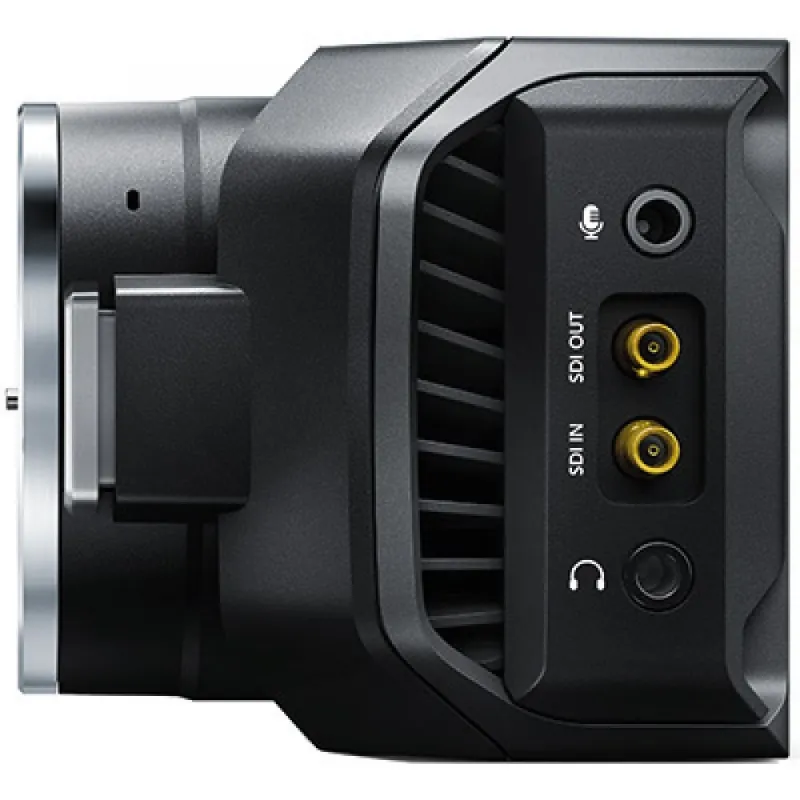

- 6G-SDI video output and input via DIN 1.0/2.3 connectors
- Embedded 2-channel audio in SDI stream
- Full-size HDMI output for local monitoring
- 3.5mm stereo microphone input supporting mic or line level
- 3.5mm stereo headphone output compatible with iPhone headsets for talkback
Remote Control and User Interface
Compatible with ATEM switchers, the camera supports full remote control over SDI using standard camera control protocols. It includes a DaVinci primary color corrector for advanced color grading. Front panel buttons provide quick access to power, menu navigation, and settings, even when the camera is rigged in tight spaces.
Power and Mounting
- Supports external DC power input (12-20V)

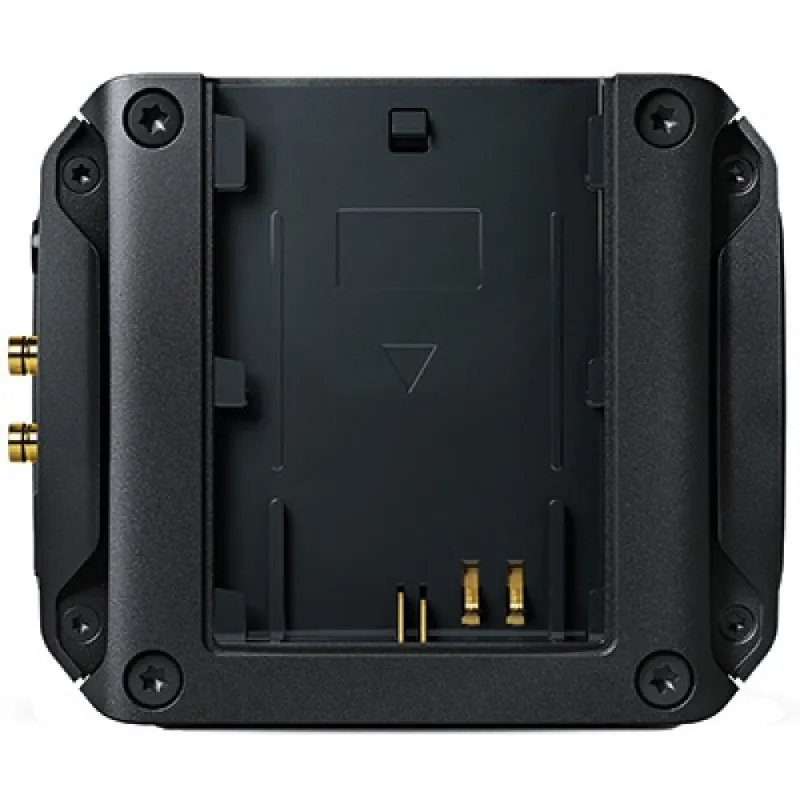

- Compatible with Canon LP-E6 batteries for backup power (battery not included)

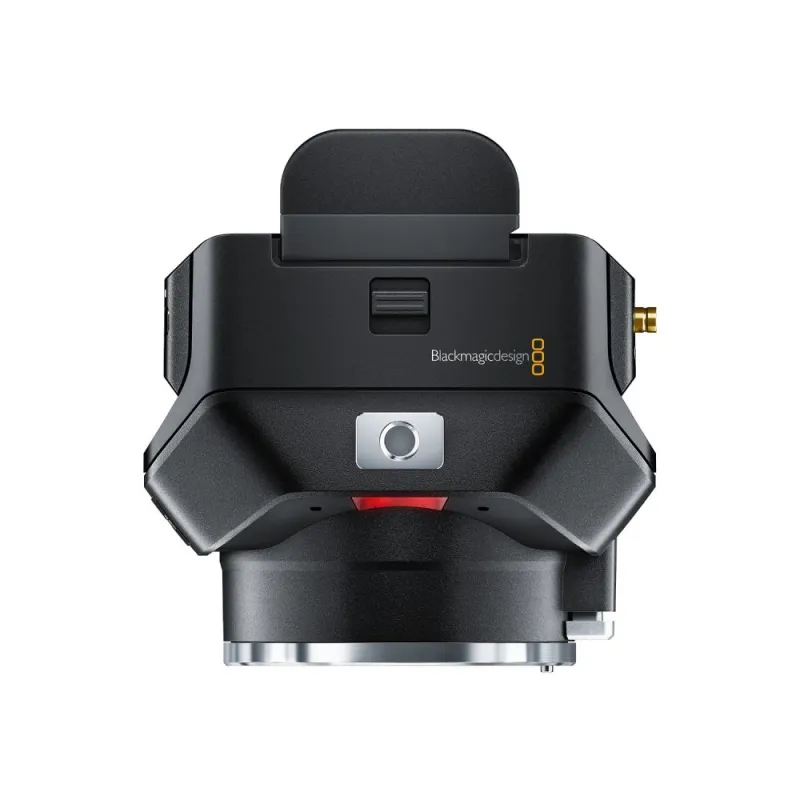

- Mounting options include one 1/4" thread on top and three 1/4" threads on the bottom for tripods and accessories
Software and Compatibility
- Includes Blackmagic Camera Setup software for configuration and updates
- Compatible with Mac OS X 10.9 or later and Windows 7/8
Physical and Environmental Specifications
- Dimensions: Width 82.5 mm, Height 65.3 mm
- Weight: 304 g
- Operating temperature: 0° to 40° C
- Storage temperature: -20° to 45° C
- Relative humidity: 0% to 90% non-condensing
Included Items
- Blackmagic Micro Studio Camera 4K
- Expansion cable
- Turret dust cap
- 12V AC adapter
Warranty
12-month limited manufacturer's warranty.
