DATAVIDEO VP-929 4K HDMI Repeater

4K HDMI Repeater

Easily extend up to 4K HDMI
The VP-929 extends HDMI signals up to 10 meters at 4K resolution and up to 15 meters at HD resolution.

Powered by HDMI signal or external power supply
It can be powered via the 5V line on the HDMI signal for the first repeater, while subsequent repeaters can use 5V USB power or a USB power bank.

Secure HDMI cables with regular zip ties

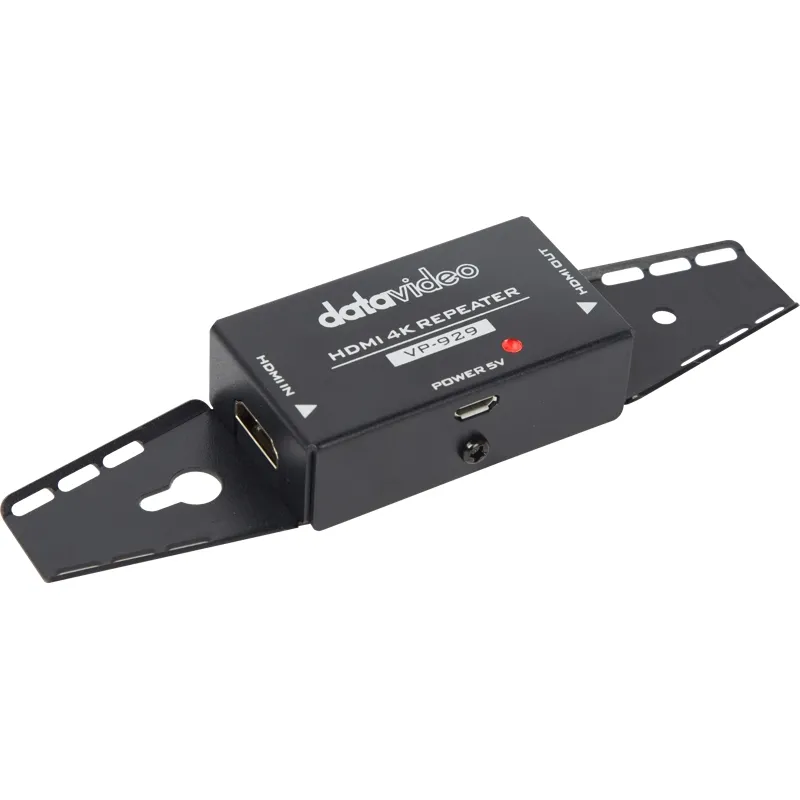

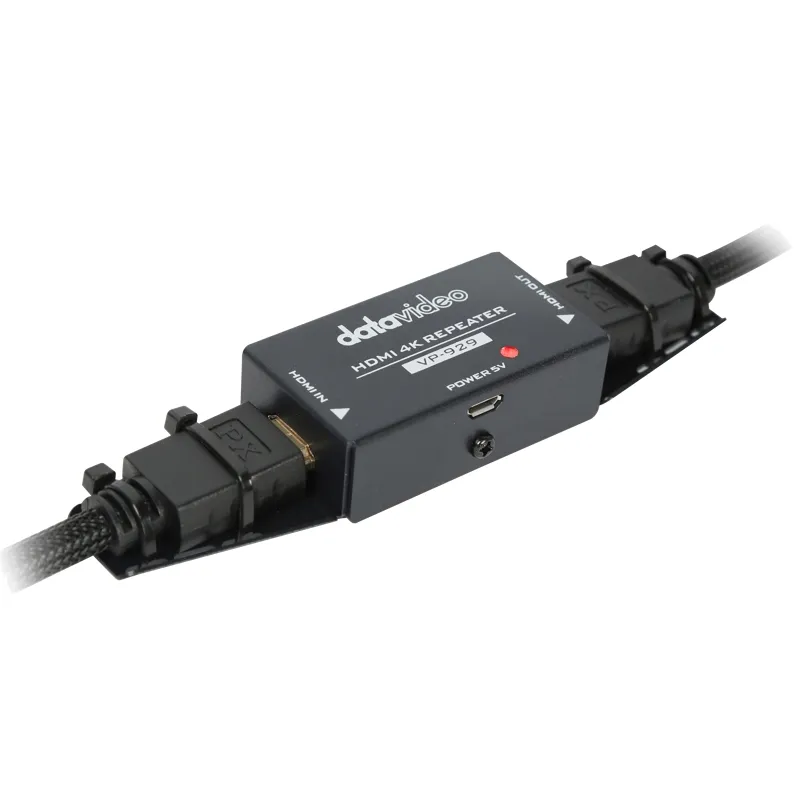

Cable holders on the chassis allow securing HDMI cables with standard zip ties for stable installation.

Cascade up to 3 VP-929 units
Up to three units can be cascaded to achieve a total HDMI transmission distance of up to 60 meters with HD signals.

Cost-effective HDMI extension
Ideal for installations where cable manipulation is limited, such as over ceilings or through walls.

Specifications

• Video Input/Output: HDMI 2.0 input and output
• Video Formats Supported:
  • 4096x2160p at 60/59.94/50/30/29.97/25/24/23.98 Hz
  • 3840x2160p at 60/59.94/50/30/29.97/25/24/23.98 Hz
  • 1080p at 60/59.94/50/30/29.97/25/24/23.98 Hz
  • 1080i at 60/59.94/50 Hz
  • 720p at 60/59.94/50 Hz
  • 525i 59.94 NTSC
  • 625i 50 PAL
• Video Processing: Supports HDR 4K2K60 (4:2:0 10bit) and 4K2K60 (4:4:4 8bit)
• Video Bandwidth: Single-link 594 MHz (18 Gbps)
• Audio Format: Surround sound up to 7.1 channels or stereo digital audio
• Power: Mini USB port for external 5V/500 mA power supply
• Operating Temperature Range: 0 to 40 °C
