Blackmagic Micro Converter SDI to HDMI 12G PSU

Professional 12G-SDI to HDMI Video Converter

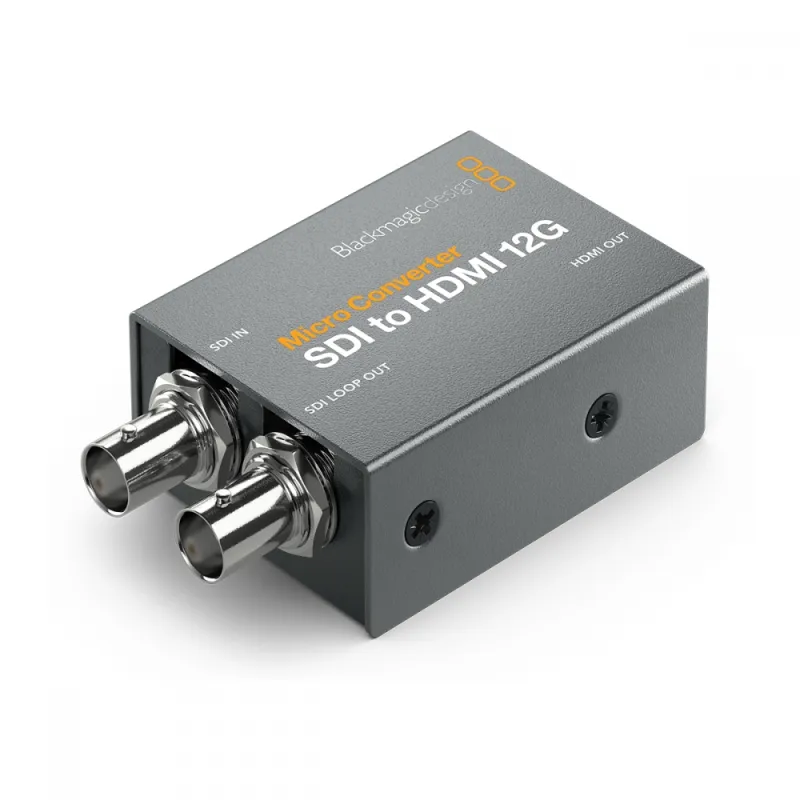

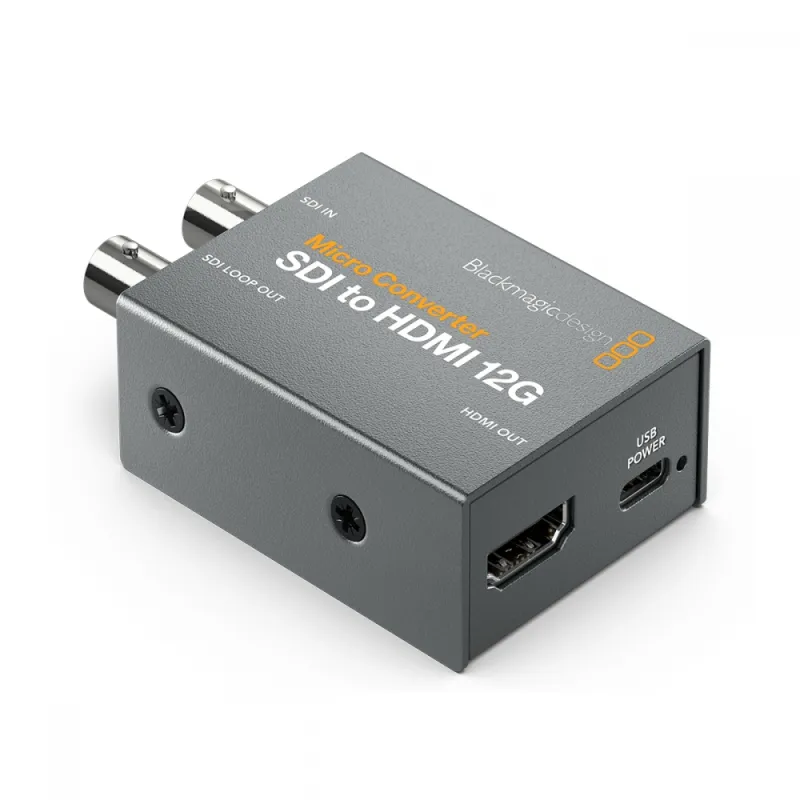

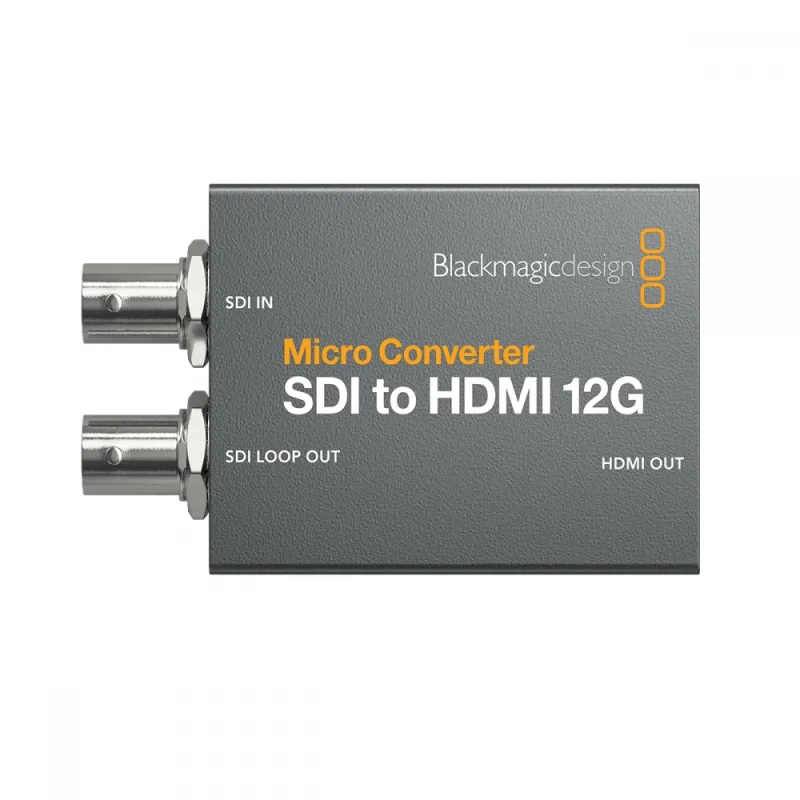

The Blackmagic Micro Converter SDI to HDMI 12G PSU is the world's smallest broadcast quality converter designed for professional video monitoring. It supports all SD, HD, 2K, Ultra HD, and 4K video standards up to 2160p60, including DCI film rates such as 4Kp24, 4Kp47.95, and 4Kp48. This compact device features a 17-point 3D LUT for precise color calibration of monitors, projectors, or televisions, which can also be output on the 12G-SDI loop output for consistent color grading.

Connectivity and Compatibility

• 1x 12G-SDI video input
• 1x 12G-SDI loop output
• 1x HDMI 2.0 Type A video output
• Supports SDI data rates: 270 Mbit/s, 1.5 Gbit/s, 3 Gbit/s, 6 Gbit/s, and 12 Gbit/s
• Automatic detection of video formats including NTSC, PAL, 720p, 1080p, 1080i, and 2160p
• USB Type-C port for power, firmware updates, and configuration
• Reclocking feature to reduce SDI jitter for long cable runs

Advanced Features

• Supports HDR workflows with static metadata PQ and Hybrid Log Gamma (HLG) formats compliant with ST2108-1, ST2084, and ST425 standards
• Compatible with Rec.2020 and Rec.709 color spaces
• Includes camera control features compatible with Blackmagic ATEM switchers
• Supports embedded audio and timecode over SDI and HDMI
• Software upgrades and settings control via MacOS and Windows utility

Power and Physical Specifications

• Power consumption: maximum 4 watts
• Operating voltage range: 4.40 to 5.25 V DC
• Powered via USB port, compatible with laptops, televisions, or mobile phone batteries
• Dimensions: 76.5 x 45.8 x 24.8 mm
• Weight: 150 grams

Operating System Support

• MacOS Catalina 10.15, Big Sur 11.1 or higher
• Windows 10, 64-bit

Important Notes

No copy-protected HDMI sources can be recorded via the HDMI input. Users should ensure compliance with copyright laws before recording or distributing content.
