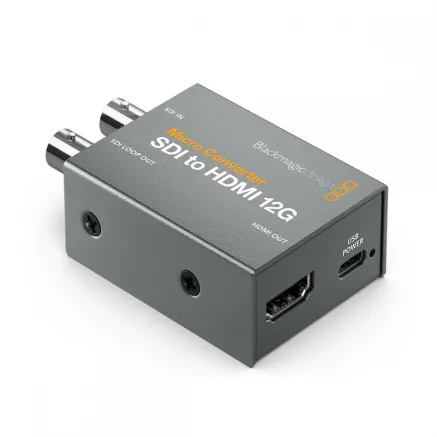

Blackmagic Design Blackmagic Micro Converter SDI to HDMI 12G PSU

Blackmagic Micro Converter SDI to HDMI 12G PSU

The worlds smallest converter for 12G-SDI to HDMI in broadcast quality. The Blackmagic Micro Converter SDI to HDMI 12G is a tiny video converter in broadcast quality that is used for professional monitoring. It has a 33-Point-3d-LUT for color calibration of monitors, projectors or Televisions. Equipped with full-size HDMI connectors and professional 12G-SDI connectors the micro converters works in all NTSC, PAL, 720p, 1080p, 1080i and 2160p rates including 4kp24/47.95/48 DCI. The converter can be powered via the USB port of Laptops or mobile phone batteries.

Connections

SDI-Video Input: 1
SDI-Video Output: 1 Loop
HDMI-2.0-Videooutput: 1 Typ A
SDI - rates: 270 Mbit; 1,5 G; 3 G; 6 G; 12 G
Multirate support: automatic detection of SD, HD, 2K, Ultra HD and 4K
Updates, configuration and power supply: USB Typ C
Reclocking: yes

Copy protection: Please note that no copy-protected HDMI sources can be recorded via the HDMI input. Always learn about copyrights before recording or distributing content

Settings control: through MacOS X or Windows utility via USB

Operating Systems:
Mac Catalina 10.15, Mac Big Sur 11.1 or higher
Windows 10, 64 Bit

Software: Software upgrade via USB

Power:
Power consumption: max. 4 watts
Operating voltage range: 4,40–5,25 V DC

Physical specifications:
Dimensions: 76,5 x 45,8 x 24,8 mm
Weight: 150 g
