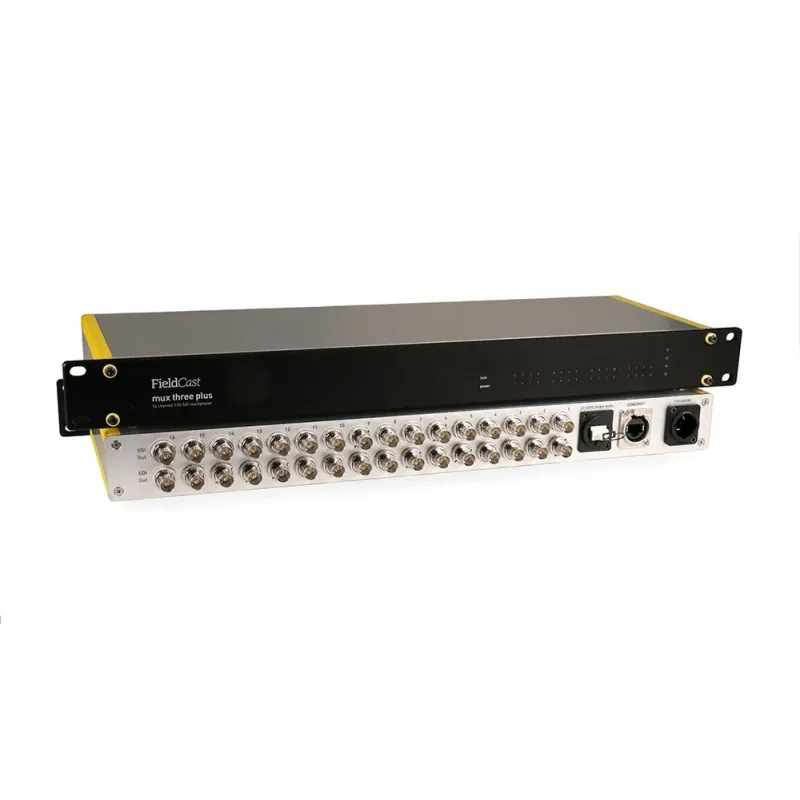

FieldCast Mux/Demux Three 12G Plus CO145

FieldCast Mux/Demux Three 12G Plus CO145

FieldCast Mux/Demux Three 12G Plus transmits sixteen 12G SDI video channels plus 1Gb Ethernet over one optical fiber strand with full data integrity.

Write a review

Product details

General Description

The FieldCast Mux/Demux Three 12G Plus CO145 is a high-performance device designed to transmit sixteen independent 12G SDI video channels along with full duplex 1Gb Ethernet over a single optical fiber strand. This solution is ideal for infrastructures limited to a single simplex fiber or for live event setups requiring minimal cabling. It ensures full data integrity for all 12G video signals, maintaining the input signal unchanged at the output. The Ethernet connection operates equivalently to a standard Cat5 cable.

Mux Three Plus 12G Features

  • Multiplexer with 16-channel SDI input to 1-channel optical output
  • Constructed with an aluminum chassis, 1U rack size
  • Utilizes 9/125 single mode fiber optic technology
  • Supports sixteen 12G SDI input channels (11.88 Gbps each) with loopthrough outputs
  • 75 ohm BNC connectors for all SDI inputs and loopthrough outputs
  • Compatible with SMPTE standards 259M, 344M, 292M, 424M, ST 2081, and ST 2082
  • Supports SD and HD video standards up to 1080p60
  • Equipped with one LC single mode optical channel for SDI signals and Ethernet (COM)
  • Includes one LC single mode optical channel for future upgrades (UPG)
  • Ethernet protocols supported: IEEE 802.3U, IEEE 802.3z, 1000Base-Tx/Fx
  • UTP RJ-45 connector for Ethernet with full/half duplex capability
  • Front panel features black finish with 2 mm white LED indicators for power, module activity, input signals, TP/LNK, and 1Gb status
  • Power consumption under 50 W
  • Dimensions: 482 mm (width) x 155 mm (depth) x 43 mm (height)
  • Weight: 2090 grams
  • Power input: 110-240 VAC via PowerCon connector
  • Proprietary hybrid WDM multiplexing technology ensures very low dispersion
  • Minimum operational distance between Mux and Demux units: greater than 10 km for all wavelengths

Demux Three Plus 12G Features

  • Demultiplexer with 1 optical input to 16 SDI output channels
  • Aluminum chassis, 1U rack size
  • 9/125 single mode fiber optic technology
  • Sixteen 12G SDI channels (11.88 Gbps each) with dual SDI outputs
  • 75 ohm BNC connectors for all SDI outputs
  • Compatible with SMPTE standards 259M, 344M, 292M, 424M, ST 2081, and ST 2082
  • Supports SD, HD, and Ultra HD video standards up to 2160p60
  • One LC single mode (U)PC optical channel (COM) for SDI and Ethernet
  • One LC single mode (U)PC upgrade optical channel (UPG)
  • Ethernet protocols supported: IEEE 802.3U, IEEE 802.3z, 1000Base-Tx/Fx
  • UTP RJ-45 connector for Ethernet with full/half duplex capability
  • Front panel black finish with 2 mm white LED indicators for power, module activity, input signal, TP/LNK, and 1Gb status
  • Power consumption under 50 W
  • Proprietary hybrid WDM multiplexing technology for very low dispersion
  • Minimum operational distance between Mux and Demux units: greater than 40 km for all wavelengths
  • Power input: 110-240 VAC via PowerCon connector
  • Dimensions: 482 mm (width) x 155 mm (depth) x 43 mm (height)
  • Weight: 2100 grams

Included Items

  • Manual
  • Power cord
