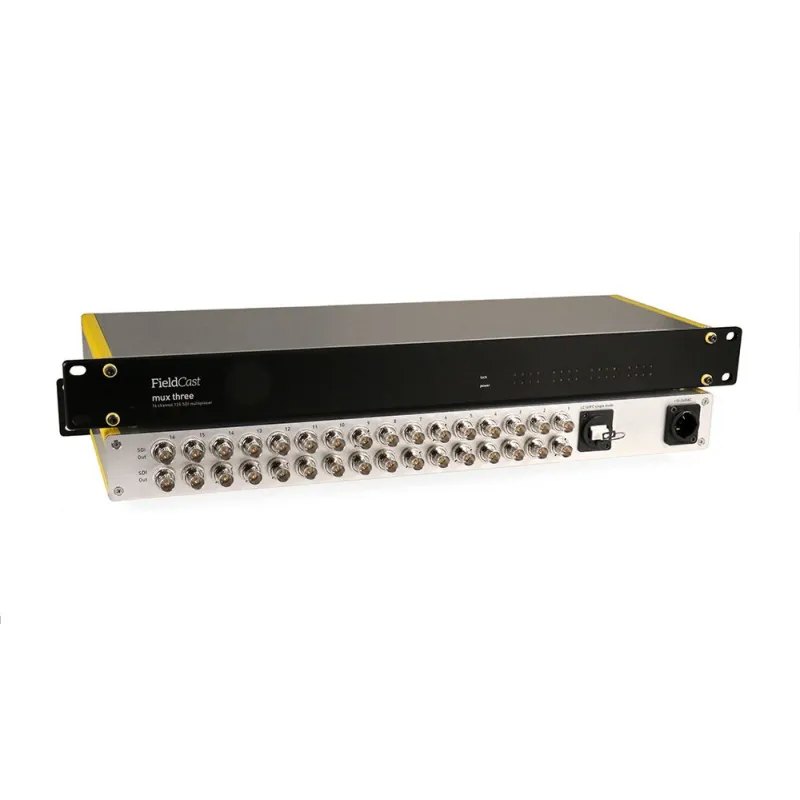

FieldCast Mux/Demux Three 12G

FieldCast Mux/Demux Three 12G

Transmit 16 channels of 12G SDI video over one optical fiber with FieldCast Mux/Demux Three 12G system.

Write a review

Product details

Mux/Demux Three 12G Overview

The FieldCast Mux/Demux Three 12G system enables transmission of sixteen independent 12G SDI video channels over a single optical fiber. This solution is ideal for infrastructures limited to a single simplex fiber or for live event setups where minimal cabling is desired. The device multiplexes up to sixteen video channels, maintaining full data integrity so that the output matches the input exactly.

Mux Three 12G Features

  • Multiplexer with 16-channel SDI input to 1-channel optical output
  • Aluminum 1U rack-mount design
  • Utilizes 9/125 single mode fiber optic technology
  • Supports sixteen 12G SDI input channels (11.88 Gbps each), each with loopthrough output
  • 75 ohm BNC connectors for all SDI inputs and loopthrough outputs
  • Compatible with SMPTE standards 259M, 344M, 292M, 424M, ST 2081, and ST 2082
  • Supports SD, HD, and UHD video standards up to 2160p at 60 fps
  • Equipped with one LC single mode (U)PC optical channel (COM) and one LC single mode (U)PC upgrade optical channel (UPG)
  • Front panel features black finish with 2 mm white LED indicators for power, module activity, and input signals
  • Power consumption under 50 W
  • Proprietary hybrid WDM multiplexing technology ensures very low dispersion
  • Minimum operational distance between Mux and Demux units is greater than 10 km for all wavelengths
  • Power input range of 110-240 VAC via PowerCon connector
  • Dimensions: 482 mm (W) x 155 mm (D) x 43 mm (H)
  • Weight: 2070 grams
  • Includes manual and power cord

Demux Three 12G Features

  • Demultiplexer with 1 optical input to 16 SDI output channels
  • Aluminum 1U rack-mount design
  • Utilizes 9/125 single mode fiber optic technology
  • Supports sixteen 12G SDI channels (11.88 Gbps each) with dual SDI outputs
  • 75 ohm BNC connectors for all SDI outputs
  • Compatible with SMPTE standards 259M, 344M, 292M, 424M, ST 2081, and ST 2082
  • Supports all SD and HD video standards up to 1080p at 60 fps
  • Equipped with one LC single mode (U)PC optical channel (COM) and one LC single mode (U)PC upgrade optical channel (UPG)
  • Front panel features black finish with 2 mm white LED indicators for power, module activity, and input signal
  • Power consumption under 50 W
  • Proprietary hybrid WDM multiplexing technology ensures very low dispersion
  • Minimum operational distance between Mux and Demux units is greater than 40 km for all wavelengths
  • Power input range of 110-240 VAC via PowerCon connector
  • Dimensions: 482 mm (W) x 155 mm (D) x 43 mm (H)
  • Weight: 2100 grams
  • Includes manual and power cord
