Decimator Design MD-HX HDMI/SDI Cross Converter

Decimator Design MD-HX HDMI/SDI Cross Converter

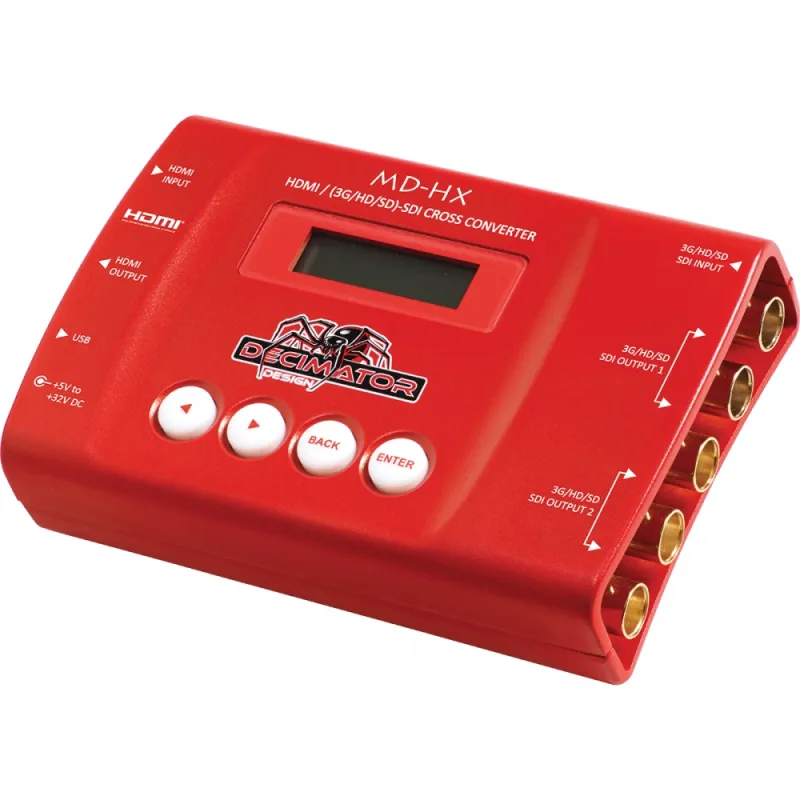

The Decimator MD-HX is a new, miniature and low-cost HDMI/SDI down up cross converter with Scaling and Frame Rate conversion..

Features:
– Support both 3G level A and B on the input and output
– Allowing conversion between A and B
– Horizontal and/or Vertical image flipping via the built in scaler
– Combines several converters for the price of one e.g. SDI to HDMI, HDMI to SDI, Down Up Cross Converter, etc.)
– Robust Aluminium Case with easy to use LCD and button control system
– 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2
– The audio pairs in the SDI and HDMI outputs can be rearranged as required.
– Includes the same Down Up Cross Converter from the multi-award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard.
– This unit also includes USB port for control and firmware updates, New Metal Thread Locking DC Power Socket, Power Supply, HDMI Cable and USB Cable

Modes:
1. SDI IN to HDMI and SDI OUT
2. SDI IN to SDI OUT and HDMI IN to HDMI OUT
3. SDI IN to SDI OUT and Scaled SDI IN to HDMI OUT
4. SDI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
5. HDMI IN to SDI OUT and SDI IN to HDMI OUT
6. HDMI IN to HDMI and SDI OUT
7. HDMI IN to SDI OUT and Scaled SDI IN to HDMI OUT
8. HDMI IN to SDI OUT and Scaled HDMI IN to HDMI OUT
9. Scaled SDI IN to SDI OUT and SDI IN to HDMI OUT
10. Scaled SDI IN to SDI OUT and HDMI IN to HDMI OUT
11. Scaled SDI IN to HDMI and SDI OUT
12. Scaled HDMI IN to SDI OUT and SDI IN to HDMI OUT
13. Scaled HDMI IN to SDI OUT and HDMI IN to HDMI OUT
14. Scaled HDMI IN to HDMI and SDI OUT

Delivery Contents:
MD-HX
Power Supply
HDMI Cable
USB Cable

SDI Formats

3G:SMPTE 424M@2.97 and 2.967Gb/s: 1080p@60/59.94/50Hz
HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s: 1080i@60/59.94/50Hz; 1080p/psf@30/29.97/25/24/23.98Hz; 720p@60/59.94/50/30/29.97/25/24/23.98Hz
SD:SMPTE 259M@270Mb/s: 625i50; 525i59.94

Inputs

1 × HDMI input; 1 × (3G/HD/SD)-SDI input

Power

5V to +32V DC, Positie Centre Pin

LCD/Buttonmenu Options

SDI output source from HDMI IN, SDI IN, Scaler; SDI output 1 is loop; HDMI output type and source from HDMI IN, SDI IN, Scaler; Scaler source, reference, format and Aspect Controls; Audio pair routing or HDMI and SDI output; LCD backlight off ti; Back to Status tim

Outputs

1 × HDMI; 2 × (3G/HD/SD)-SDI Actie Loop-through or addition output; 2 × (3G/HD/SD)-SDI outputs

Dimensions

79.5mm × 123mm × 29.5mm (3.1" × 4.8" × 1.2")
