Feelworld LUT6S 6" 4K 2600cd/m² SDI HDR Field Monitor

6” 2600 cd/m² SDI HDR Field Monitor

Extremely bright and lightweight, the Feelworld LUT6S allows you to view and shoot anytime, anywhere.

Simple Operating System (OS) with Advanced Features

The flexible OS includes a comprehensive set of tools accessible via intuitive touchscreen controls. Video OS tools include focus assist, framing guides, exposure aids such as waveform, RGB parade, vectorscope, RGB histogram, histogram, audio meter, focus peaking, zoom, zebra, false color, frame guides, safe area, and more. It also supports flexible 3D LUT loading (use built-in LOG to record Rec.709 video or upload .cube files), wide dynamic range (HDR) monitoring, and anamorphic de-squeeze monitoring.

Designed for Any Shooting Scenario

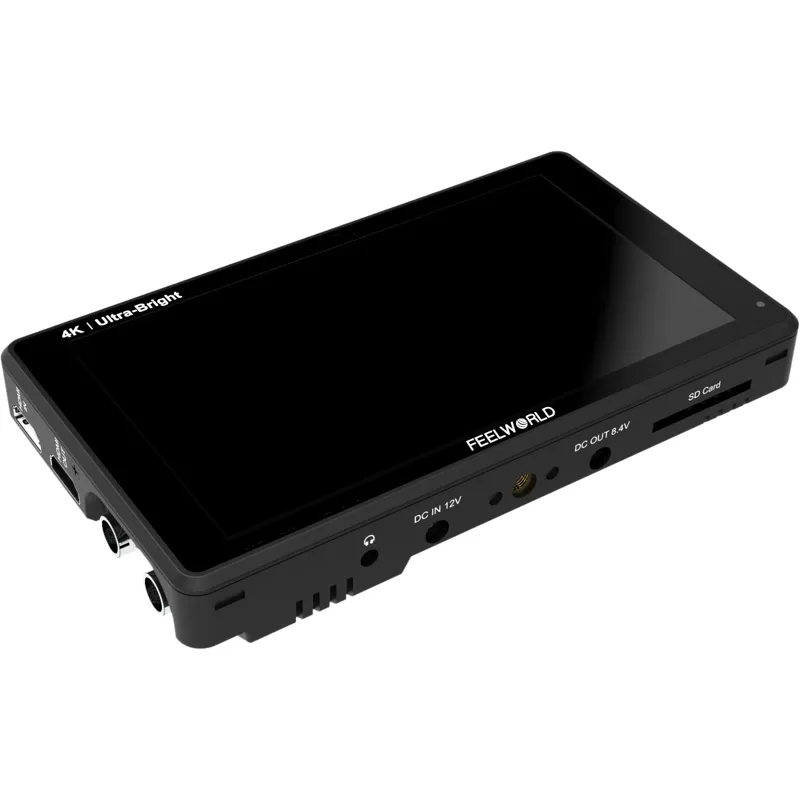

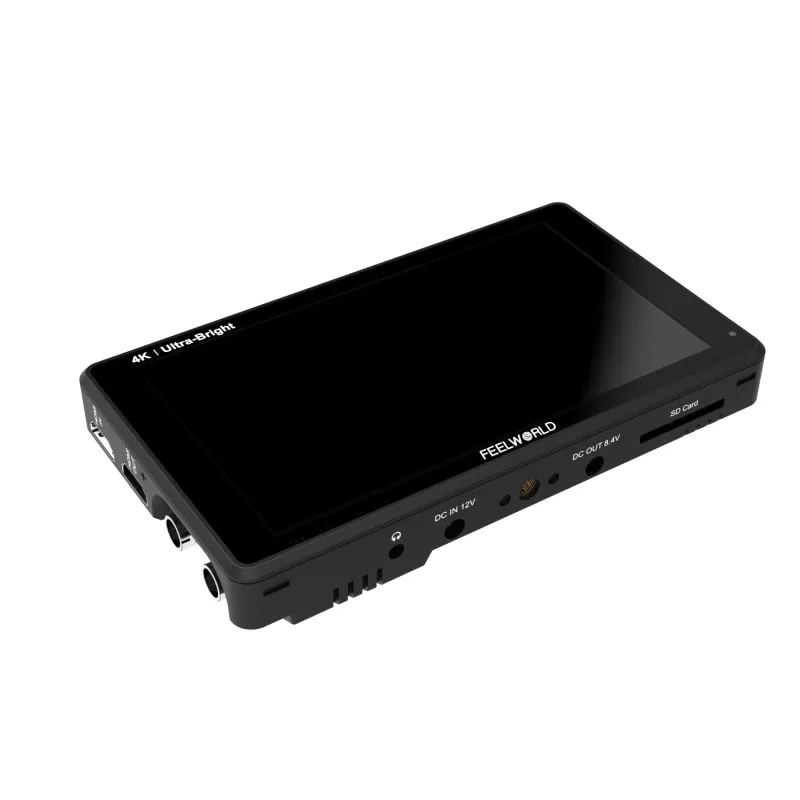

The LUT6S offers directors the benefits of a large display without complicating camera setup. It features high-end monitoring functions in a compact, lightweight package compatible with nearly any camera. The front houses a large, high-resolution daylight-viewable LCD touchscreen. On the left side are video connections and an SD card slot at the bottom, with an NP-F battery slot on the back. The exterior includes standard ¼” mounting points on the bottom, left, and right sides for easy attachment to cameras and rigs, facilitating sharing with crew or clients on set.

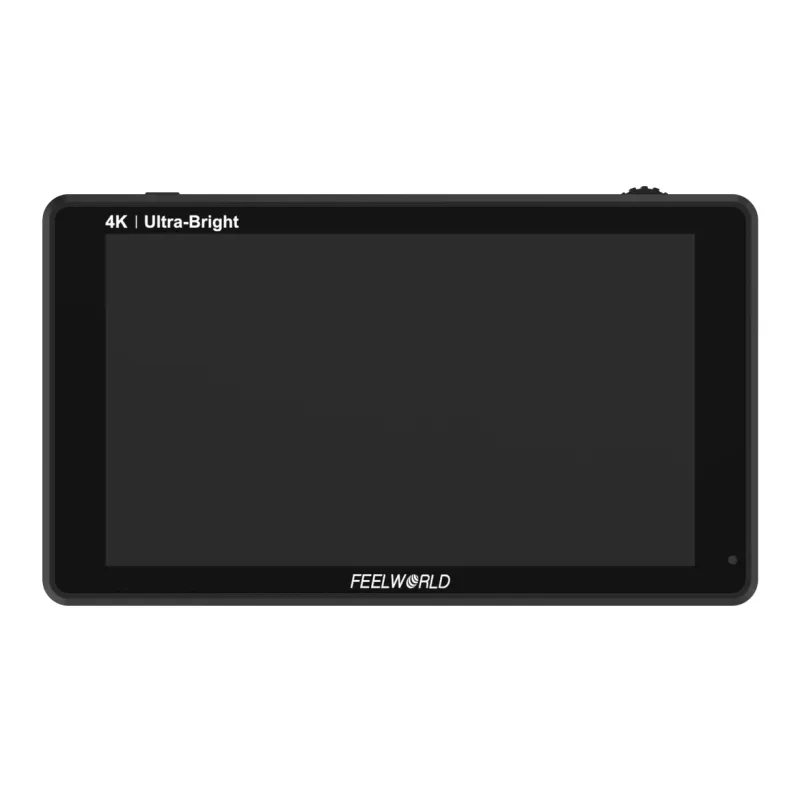

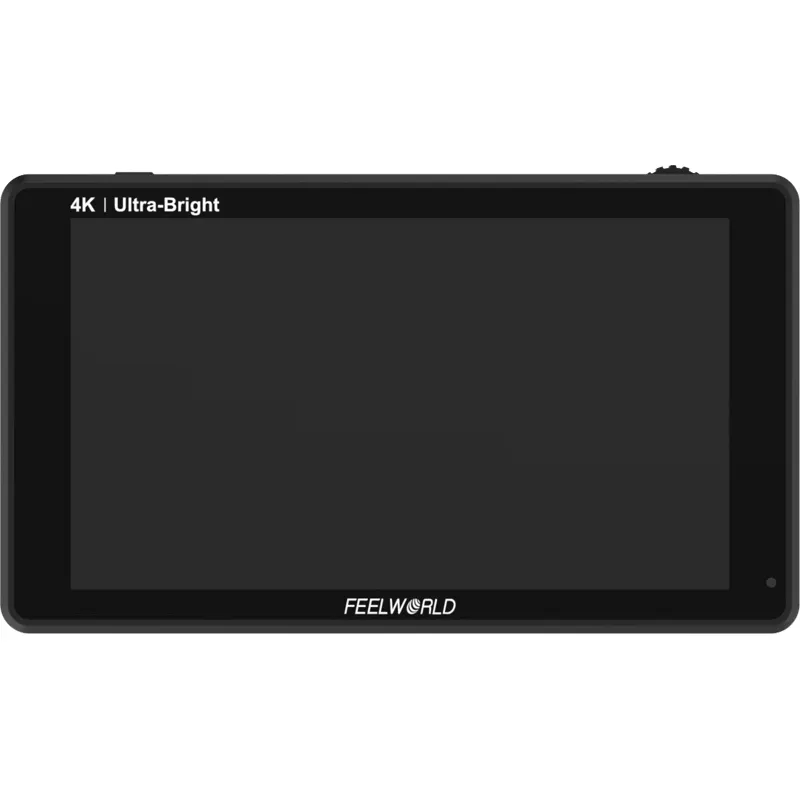

6” LCD with Full HD 1920 x 1080 Resolution

The LUT6S monitor enables clear, precise field monitoring and image analysis during daylight shooting. It displays images on a 6-inch screen with excellent color accuracy and a maximum resolution of 1920 x 1080 pixels. The panel is made of optically bonded glass with an anti-reflective coating for comfortable daylight viewing. Its LED backlight emits 2600 cd/m² brightness with a 1000:1 contrast ratio and standard sRGB/Rec.709 color gamut, ensuring exceptional clarity even in intense lighting. With a pixel density of 368 PPI, you can confidently shoot in bright daylight and enhance content on location. The wide 160° viewing angle allows multiple crew members to view the screen simultaneously.

2600 cd/m² Ultra-Bright Screen Visible in Sunlight

The fully adjustable 2600 cd/m² screen is incredibly bright, ideal for indoor or outdoor shooting. Its brightness is nearly five times that of typical field monitors, enabling outdoor shooting without glare or washed-out images. This allows comfortable outdoor viewing without a sunshade, facilitating shooting in bright daylight.

One-Touch Flight Options

The innovative touchscreen LCD interface provides excellent control. Key monitoring functions can be accessed with simple tap and swipe gestures. Focus and exposure assists can be enabled via touchscreen. A wide range of settings is available and controllable from the large LCD. Additionally, you can load 3D lookup tables (3D LUTs).

Built-in HDR/De-log 3D LUT and 3G-SDI 3D LUT Output Support

The LUT6S includes built-in HLG 2020, HLG 709, HLG P3 HDR 3D LUTs and Rec709 De-slog3 LUTs supporting SLOG2, SLOG3, LOGC, VLOG. It supports custom LUT image output and displays HDR signals for incredible clarity and detail, simplifying Log format and HDR shooting complexity and aiding post-production workflows during shooting.

Load Custom 3D LUTs to Create Cinematic Looks

Some cameras provide logarithmic color space to preserve dynamic range, ideal for post-production, but these files may appear flat on monitors. 3D LUTs solve this by adjusting monitor display to preview how footage will look after editing. You can use built-in LOG to Rec.709 conversion or upload .cube files (max 7.9 MB, supporting 3D LUT sizes 16, 17, 32, 33, 64, 65). Using the SD card slot (supports FAT32 and NTFS), you can load up to 50 custom LUT files, looks, or profiles anytime and switch between them instantly, maintaining creative flexibility.

Natural Colors · Professional Color Calibration

The monitor uses the Rec.709 color standard. The LUT6S employs professional Rec.709 HD color standard and factory calibration with professional instruments to ensure accurate color reproduction without distortion, displaying true-to-life images during video capture.

Accurate Color Reproduction

FEELWORLD monitors support ITU standards and HD video Rec.709 standard consistent color gamut with advanced image processing technology for clear image display. Colors are extremely natural to provide precise color reproduction, reflecting shooting characteristics and allowing users to accurately evaluate input video signal quality.

Precise Waveform Monitoring

For detailed image quality analysis beyond simple viewing, the LUT6S features built-in waveform monitoring. Choose from waveform types (RGB parade, YUV parade, Y parade), vectorscope, histograms, and audio phase and level displays for precise broadcast waveform monitoring, showing all technical details of your video and audio signals. Functions can be opened individually or with one key to open all scopes mode. This makes the LUT6S ideal for live production monitoring, eliminating the need for expensive external monitors.

Touchscreen and Button Control Menu

Quickly access menu settings and functions by tapping the screen. Physical button control is also supported. Use the rotary knob to quickly select and adjust functions. The power switch disables touchscreen to prevent accidental operation.

Connect to Professional Cameras, Camcorders, and DSLRs

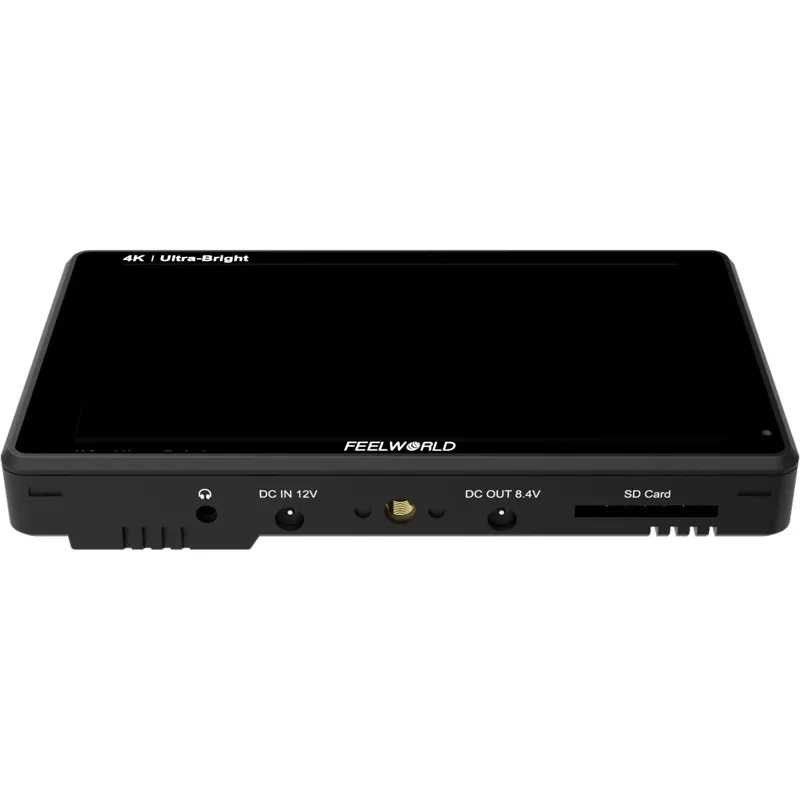

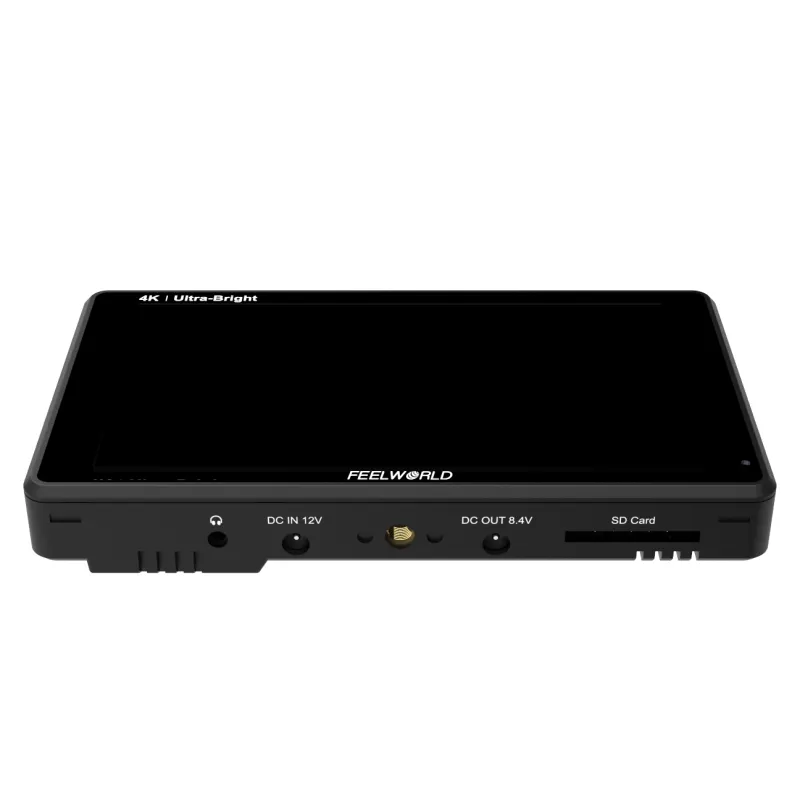

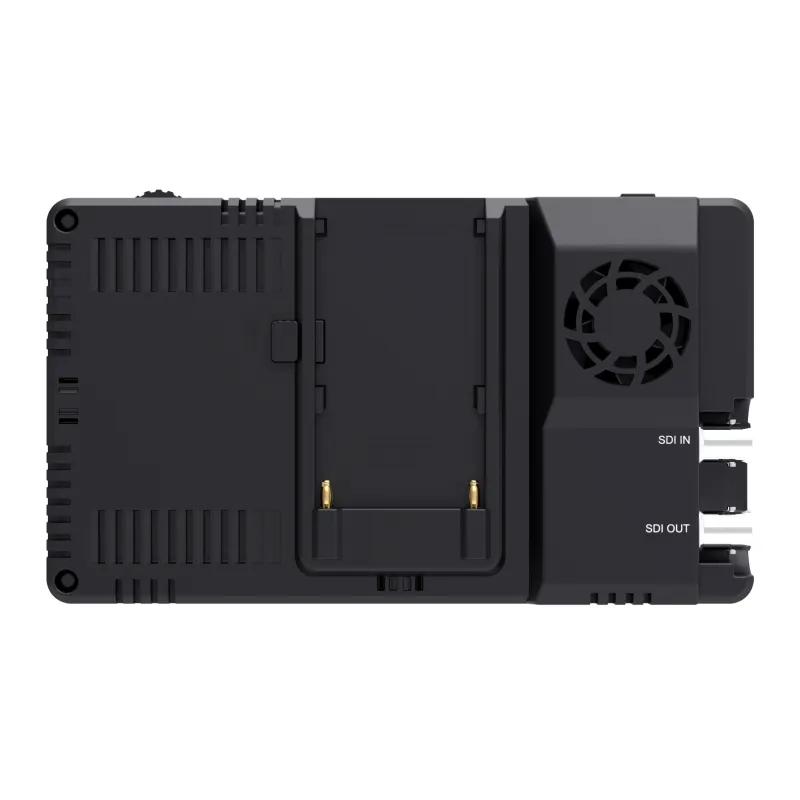

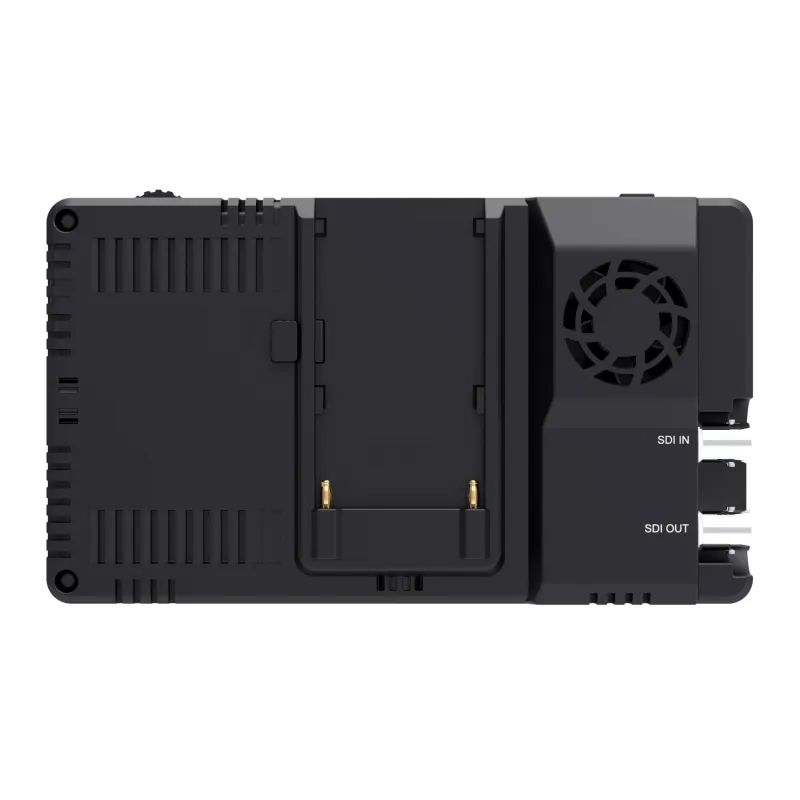

With 3G-SDI and 4K HDMI inputs, it connects to consumer cameras, broadcast cameras, or DSLRs. Loop-through output allows live video display or extended transmission to external monitors or projectors with embedded audio. Audio monitoring is available via 3.5 mm stereo headphone jack. Power is supplied via 12 V DC input or NP-F battery slot. A rear fan automatically dissipates heat based on backlight brightness; it activates automatically when brightness exceeds 80 in Auto mode.

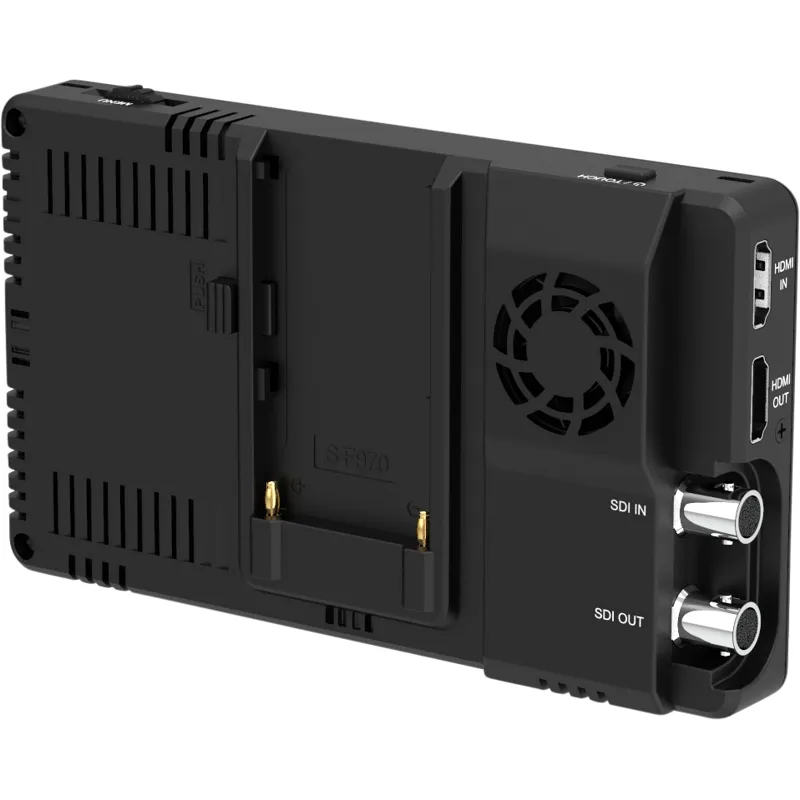

3G-SDI and 4K HDMI Loop-Out

The LUT6S features 3G-SDI and HDMI input and output, enabling simultaneous live signal display on multiple monitors without quality loss.

Connect to Wireless Transmitters

The monitor can wirelessly transmit to the director responsible for monitoring, providing cable-free flexibility for effortless scene transitions during outdoor shooting.

Connect to Director Monitors

Display live video simultaneously on multiple screens.

Power Your DSLR or Mirrorless Camera

The LUT6S is an ideal top-mounted monitor for DSLR and mirrorless camera operators, providing additional power supply to extend camera runtime with an optional battery adapter cable while offering a more functional display.

Mount on Cameras, Equipment Carts, or Hang Anywhere

Standard mounting points facilitate installation and compatibility with third-party rigging equipment. Two mounting points are located on the bottom and right side. The bottom ¼” hole allows secure attachment atop the camera as a main viewfinder. The right ¼” hole can mount to other equipment with articulating arms, clamps, etc., enabling the whole crew to view the screen.

Convenient Mounting - Tilt Bracket

Each LUT6S comes with a tilt bracket attached to a cold shoe mount adapter, providing a secure, low-profile mounting solution. The monitor can rotate 360° in two ways for comfortable viewing: 1) 360° rotation top to bottom via the tilt bracket side mount point, 2) 360° rotation left to right via the tilt bracket bottom mount point. The cold shoe mount or ¼”-20 thread allows easy mounting of accessories like microphones, LED lights, or wireless receivers.

Package Includes:

• LUT6 Monitor
• Carrying Case
• Mini/Micro HDMI to HDMI Cable
• Tilt Bracket
• User Manual
