Swit S-1093F(LUX) 9-inch LCD Monitor
AI ASSISTANT CHAT
Or ask about:
| Type of Product | LCD Monitor |
| Battery type | V-tipa baterijas |
| Battery type | Gold mount |
| LCD monitors | monitors |
| LCD monitors | monitor |
| LCD monitors | hood |
| Connector | USB-C charging/connection |
| Connector | HDMI |
| Connector | SDI |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Overview

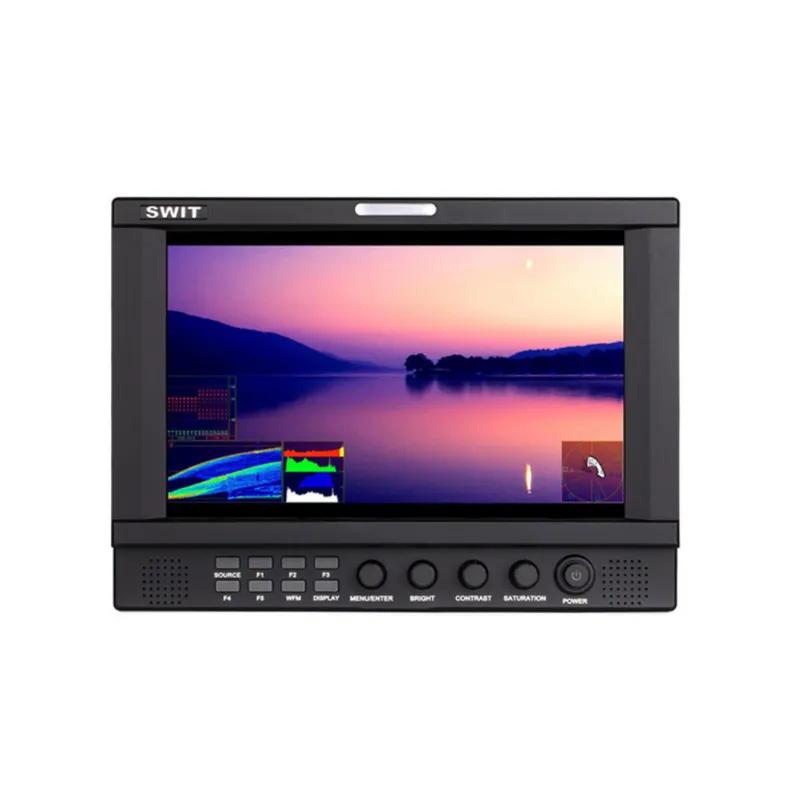

The SWIT S-1093F (LUX) is a professional 9-inch IPS LCD monitor designed for broadcast, filmmaking, and on-location production. It features a 1920x1200 Full HD resolution, LED backlight with up to 450 cd/m² brightness, 1000:1 contrast ratio, and 170° horizontal/vertical viewing angles for accurate image monitoring from any position. The screen is protected by integrated LCD protective glass to prevent scratches and damage.

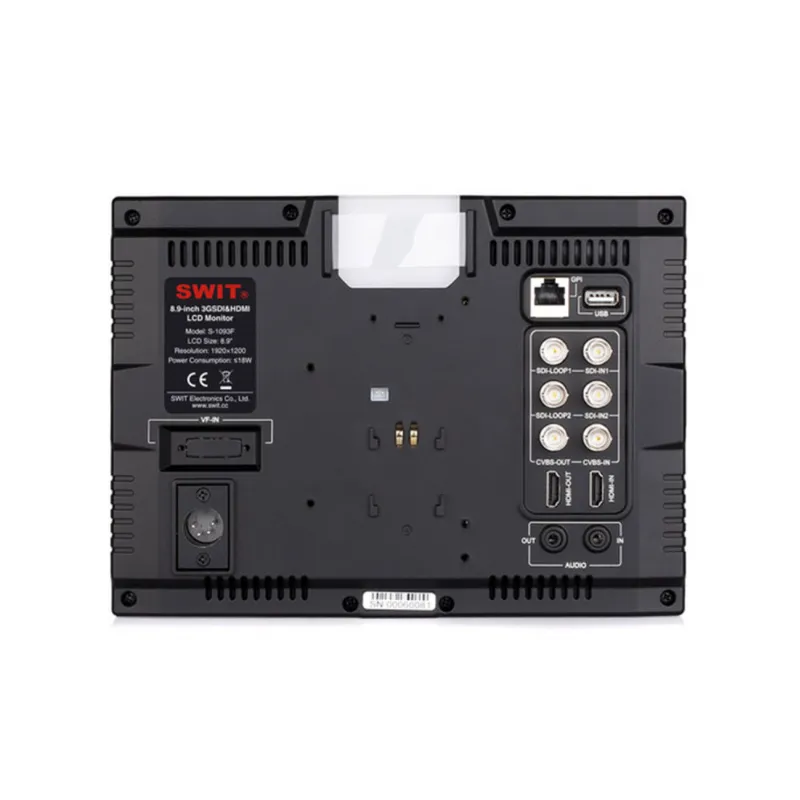

Connectivity
The monitor supports 2K/3G/HD/SD-SDI (2 inputs, 2 loop outputs), HDMI input/output, and CVBS input/output, ensuring compatibility with a wide range of cameras and production equipment. Advanced monitoring tools include waveform (Y/Pb/Pr/R/G/B), vectorscope, RGB/Y histogram, false color, H/V delay, AFD, mono/RGB display, and multiple aspect ratio markers (4:3, 16:9, 14:9, 15:9, 1.85:1, 2.35:1).
Audio Monitoring
Integrated 16-channel SDI and HDMI audio meters with alert indicators allow precise audio monitoring, and users can select any 2 channels for output via the 3.5mm headphone jack or built-in speakers. The monitor supports TSL 3.1/4.0 UMD & TALLY display via RJ45 (RS485), with front and rear tally lights (red, green, yellow).
Power and Accessories
Power options include 4-pin XLR DC input (6.524V), V-mount, Gold mount, and interchangeable DV battery plates. Firmware updates are easily performed via the rear USB port without requiring a PC. The included sun hood makes it suitable for outdoor shooting.
Key Features
- 9" IPS LCD, 1920x1200 resolution
- 170° H/V viewing angles
- Protective glass screen
- 2K/3G/HD/SD-SDI 2 in / 2 loop out
- HDMI in/out and CVBS in/out
- 16-channel embedded audio monitoring with alarms
- Waveform, vectorscope, histogram, false color, RGB scan
- Multiple aspect ratio markers & timecode display
- TSL UMD & TALLY via RJ45 (RS485)
- Firmware update via USB
- Power via 4-pin XLR, V-mount, Gold mount, or DV plates
- Sun hood included
Included Items
- 1 SWIT S-1093F (LUX) 9" Monitor
- 1 Sun Hood
- Protective LCD glass (pre-installed)
Specifications
- Panel: IPS LCD, 9.0" (16:9)
- Resolution: 1920 x 1200
- Brightness: 450 cd/m²
- Contrast Ratio: 1000:1
- Viewing Angle: 170° H / 170° V
- Bit Depth: 8-bit (16.7 million colors)
- Power Consumption: 18W (max)
- Power Input: 4-pin XLR (6.524V DC)
- Operating Temperature: 0°C to 40°C
- Dimensions: 241 x 178 x 50 mm
- Weight: 960 g
