Portable 5" monitor and professional recorder with 4 built-in scopes, focus assist, tally indicator, and 3D LUTs. Supports up to 1080p60 recording.

Blackmagic Design Blackmagic Video Assist 5" 3G

Product ID: 41458
€ 395,45 tax incl.

By preorder with no delivery time known
SKU: 41458
Condition: New product
Manufacturer: Blackmagic
395.45
Leasing calculator
Leasing calculator
Payment period
3
6
12
24
36
Monthly, €
no
Discover related products
Discover related products

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductLCD Monitor
LCD monitorsmonitor mount
ConnectorSDI
ConnectorHDMI
How to buy goods on lease?

  • 1. Evaluate your options.
  • 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
  • 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
    We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
    Manager will check the availability of the items in the cart and send the loan application link.
  • 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
  • 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
  • 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
  • 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
  • *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
    **The sequence of leasing steps is the same for leases offered by InCredit Group.
    ***In case of doubt, contact our consultants!

    When using leasing services, carefully evaluate your options to repay the loan!
    • Lease
send a message

Quick order


This product is no longer in stock

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Anycubic Kobra 3 V2 3D printer K3V2-IP-O

Anycubic Kobra 3 V2 3D printer K3V2-IP-O

The Anycubic Kobra 3 V2 is a fast and precise 3D printer with advanced features like automatic leveling and smart monitoring.

Write a review

Product details

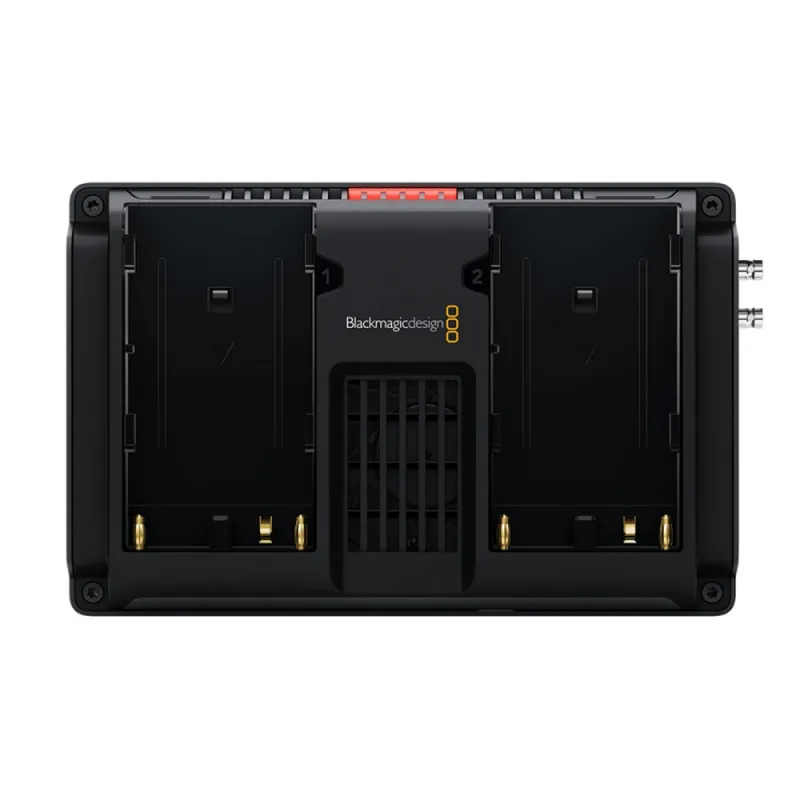

Blackmagic Video Assist 5" 3G (BM-HYPERD/AVIDA03/5)

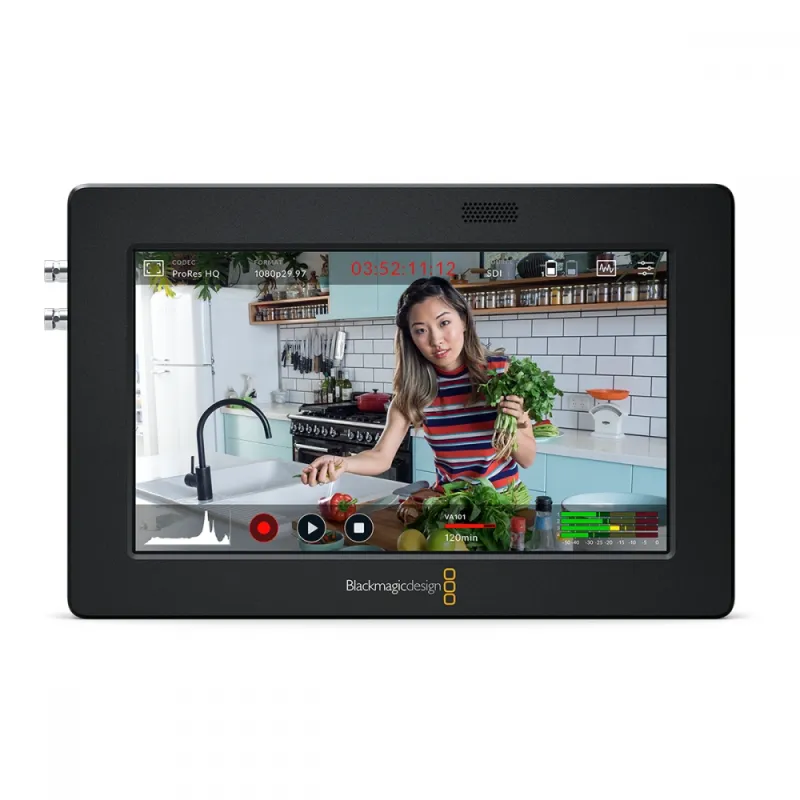

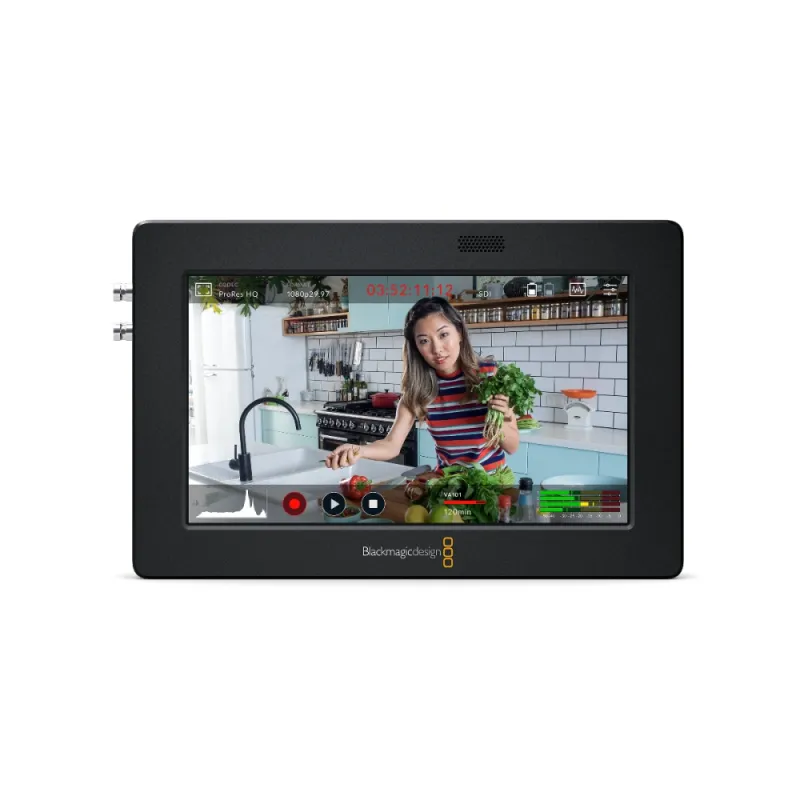

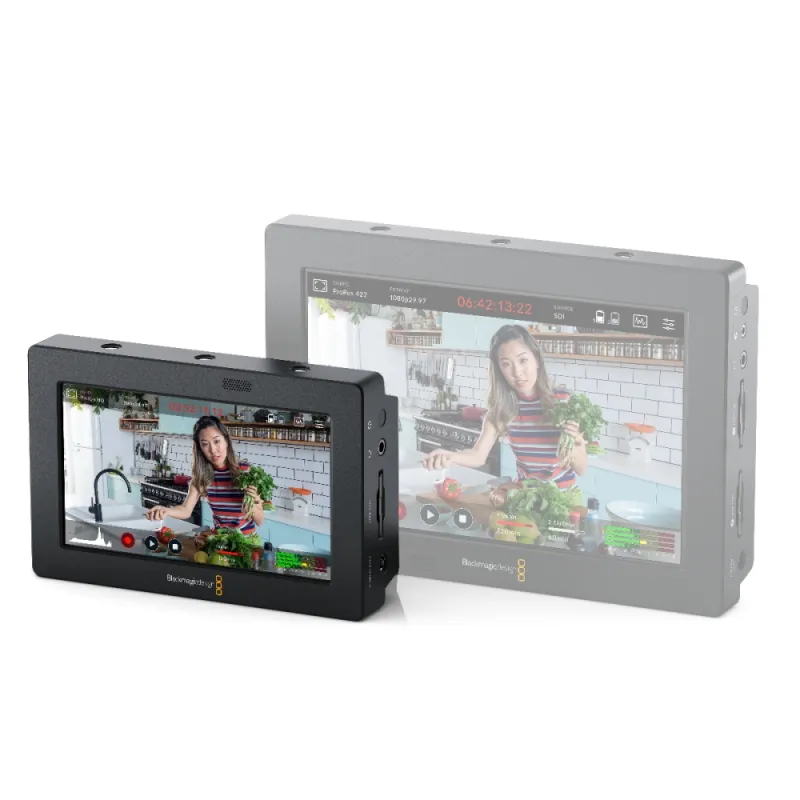

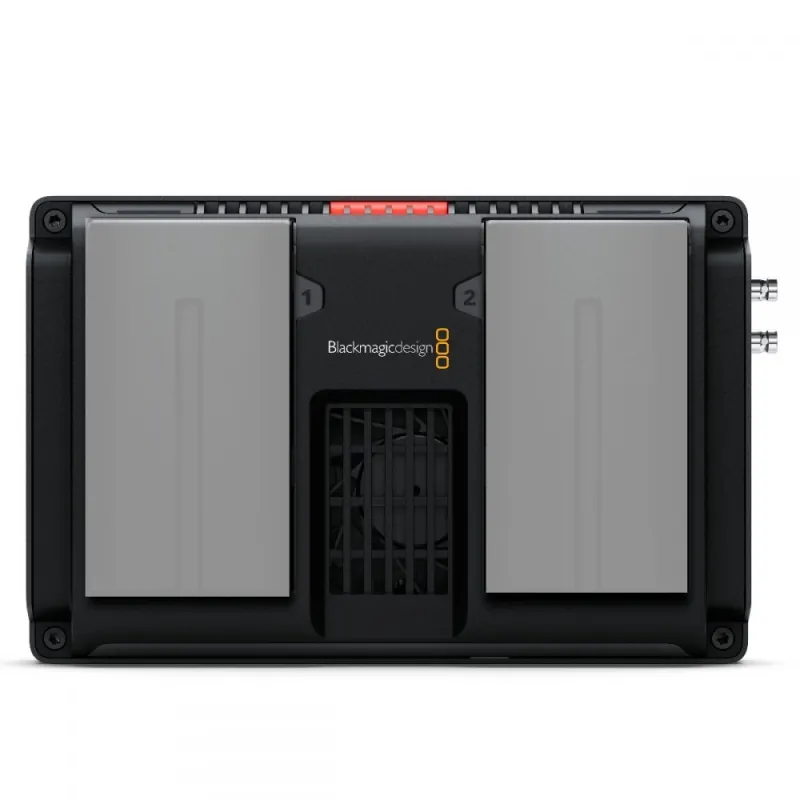

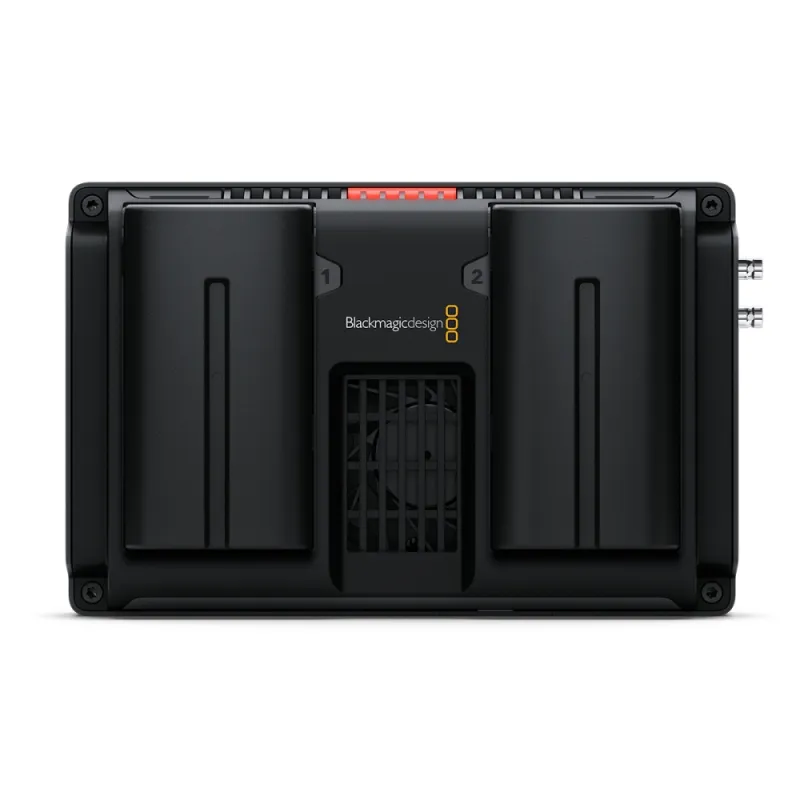

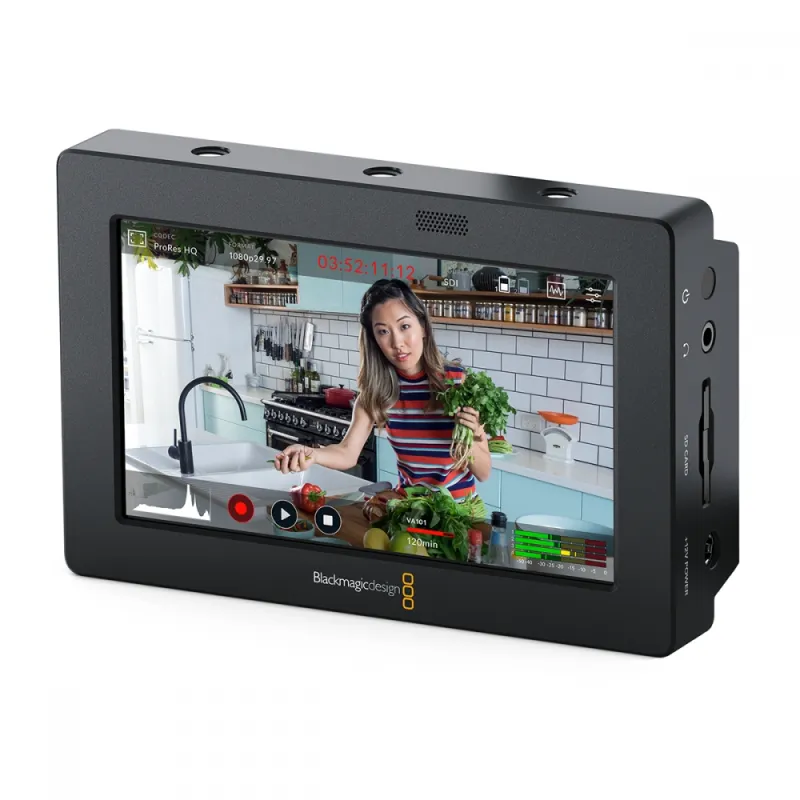

The Blackmagic Video Assist 5" 3G is a versatile portable monitor, professional recorder, portable scope, and camera viewfinder solution. It enhances any SDI or HDMI camera by adding higher quality recording codecs and a larger monitor. The device features innovations such as four built-in scopes, enhanced focus assist, a tally indicator, and built-in 3D LUTs. It supports video formats up to 1080p60 and uses L-Series batteries for extended operation. Essentially, it combines four products into one compact unit.

Included in Delivery

  • Blackmagic Video Assist 5" 3G
  • Universal power supply with international adapters

Video Standards and Compliance

  • SDI SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • SDI HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
  • SDI Compliance: SMPTE259M, SMPTE292M, SMPTE296M, SMPTE425M
  • SDI Metadata Support: HD RP188
  • HDMI SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HDMI HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
  • Copy Protection: HDMI input cannot capture from copy-protected HDMI sources. Confirm copyright ownership before capture or distribution.

Audio and Video Specifications

  • Audio Sampling: 48 kHz, 24-bit television standard sample rate
  • Video Sampling: 4:2:2 YUV color precision, 10-bit
  • Color Space: REC601, REC709
  • Multiple Rate Support: SDI and HDMI switch between 270 Mb/s, 1.5 Gb/s, and 3 Gb/s

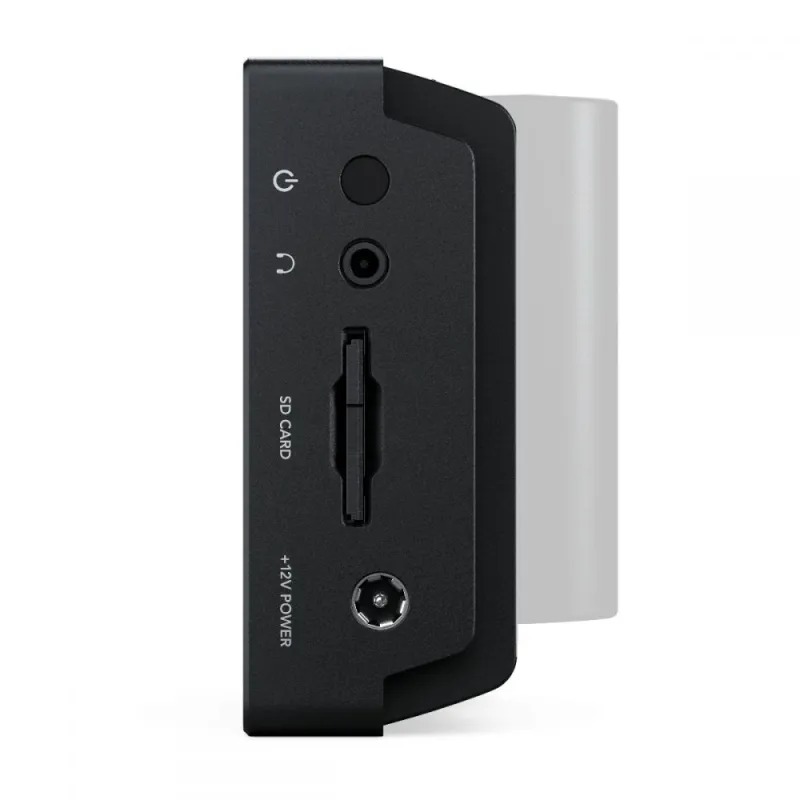

Media and Codec Support

  • Media: 1 x UHS-I SD slot supporting SDXC UHS-I and SDHC UHS-I cards
  • Supported Codecs: ProRes 422 HQ, ProRes 422, ProRes 422 LT, ProRes 422 Proxy, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF

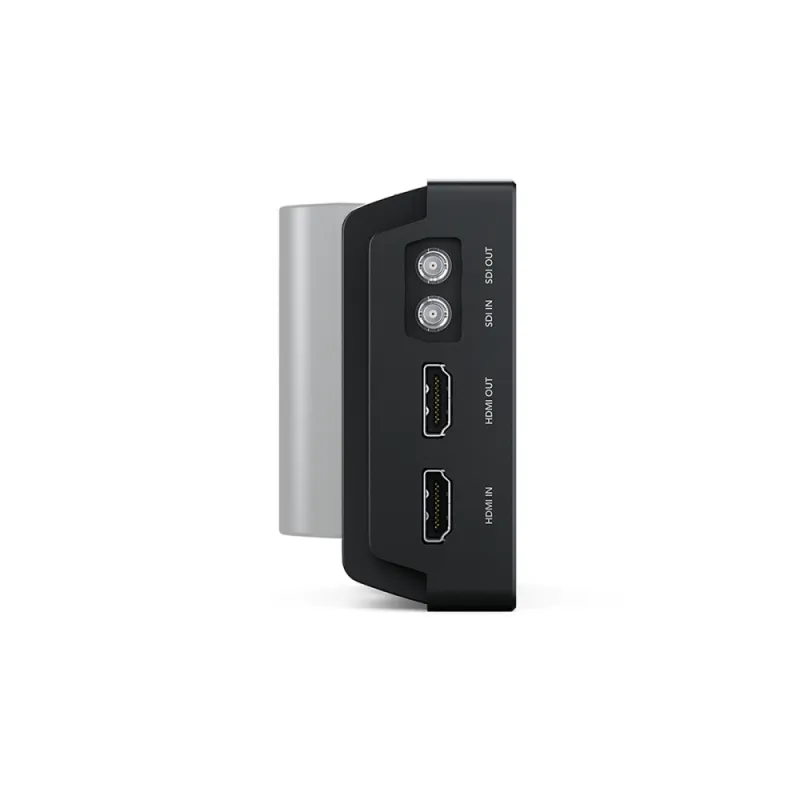

Connectivity

  • SDI Video Inputs: 1 x Micro BNC
  • SDI Video Outputs: 1 x Micro BNC
  • SDI Rates: 270 Mb, 1.5 G, 3 G
  • HDMI Video Inputs: 1
  • HDMI Video Outputs: 1
  • Analog Audio Inputs: None (embedded audio only)
  • Analog Audio Outputs: 1 x 3.5 mm headphone jack
  • Built-in Speaker: Mono
  • SDI Audio Inputs: 16 channels embedded via SDI
  • SDI Audio Outputs: 16 channels embedded via SDI
  • HDMI Audio Inputs: 8 channels embedded via HDMI
  • HDMI Audio Outputs: 8 channels embedded via HDMI
  • Computer Interface: 1 x USB Type-C for initial setup, software updates, and Video Assist Utility software control

Display

  • Screen Size: 5 inches
  • Resolution: 1920 x 1080 pixels
  • Brightness: 300 nits

Controls and Operation

  • Recorder Control: Integrated capacitive touchscreen LCD with Blackmagic OS on-screen controls for settings and menu navigation
  • External Control: SDI and HDMI start/stop, timecode run
  • Remote Control: None

Storage

  • Storage Type: SDXC UHS-I and SDHC UHS-I SD cards supporting DS, HS, SDR12, SDR25, DDR50, SDR50, and SDR104 standards

Environmental Specifications

  • Operating Temperature: 0° to 40° C
  • Storage Temperature: -20° to 45° C
  • Relative Humidity: 0% to 90% non-condensing
