ATOMOS SHINOBI 7RX
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Monitor (on-camera) |
| Products with discount (%) | A bit cheaper (less 10%) |
| Battery type | Dual L-Series / NP-F compatible |
| Dicsount amount (€) | 20 - 50 € |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Key Features
- 7" 1920 x 1080 Touchscreen HDR Display
- Wi-Fi Camera Control, Focus, Streaming
- HD 3G-SDI & 4K60 HDMI 2.0 Input & Output
- 2200 cd/m² Brightness
- Dual L-Series Battery Slots, USB-C PD In
- HDMI/SDI Cross Conversion
- AtomOS, 3D LUT Support, LANC Control
- 10-Stop Dynamic Range
- Supports a Variety of Log Formats, Tools

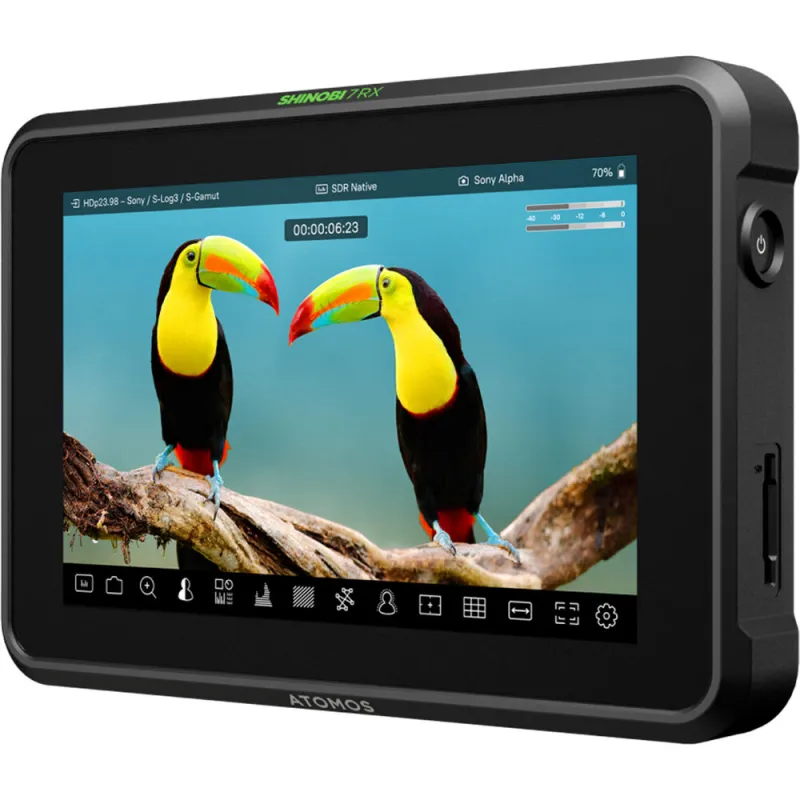

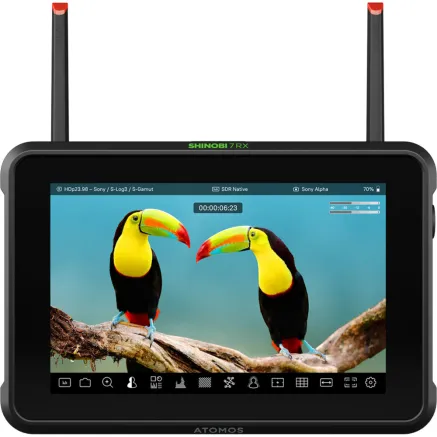

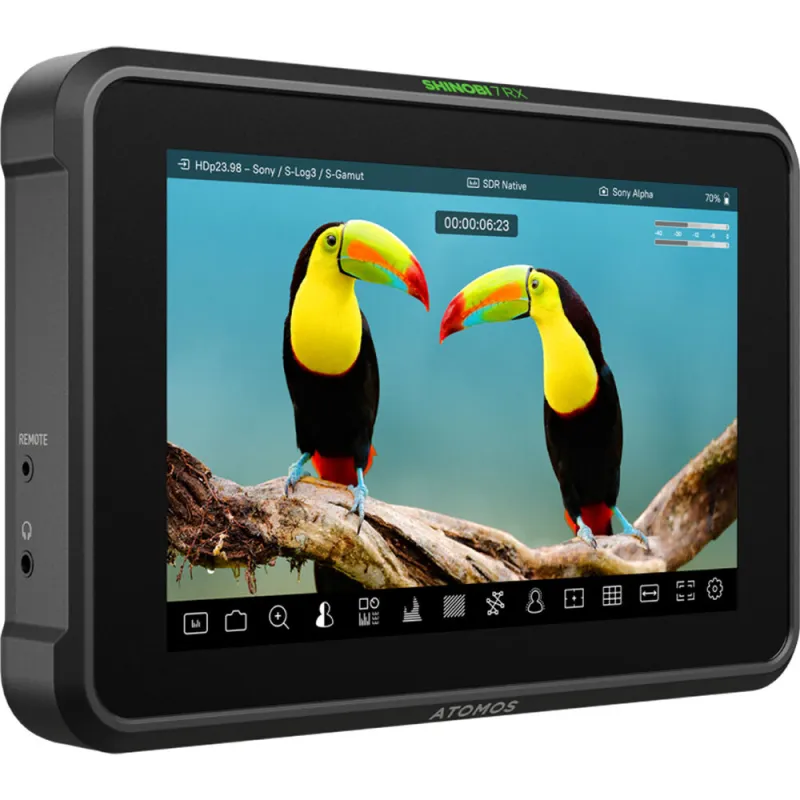

Add a bright, high-resolution on-camera monitor to your live production kit for your focus puller, director, or camera assistant with the Shinobi 7 RX HDMI/SDI HDR On-Camera Monitor/Wireless Receiver from Atomos. This 7" high-bright HDR monitor provides the ability to view 4K footage remotely via Wi-Fi while also providing remote focus and camera control in an Atomos TX/RX environment or via wired USB/serial.
7" Daylight Viewable Screen
The Shinobi 7 RX features a 7" IPS LCD 1920 x 1080 screen that is illuminated by a bright 2200 cd/m² LED backlight, making it possible to view in daylight without requiring a hood. Plus, the screen is also color calibrated from the factory to ensure accurate image representation.
Built-In Wi-Fi 6E
The Shinobi 7 RX provides built-in Wi-Fi to pair with an Atomos TX device, and it can even view external RTSP H.264 streams with low-latency wireless under 60ms from up to 984 feet away. This allows your crew to move elements on the set freely without losing visual connection.
High-Resolution Connectivity
- Monitor 4K footage in DCI or UHD 4K formats via HDMI 2.0 up to 60 fps and up to 1080p60 via 3G-SDI
- Output signal via HDMI and 3G-SDI loop outputs
- The Shinobi 7 RX features HDMI/SDI cross conversion support
Touch to Focus
While connected to a compatible camera, you can simply tap the Shinobi 7 RX touchscreen for the camera to automatically focus on your point of interest. Touch to focus takes advantage of camera focus modes such as focus tracking for effortless control.
Power & Versatile USB-C Connection

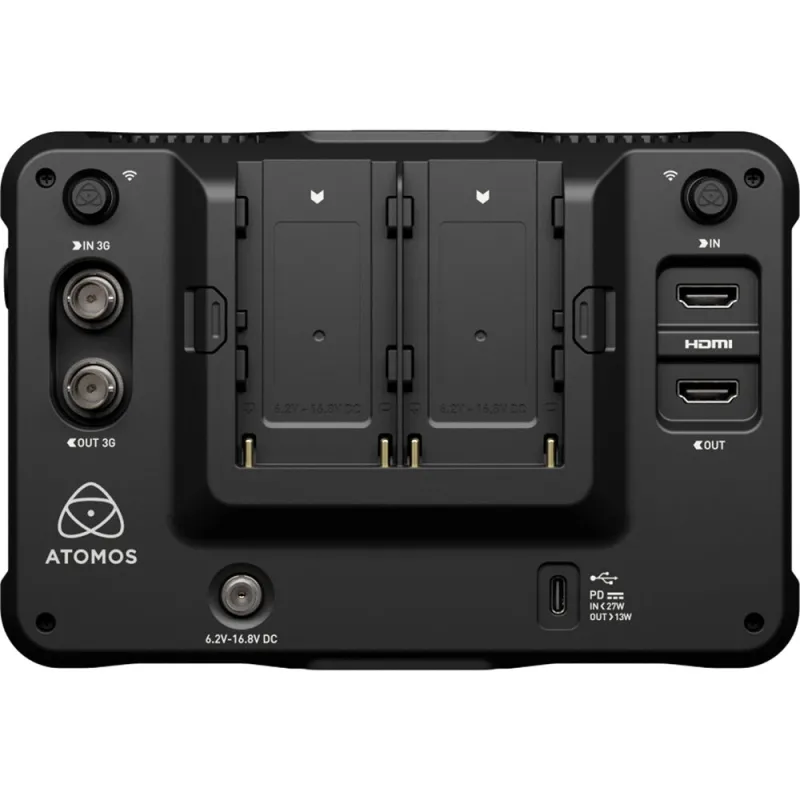

The back of the monitor features dual NP-F/L-series battery slots for longer shoot durations, and it can also accept optional battery eliminators/dummy batteries. You can also power the monitor via a USB-C PD input via an optional adapter, external battery, or power bank. In addition to providing power, the USB-C port can provide camera control for supported cameras.
Supported Log Formats
The monitor supports numerous Log formats, including:
- Sony SLog / SLog2 / SLog3 / HLG
- Canon C-Log / C-Log2 / C-Log3
- ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600
- Panasonic V-Log / HLG, JVC J-Log
- RED RedLogFilm / Log3G10 / Log3G12
- FUJIFILM F-Log, PQ (HDR10), HLG
- Nikon N-Log
HDR Monitoring
The monitor supports numerous HDR formats, including:
- BT.2020, DCI P3, DCI-P3 D65, and Rec. 709
- Sony S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec. 709
- Canon Cinema DCI P3 / DCI P3plus / Rec. 709
- Panasonic V Gamut
- ARRI ALEXA Wide Gamut
- JVC LS300
- RED DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
Audio Monitoring
Input/output embedded audio via HDMI and SDI, and output audio using the 3.5mm headphone port for convenient audio monitoring. There's also a 3.5mm stereo line audio input to monitor external sound.
Image Tools
The monitor runs the latest AtomOS firmware that features a variety of onscreen analysis tools such as multi-scope views, exposure, framing, focus assist, waveform, RGB parade, and histogram tools. An SD card slot allows you to load custom 3D LUTs and apply them to both input and output signals.
Camera Control
The Shinobi 7 RX supports intuitive camera control for Canon, FUJIFILM, Nikon, Panasonic, Sony (via USB-C), and Z CAM E2 (via optional serial cable). Its intuitive interface makes adjusting aperture, shutter speed, and ISO fast and responsive.
Calibration
The Shinobi 7 RX monitor can be calibrated with Calibrite Display Pro HL/Plus HL probe, and using the Atomos Calibrator app, for ongoing accurate HDR and Rec. 709 monitoring.
Anamorphic De-Squeeze
The Shinobi 7 RX supports anamorphic de-squeeze, allowing you to comfortably view anamorphic footage with a squeeze of 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, and 1.25x.
UPC
UPC 814164023351
