KUPO KS-273 V-LOCK SET KS-273

KS-273 / V-LOCK SET

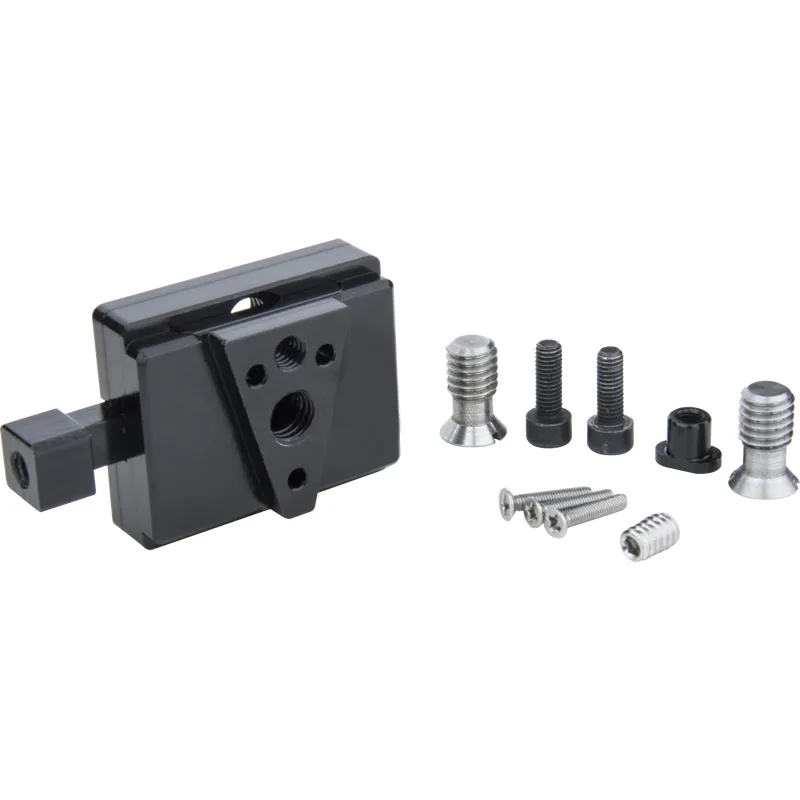

The quick release V-lock set includes the wedge and base, which are precisely machined from black anodized aluminum with tight tolerances to minimize wiggles. The V-Lock Wedge can be bolted into M3 to the standard V-mount battery or any device that comes with a 1/4-20 or 3/8-16 hole using the supplied screws. The V-lock base can also be bolted into M5 to attach to a Convi clamp with the supplied screws and one 3/8 to M5 adapter. The two 3/8-16 tapped holes on the back are spaced 1 inch (center to center), allowing the base to be mounted on any standard cheese plate. The extension handle, which comes with a 1/4-20 male thread, can be mounted on the knob, allowing it to extend 25 cm long. All the screws listed below are included.

Included Components:

• (1) 6061 aluminum wedge x 1 pc
• (2) 6061 aluminum base x 1 pc
• (3) M3 x 15 Phillips flat head screw x 3 pcs
• (4) 3/8-16 slotted countersunk head screw x 2 pcs
• (5) M5 x 14 hex socket cap screw x 2 pcs
• (6) 1/4-20 set screw x 1 pc
• (7) 3/8 to M5 adapter x 1 pc

Weight: 123 g
