TelyCam Vision+ 4KZ BK Box Camera
AI ASSISTANT CHAT
Or ask about:
| Type of Product | PTZ Camera |
| CMOS Sensor | 9MP |
| Video Resolution | 4K |
| Optical Zoom | 20x |
| Video Interface | USB 2.0 |
| Video Interface | HDMI |
| Tracking | Auto Tracking |
| Tracking | Auto Framing |
| Features | Live Streaming Capability |
| Features | Plug-n-Play Technology |
| Features | NDI HX3 Technology |
| IP Video | NDI HX3 |
| Angle Of View | 60 Degree |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Overview

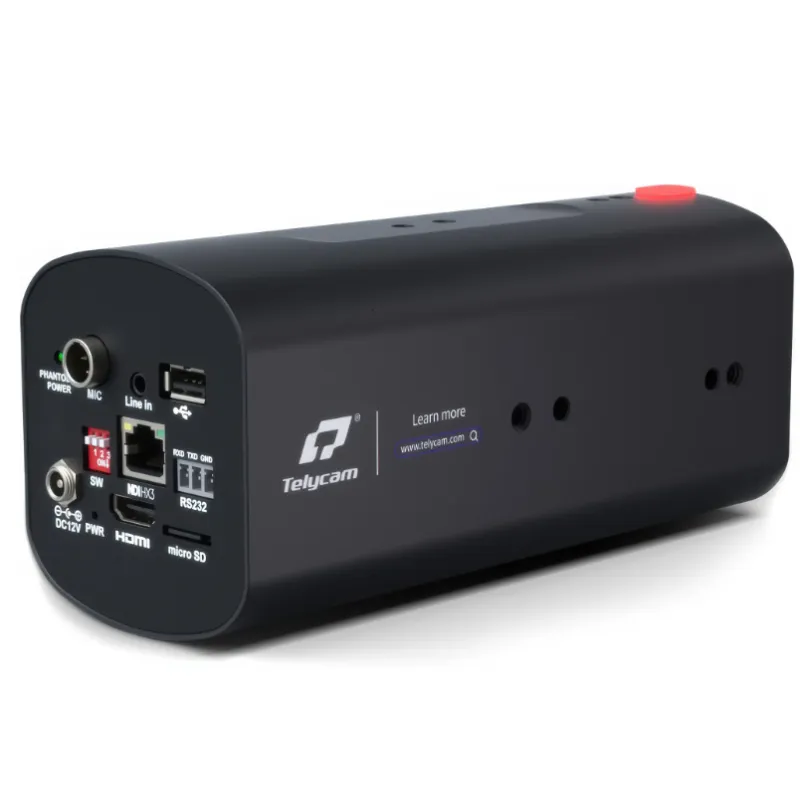

The Telycam Vision+ 4KZ BK Box Camera delivers UHD 4K60 video with 20X optical zoom, dual smart CROP tracking, and NDI HX3 streaming support. Perfect for multi-camera productions, live streaming, and professional broadcast setups, it combines advanced image processing with studio-grade audio and flexible connectivity.
This high-performance UHD 4K solution features a 1/1.8-inch 9MP CMOS sensor and 20X optical zoom lens, delivering ultra-high-definition 4K video at 60fps with precise color consistency across multi-camera setups. The camera's advanced image processing ensures crisp, lifelike images even in low-light environments.
Equipped with built-in CROP dual smart tracking modes (Auto Framing and Auto Tracking) for resolutions of 1080P and below, the Vision+ 4KZ intelligently centers or follows subjects during live events. Integration of the latest NDI HX3 SDK enables plug-and-play compatibility with a wide range of live streaming and broadcast platforms. Multi-interface outputs, including HDMI 2.0, USB 2.0, and NDI HX3, plus dual audio inputs with 3.5mm line-in and Mini XLR with +48V phantom power, allow for complete professional setups. The side control panel provides quick access to key image parameters and IP configuration, streamlining workflow for fast-paced productions.
Ideal for houses of worship, conference halls, studios, and live performance venues, the Telycam Vision+ 4KZ BK Box Camera combines flexibility, precision, and advanced automation in a compact and lightweight design.
Key Features
- Ultra HD 4K (3840x2160) at 60fps via HDMI
- 20X optical zoom with 61° horizontal FOV
- Dual CROP smart tracking: Auto Framing & Auto Tracking
- Perfect color match with Vision+ 4KN 20X PTZ for multi-camera setups
- Built-in NDI HX3 for plug-and-play IP streaming
- Dual audio inputs: 3.5mm line-in & Mini XLR with +48V phantom power

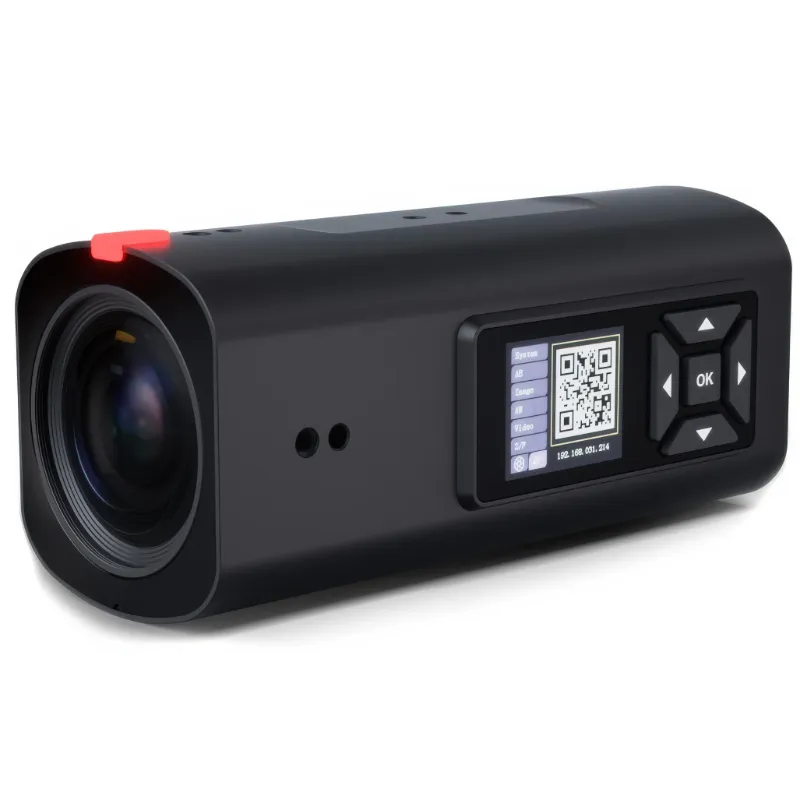

- Side panel for quick access to image parameters and IP address
- PoE+ support for simplified cabling and power management
- Integrated tally light for live streaming status
Included Accessories
- 1 Telycam Vision+ 4KZ BK Box Camera
- 1 Power Adapter (if included)
- 1 Mounting Hardware
- 1 User Manual
Specifications
- Sensor: 1/1.8 9MP UHD CMOS
- Lens: 6.25-112.5 mm, F1.5-3.9, 20X optical zoom
- Field of View: Horizontal 61.3°, Vertical 34.1°, Diagonal 60.7°
- Min Working Distance: 1.0 m
- S/N Ratio: 50 dB
- Image Controls: Auto/Manual focus, iris, shutter; Noise reduction 2D/3D; White balance presets; Anti-flicker; Backlight compensation; Gamma support; Image flip/mirroring

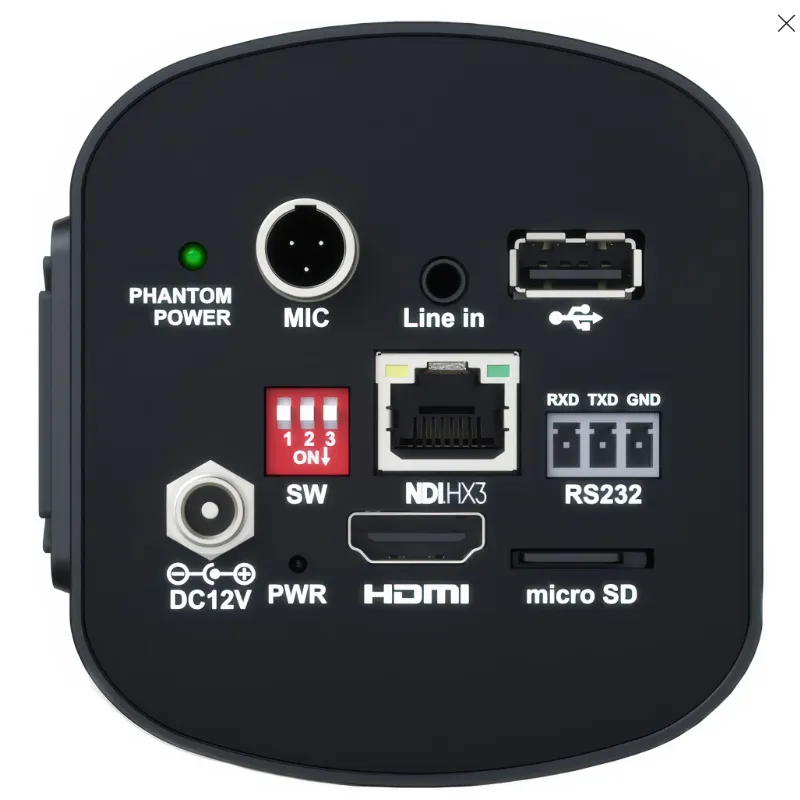

- Video Output: NDI HX3, HDMI 2.0, USB 2.0 (NV12, YUYV, MJPG formats)
- IP Streaming: H.264/H.265, VBR/CBR, NDI HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP, SSDP, WebRTC
- Audio Input: Stereo 3.5mm line-in, Mini XLR with +48V phantom power
- Control Ports: RS232, RJ45
- Tally: Yes
- Power: DC12V, PoE+ (IEEE802.3bt)
- Operating Conditions: -10°C to 50°C, 80% humidity
- Dimensions & Weight: 82 x 85.3 x 186.5 mm, 0.95 kg
- Color: Black
