FNIRSI DSO510 Portable 2-in-1 Mini Oscilloscope Signal Generator

FNIRSI DSO510 portable mini 2-in-1 oscilloscope signal generator

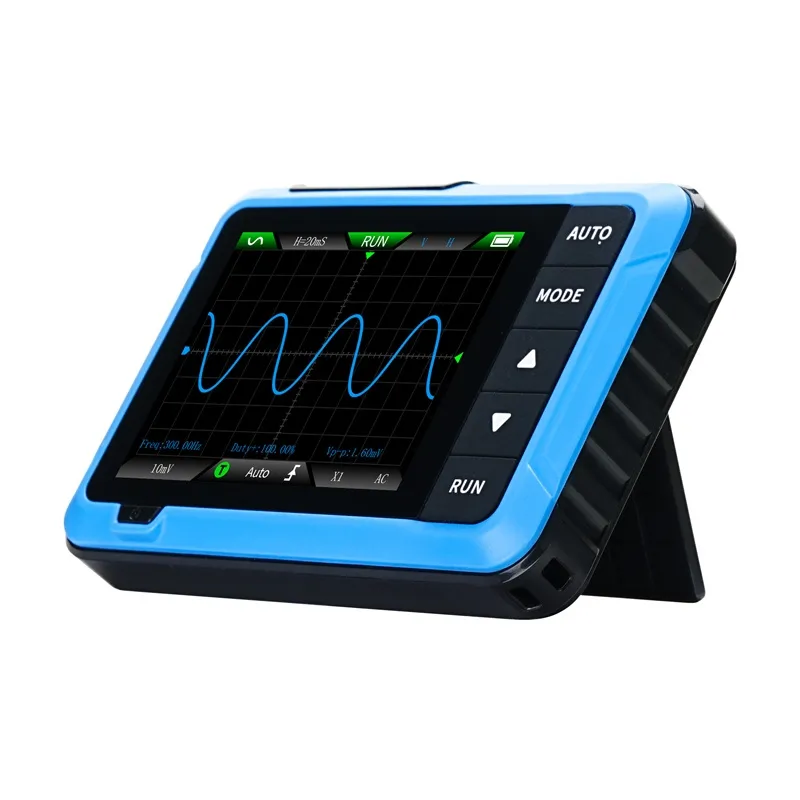

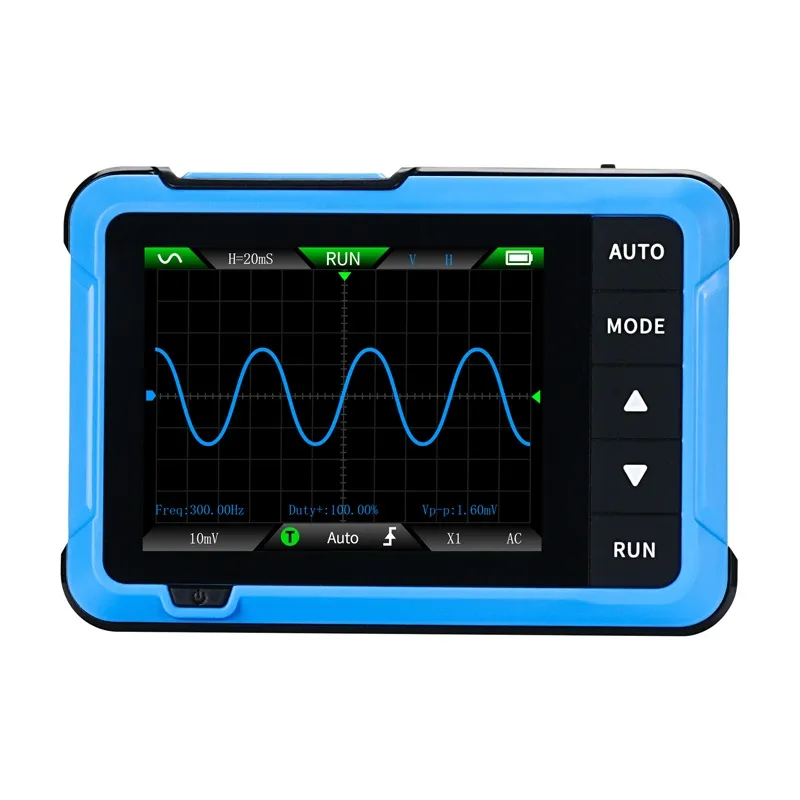

The FNIRSI DSO510 is a portable 2-in-1 oscilloscope and signal generator with a 10 MHz bandwidth that combines compact size with advanced functionality. The device offers intelligent functions such as automatic adjustment, surge protection, trigger level display and image recording capability. With its adjustable glow, it enables efficient tracking of transients, and supports stopping, zooming and panning of waveforms for precise analysis. The built-in generator offers 13 waveforms, supporting learning and testing. The compact size and foldable stand provide convenience in any environment. The device works well in measuring line voltage, pulse signals and other waveforms. Long operating time is guaranteed by a 1000 mAh battery, charged via a USB-C port. It is an excellent choice for both professionals and electronics enthusiasts.

Smart features for maximum precision

The DSO510 oscilloscope offers a number of smart features that support efficient signal detection - from auto-adjustment to trigger level display to a 1 kHz rectangular waveform calibration function. With image storage, burn-in protection and a software update option via the USB-C port, the device guarantees reliable performance and readiness for future enhancements. With an adjustable afterglow function (Afterglow off, 500 ms, 1 s), the device enables smooth tracking of dynamic signals. This is an ideal tool for analyzing transient phenomena and capturing even the smallest changes in waveforms.

Advanced waveform analysis

The DSO510 supports stopping, zooming and shifting waveforms, allowing in-depth analysis of even the most complex signals. The device is perfect for detecting hidden interference and analyzing complex modulations.

Signal generator with 13 waveforms

The built-in signal generator offers 13 adjustable waveforms, making it an extremely useful tool for learning how to use oscilloscopes and experiments. It is an excellent support for beginners and a practical addition for professionals.

Thoughtful design

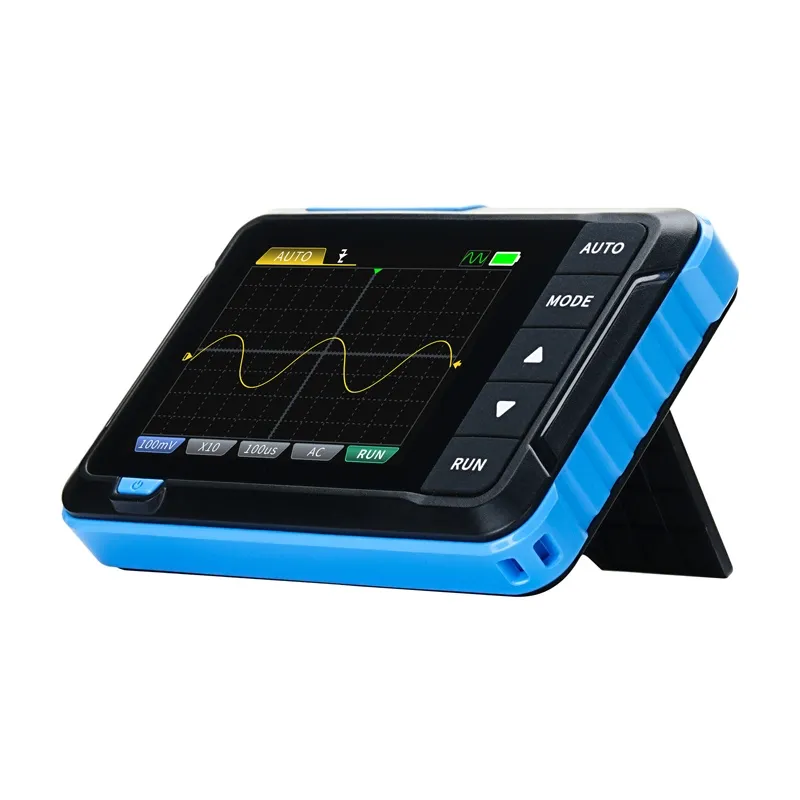

The DSO510 fits easily in the palm of your hand - its ultra-thin, lightweight design frees you from the problem of bulky equipment. The folding stand that can be adjusted to a 90 angle allows convenient hands-free operation. Thanks to its robust design and high-sensitivity buttons, operation is simple and intuitive. In addition, powered by a built-in 1,000 mAh lithium-ion battery, the DSO510 provides long runtime with an automatic shut-off function when not using the tool. Charging and software updates are conveniently done via the USB-C connector.

Included

• mini oscilloscope
• probe with crocodile clip
• charging cable
• lanyard for carrying
• adapter
• P6100 probe
• user manual
