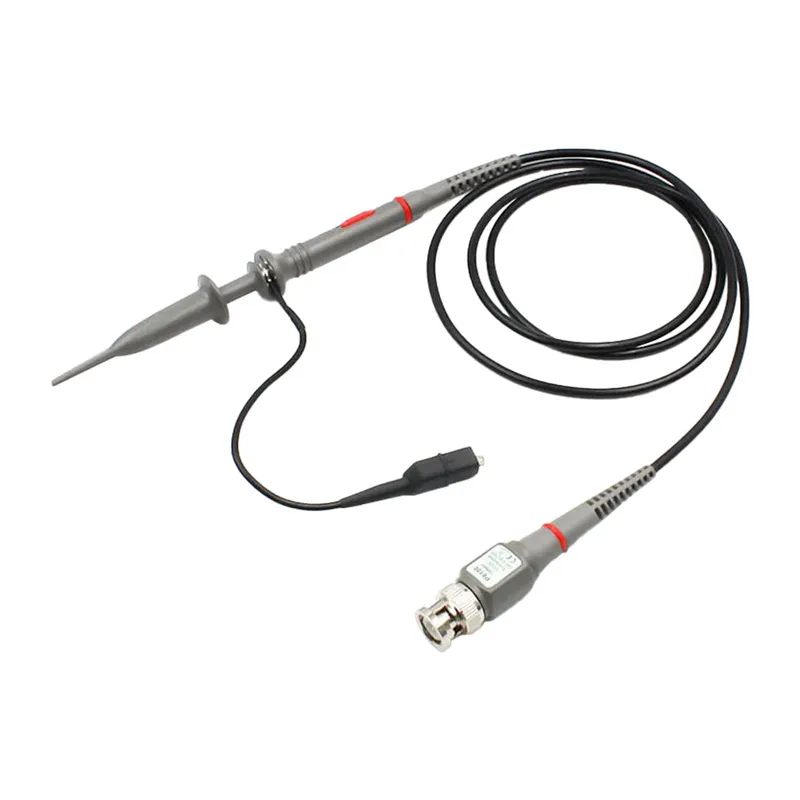

Fnirsi P6100 oscilloscope probe

Safe operation with higher voltages

In 1X mode, the probe supports voltages up to 200 V DC + AC Peak, and in 10X mode up to 600 V DC + AC. These parameters allow for comfortable work with many popular electronic devices and power modules. The appropriate voltage range increases safety and expands the range of applications.

Convenient cable length

The 120 cm long cable provides freedom of movement at the measuring station. This allows you to conveniently connect the probe even in less accessible places without excessive cable tension. The whole thing weighs about 80 g, so the probe does not burden the connector and fits well in your hand.

Included

• Fnirsi P6100 oscilloscope probe

Specifications

• Frequency response: DC 6 MHz (1X mode), DC 100 MHz (10X mode)
• Attenuation ratio: 1:1
• Input capacitance: 1X 85 pF - 120 pF, 10X 18.5 pF - 22.5 pF
• Compensation range: 10 pF - 30 pF
• Rise time: < 3.5 ns
• Operating voltage: 1X < 200 V DC + AC (peak), 10X < 600 V DC + AC
• Cable length: 120 cm
• Operating temperature range: -10°C to +50°C
• Storage temperature range: -20°C to +75°C
• Humidity: 5% (relative humidity)
• Weight: 80 g
• Color: gray-black
