Swit PA-J416 1-to-4 Power Distribution Box

Overview

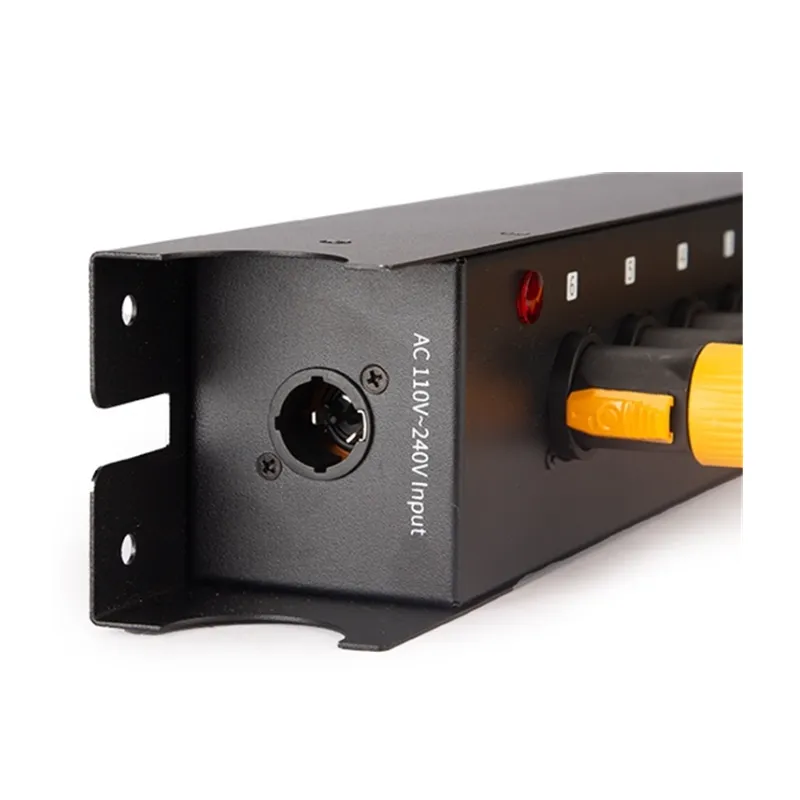

The SWIT PA-J416 is a robust 1-to-4 power distribution box designed for safe, reliable lighting power management in studios and broadcast environments, featuring a 20A max current capacity, self-locking aviation plugs, and a durable cast iron housing.

The SWIT PA-J416 1-to-4 Power Distribution Box provides a stable and efficient solution for power distribution in lighting setups, especially suited for TV stations, theaters, studios, and live broadcast rooms. Designed with excellent heat insulation, impact resistance, and flame retardancy, the unit ensures safety and durability in demanding environments. The distribution box's compact design matches installation bracket structures, enabling convenient hanging on lighting grilles via lamp hooks. Featuring a 3-core 16A self-locking aviation plug, the PA-J416 offers secure and controllable power input with a maximum current of 20A and a max load of 3500W. The device supports wide voltage input (110V to 240V, 50Hz), making it versatile across different power systems. A power indicator light visually confirms operation status, enhancing safety and maintenance. This power distributor effectively manages multiple lighting cables, reducing clutter and improving workflow in various professional settings such as media centers, interview studios, and panoramic studios.

Key Features

• 4-way power distribution box for lighting setups
• Maximum current 20A; maximum load 3500W
• Wide voltage input 110V-240V, 50Hz
• 3-core 16A self-locking aviation plug for secure connection
• Durable cast iron housing and fiberglass plug for impact and flame resistance
• Power indicator light for operational status monitoring
• Easy installation with lamp hooks, compatible with lighting grilles
• Ideal for TV studios, theaters, broadcast rooms, and various studio environments

Specifications

• Output Channels: 4
• Max Current: 20A
• Max Load: 3500W
• Input Voltage: 110V-240V, 50Hz
• Plug Type: 3-core 16A self-locking aviation plug
• Housing Material: Cast iron
• Plug Material: Fiberglass
• Indicator: Power status LED
