Swit S-4020 4-Battery Power Station Box
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Power Station Box |
| Battery type | V-tipa baterijas |
| Battery type | V-type batteries |
| Accessories type | chargers |
| Barošana | ar akumulatoru vai no tīkla |
| Connections | D-tap and DC male |
| Battery Capacity, mAh | 420Wh |
| Battery Capacity, mAh | 210Wh |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
Overview

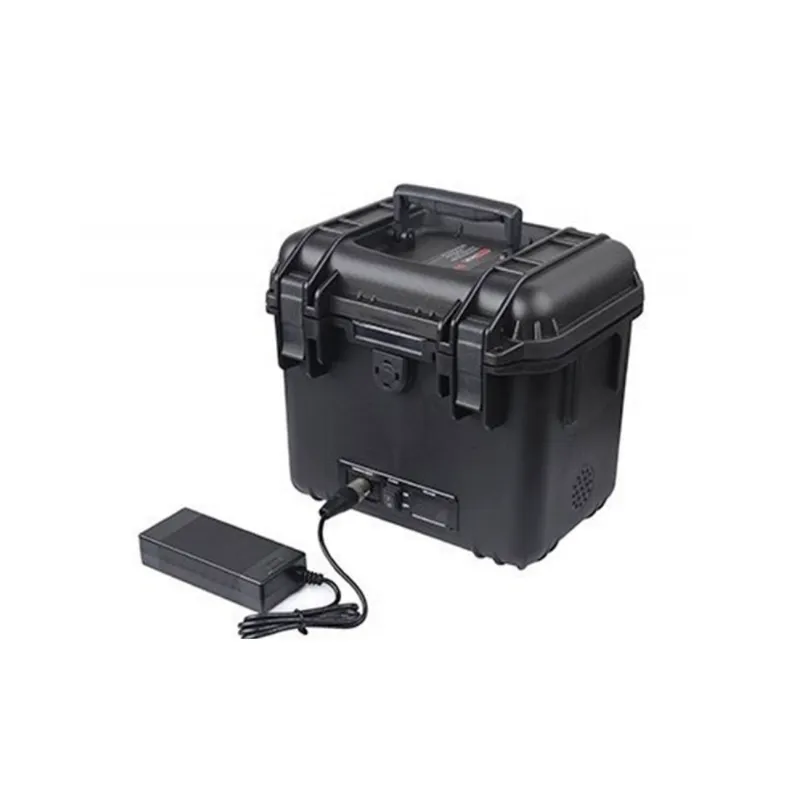

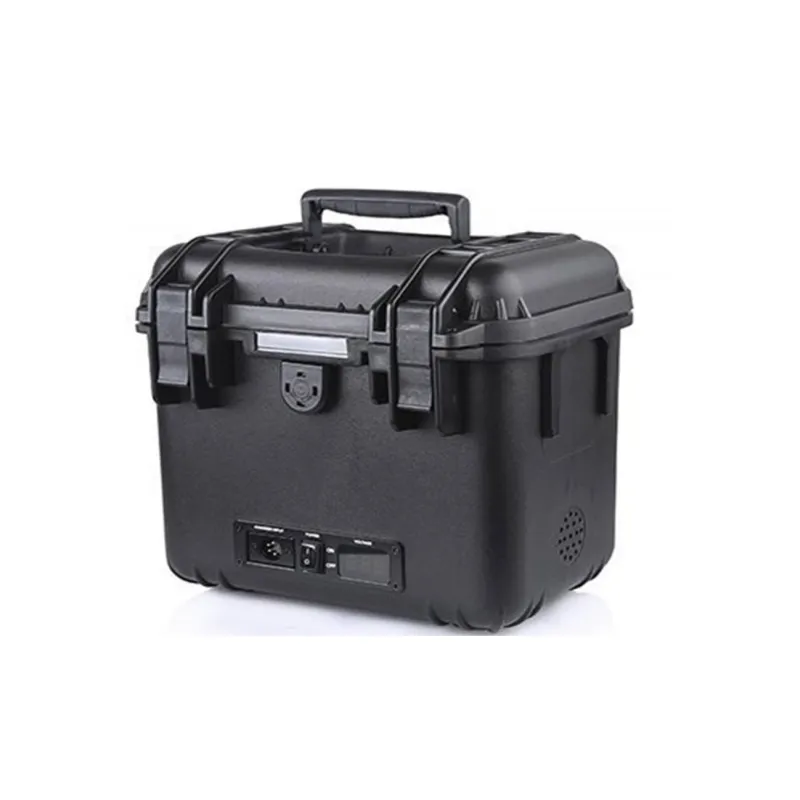

The SWIT S-4020 is a robust 12V/24V 4-battery power station box designed for high-consumption broadcast and cinema equipment. Featuring a durable PP+ fiberglass casing, dual voltage XLR outputs, intelligent protection circuits, and four included 220Wh V-mount batteries, it delivers reliable, long-lasting portable power for demanding production environments.
The SWIT S-4020 12/24V 4-Battery Power Station Box Kit is a high-capacity portable power solution engineered for film cameras, broadcast lighting, and mobile studios. Designed to house up to four V-mount batteries, the S-4020 provides significantly extended runtime compared to single battery systems, making it ideal for high-power production equipment.
Built with a strong PP+ fiberglass casing, the unit is highly durable, heat-resistant, and suitable for demanding field conditions. It offers selectable 12V or 24V XLR DC output (non-simultaneous), delivering up to 180W at 12V or 360W at 24V. An integrated LED display provides real-time voltage monitoring and low-voltage warnings to ensure safe operation.
The S-4020 features a 4-pin XLR DC charging input, allowing users to charge installed batteries without removing them. Its intelligent circuit protection system ensures safe and reliable performance with multiple protection safeguards.
This kit includes four S-8180S 220Wh high-charge V-mount batteries, each built with high-grade Li-ion cells delivering up to 140W output and 12A constant current. Each battery features a D-tap output and a 4-level LED power indicator for convenient monitoring.
Compatible with a wide range of SWIT V-mount batteries (S-8320S, S-8340S, S-8083S, S-8113S, S-8183S, S-8082S, S-8110S, S-8180), the S-4020 offers flexibility, portability, and high energy efficiency for professional production power management.
Key Features
- 12V / 24V selectable DC power output (non-simultaneous)
- Accommodates up to 4 V-mount batteries
- 12V 1116.8V / 15A (180W)
- 24V 2233.6V / 15A (360W)
- LED voltage display with low-voltage warning
- 4-pin XLR DC charging input (charge without removing batteries)
- Intelligent protection circuit design
- Strong and durable PP+ fiberglass housing
220Wh V-Mount Batteries (S-8180S)
- 14.4V nominal voltage
- 220Wh / 15.3Ah capacity
- Max output power 140W
- Max output current 12A
- D-Tap output jack
- 4-level LED power indicator
- High-grade Li-ion cells
- V-mount (V-lock) connection
Specifications
- Input (Charging) DC 16.8V / 5A (under load)
- Output 12V DC 1116.8V / 15A (180W)
- Output 24V DC 2233.6V / 15A (360W)
- Operating Temperature 0°C to +40°C
- Working Humidity 10% to 90%
- Storage Temperature -15°C to +60°C
- Dimensions 290 x 221 x 278 mm
- Net Weight 3.45 kg
Battery Specifications
- Nominal Voltage 14.4V
- Capacity 220Wh / 15.3Ah
- Maximum Output Power 140W
- Maximum Output Current 12A
- Operating Temperature 0°C to 40°C
- Dimensions 165 x 90 x 66 mm
- Net Weight Approx. 1.3 kg per battery
