Swit TD-R210S 500W Super High Load 48V/24V Flexible Stand-mounted Adaptor
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Battery Adapter Plate |
| Battery type | V-type batteries |
| Battery type | V-tipa baterijas |
| Barošana | ar akumulatoru vai no tīkla |
| Suitable for | ARRI SkyPanel S60/S120 |
| Suitable for | ARRI SkyPanel/Orbiter |
| Connections | D-tap and DC male |
| Connections | XLR to XLR |
| Connections | 5/8 spigot |
| Battery Capacity, mAh | 5000 |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease

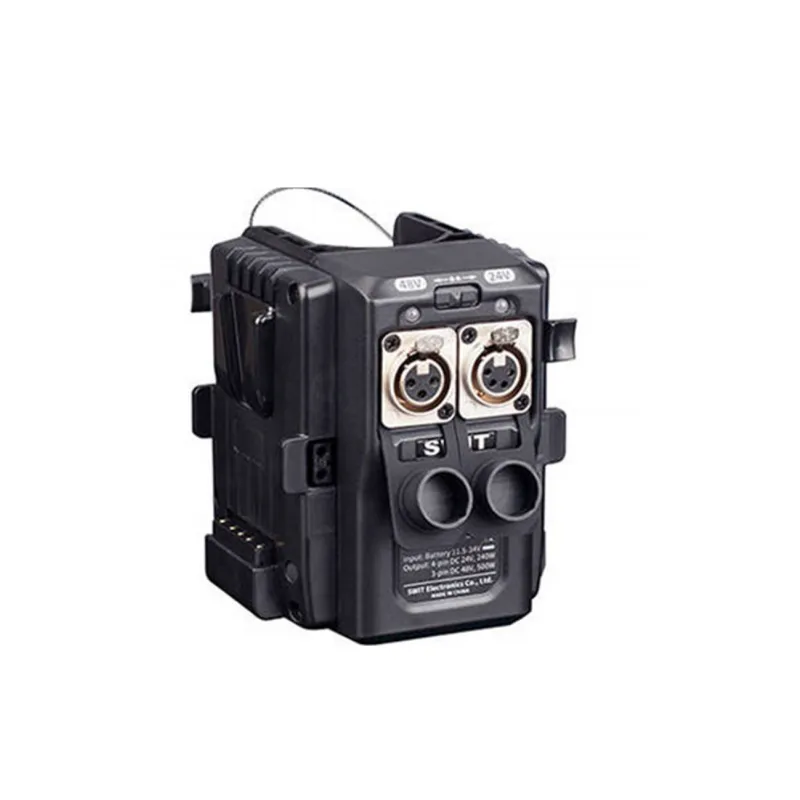

SWIT TD-R210S Bi-Voltage Light Stand Power Adapter

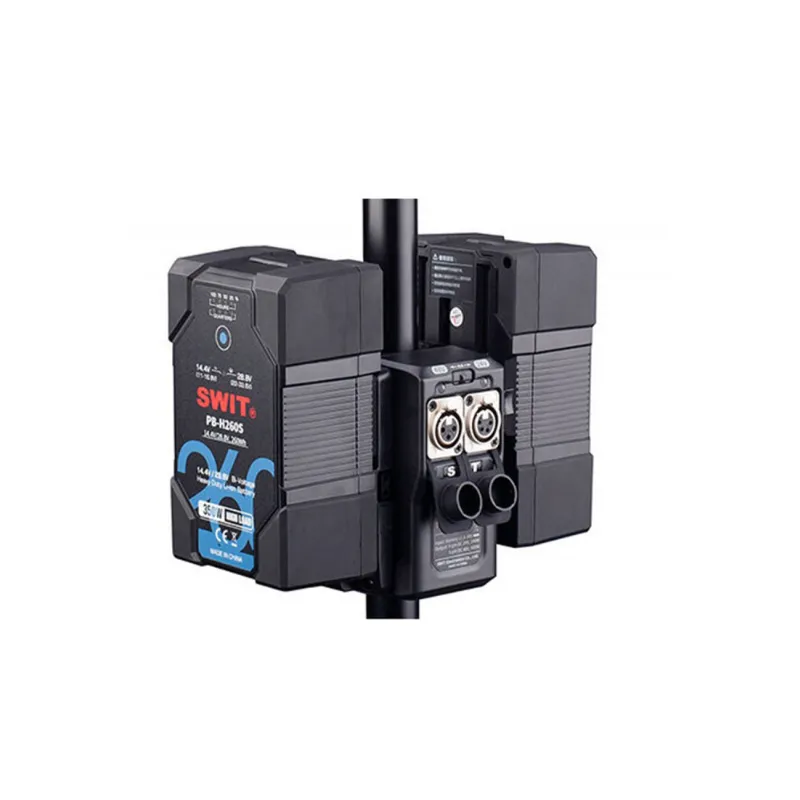

The SWIT TD-R210S Bi-Voltage Light Stand Power Adapter (V-Mount) is a high-capacity dual-battery power solution designed to run high-power 24V and 48V lighting fixtures using just two V-Mount batteries. Delivering regulated 24V (240W max) or 48V (500W max) outputs, it supports demanding lights such as Skypanel S60/S120 at full output. Built with Neutrik XLR connectors and designed for mounting on 2545mm light stands, the TD-R210S offers a portable and reliable power solution for professional studio and field productions.
The SWIT TD-R210S 500W Flexible Adapter 48V/24V is a professional dual-voltage power adapter engineered to operate high-power lighting fixtures using two V-Mount batteries. Designed for demanding broadcast, film, and studio environments, it provides regulated 24V or 48V output with strong load capacity in a compact, portable form factor.
High-power LED fixtures commonly require 24V or 48V input to achieve full brightness. The TD-R210S enables users to power such fixtures without heavy AC power supplies by installing two V-Mount batteries directly onto the unit. It delivers up to 240W via a regulated 24V 4-pin XLR output and up to 500W via a regulated 48V 3-pin XLR output, making it suitable for professional-grade lights including Skypanel S60 and S120 at 100 output.

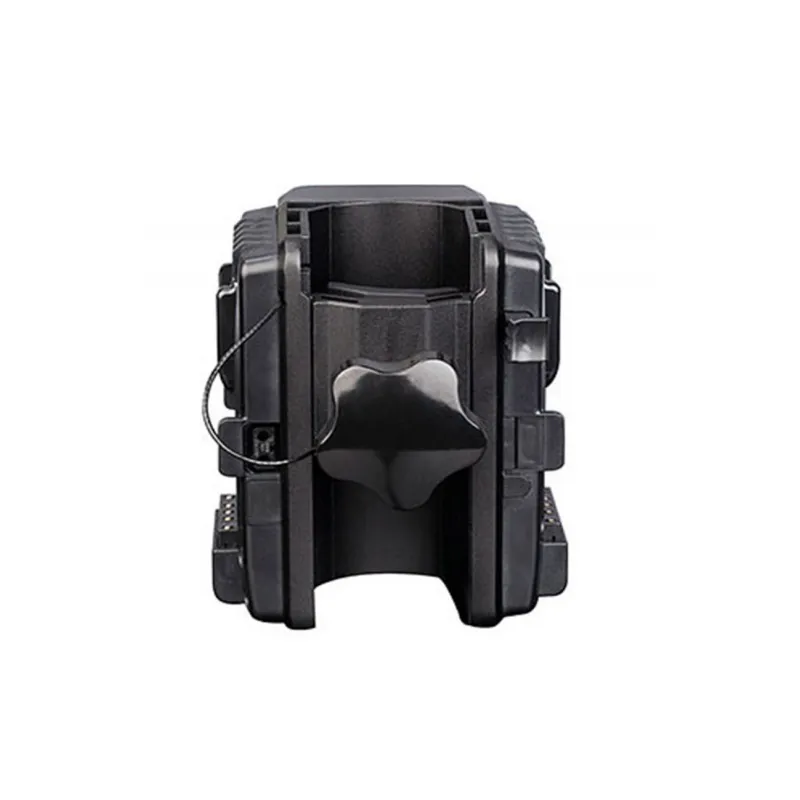

Built for reliability and safety, the adapter features high-quality Neutrik XLR connectors for secure and stable power transmission. The rugged housing is designed for direct mounting onto lighting stands or C-stands with diameters ranging from 25mm to 45mm, ensuring a clean and organized power setup on set.
Portable, efficient, and capable of handling substantial loads, the TD-R210S is an ideal battery-powered solution for high-output lighting systems in studio or on-location productions.
Key Features
- Dual V-Mount battery installation (2 V-Mount batteries)
- Regulated 24V output via 4-pin XLR (240W max)
- Regulated 48V output via 3-pin XLR (500W max)
- Supports high-power LED lights
- Suitable for Skypanel S60/S120 at full output
- High load capacity for demanding fixtures
- Professional Neutrik XLR connectors
- Mounts to 2545mm light stands or C-stands
- Portable alternative to AC power supplies
(V-Mount batteries not included)
Specifications
- Battery Type: 2 V-Mount batteries
- 24V Output: 4-pin XLR, 240W max (regulated)
- 48V Output: 3-pin XLR, 500W max (regulated)
- Maximum Output Power: 500W
- Connector Type: Neutrik XLR
- Mounting Compatibility: 2545mm light stand / C-stand
- Application: High-power 24V / 48V lighting fixtures
