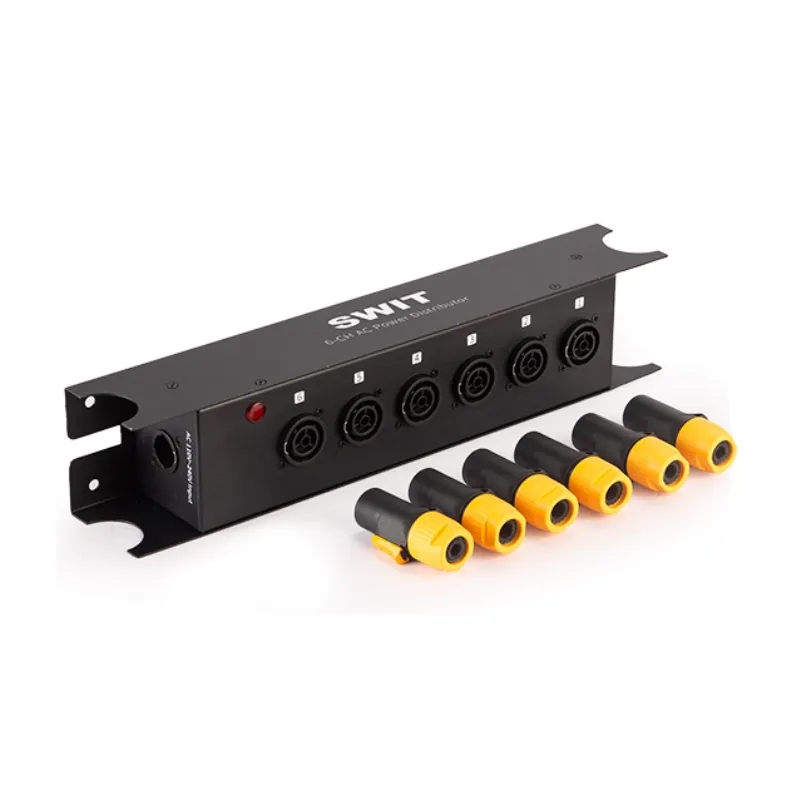

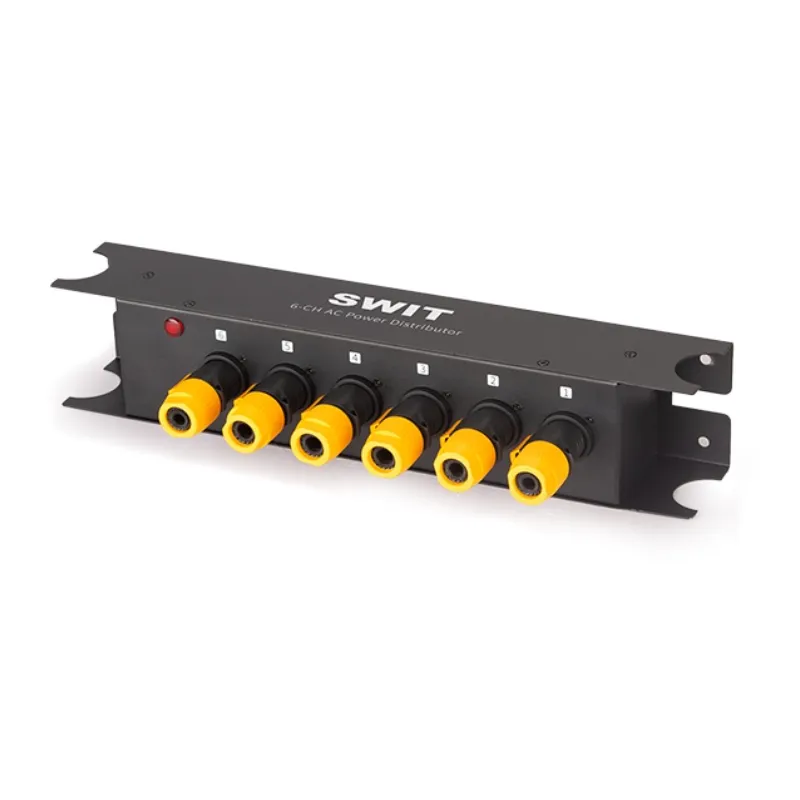

Swit PA-J616 1-to-6 Power Distribution Box

Overview

The SWIT PA-J616 is a professional 1-to-6 power distribution box designed for studio lighting systems. With wide-voltage input, high load capacity, and secure twist-lock aviation plugs, it delivers stable, safe, and organized power distribution for broadcast, studio, and stage environments.

The SWIT PA-J616 6-Way Power Distribution Box is engineered to provide stable, reliable, and safe power distribution for professional lighting installations. Designed specifically for studios and broadcast environments, it features a 1-in/6-out configuration that simplifies cable management while supporting grouped control of lighting fixtures.

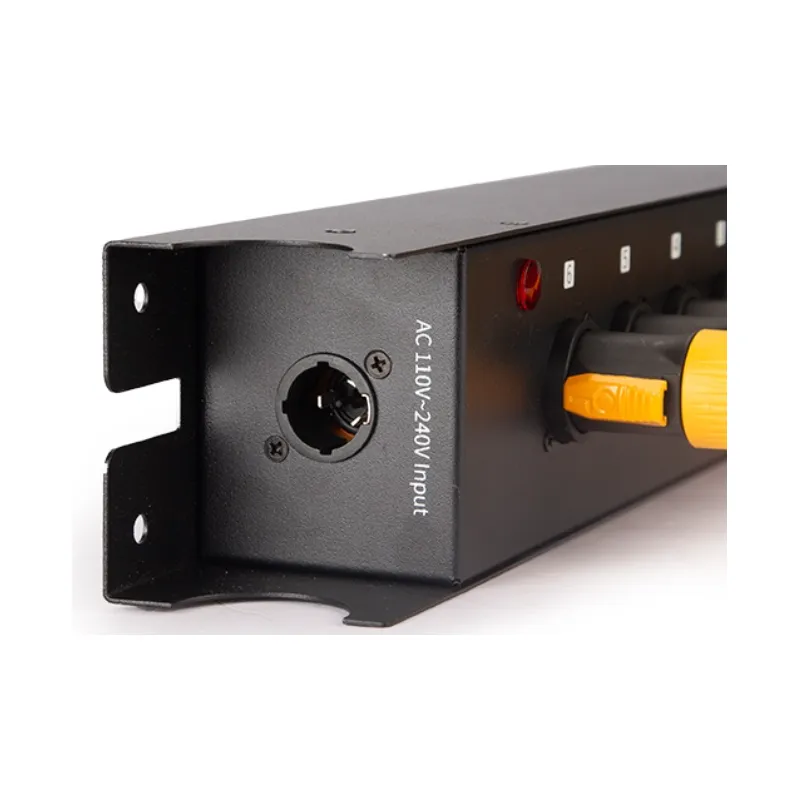

Supporting a wide AC voltage input range of 110V to 240V at 50Hz, the PA-J616 delivers a maximum load of up to 3500W with a maximum current of 20A. It uses secure 3-core 16A self-locking (twist-lock) aviation plugs for both input and output, ensuring safe and controllable power connections. Each output line can be used to connect lighting fixtures in series, making it ideal for setups where multiple lamps are powered from a single distribution point.

Built with a cast iron housing and fiberglass plugs, the PA-J616 offers excellent heat insulation, impact resistance, and flame retardancy. A built-in power indicator light provides clear visual confirmation of power status, enhancing operational safety. The enclosure design allows the unit to be easily hung on lighting grids using lamp hooks, making installation fast and efficient.

Widely used in TV stations, theaters, live broadcast rooms, virtual studios, photography studios, schools, and corporate media centers, the PA-J616 is a dependable solution for managing high-power lighting systems while reducing cable clutter and improving workflow.

Key Features

• 1-to-6 power distribution for studio lighting
• Maximum load 3500W
• Maximum current 20A
• Wide voltage input AC 110V-240V / 50Hz
• 3-core 16A self-locking (twist-lock) aviation plugs
• Group control with one light per output line
• Cast iron housing for durability and heat resistance
• Fiberglass plugs for enhanced safety
• Power indicator light for visual power status
• Designed for hanging on lighting grids
• Reduces cable clutter and improves safety

Specifications

• Model: SWIT PA-J616
• Type: 6-Way Power Distribution Box
• Input Voltage: AC 110V-240V / 50Hz
• Maximum Load: 3500W
• Maximum Current: 20A
• Plug Type: 3-core 16A twist-lock aviation plug (input & output)
• Input Cable: 3 x 2.5 mm
• Output Cable: 3 x 1.5 mm
• Housing Material: Cast iron
• Plug Material: Fiberglass
• Indicator: Power status indicator light
