Overview

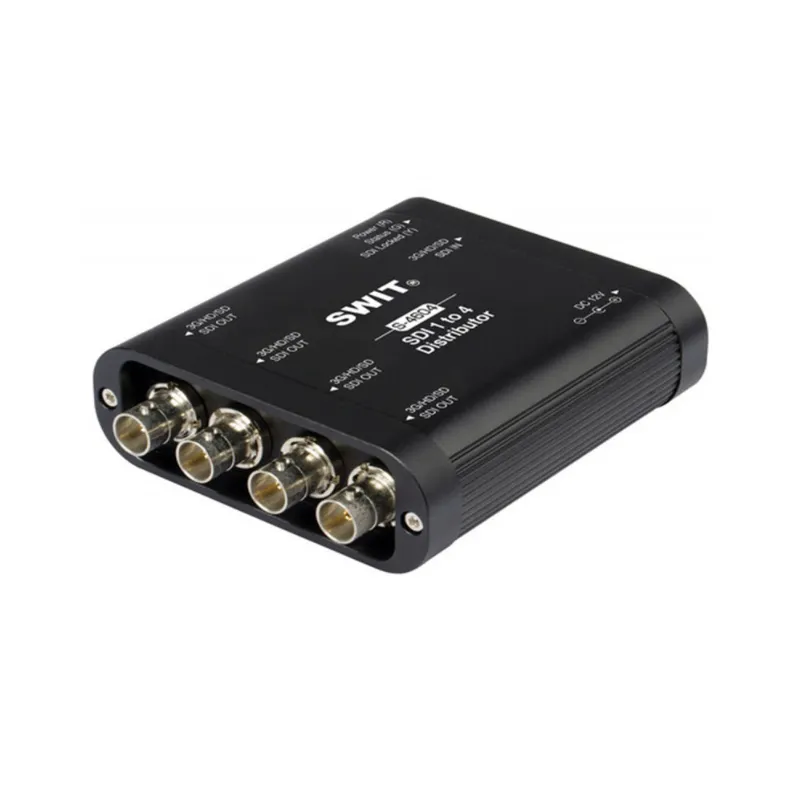

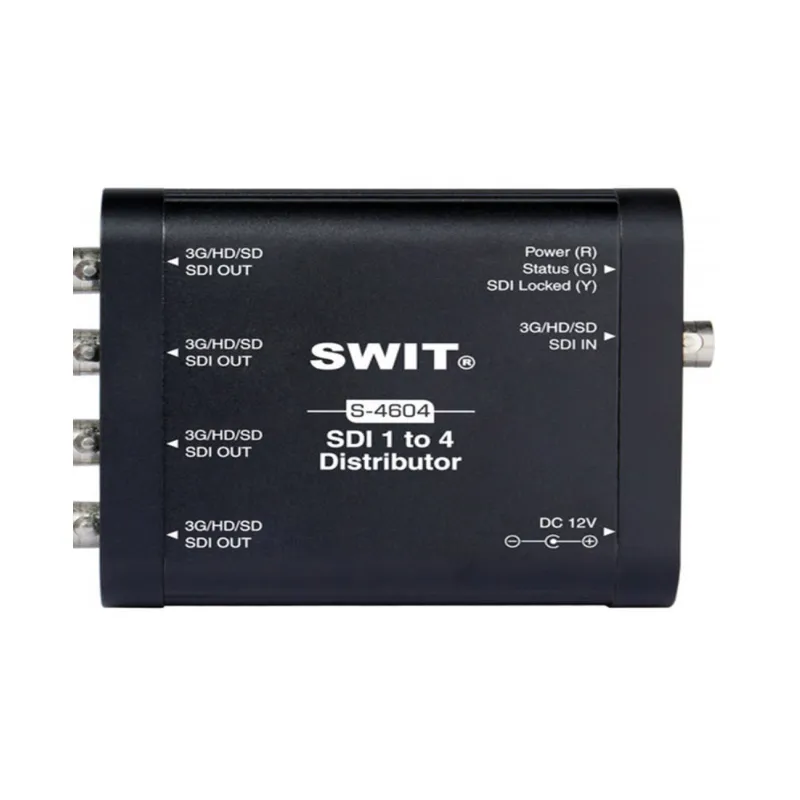

The SWIT S-4604 is a compact and heavy-duty 3G/HD/SD-SDI 1-to-4 distribution amplifier, designed to split a single SDI input into four re-clocked SDI outputs. Built with a robust aluminum casing and status indicators, it is ideal for broadcast and professional video production environments.
The SWIT S-4604 3G-SDI 1 to 4 Distributor and Amplifier is a portable and reliable SDI distribution solution for professional broadcast and production setups. It takes one 3G/HD/SD-SDI input and distributes it to four simultaneous SDI outputs, ensuring stable and high-quality signal transmission.
Featuring integrated re-clocking technology, the S-4604 regenerates the SDI signal to maintain signal integrity over longer cable runs while functioning as a high-performance SDI amplifier. Clear LED indicators display power, input, and output status for easy monitoring during operation.
Encased in a durable aluminum housing, the unit is designed for demanding field and studio use. Lower screw threads allow secure installation in fixed setups or mobile rigs. Powered via a 618V DC input, the S-4604 offers flexible low-voltage operation, making it suitable for a wide range of broadcast applications.
Key Features
- Portable 3G/HD/SD-SDI 1-to-4 distributor
- 1 SDI input, 4 SDI outputs
- Integrated re-clocking and SDI amplification
- Power, input, and output status indicators
- Robust aluminum casing
- Lower screw threads for secure installation
- Low-voltage DC power input (618V)
Type
- Distribution Amplifier
Video Input / Output
- 1 3G/HD/SD-SDI Input (BNC)
- 4 3G/HD/SD-SDI Outputs (BNC)
Power
- DC Input 618V
- 1 DC Power Input Port
Environmental
- Minimum Operating Temperature 32F (0C)
- Maximum Operating Temperature 158F (70C)
- Operating Humidity 10-90%
Construction
- Heavy-duty aluminum casing
- Mounting screw threads on bottom
