The SWIT S-4601 is a rugged HDMI to 3G-SDI converter with dual outputs and audio embedding.

Swit S-4601 Heavy Duty HDMI to 3G-SDI converter

Product ID: 13001
259,94 tax incl.
20-30
SKU: 13001
Model: S-4601
Ean: 6948193500911
Condition: New product
Manufacturer: Swit
259.94
Leasing calculator
Leasing calculator
Payment period
3
6
12
24
36
Monthly,
no

AI assistant AI ASSISTANT CHAT

This is the beta version of our new assistant chat, capable of answering both standard and advanced questions about product and store operations.

Or ask about:

What are the features? Is this in stock? Actual discounts & offers? Product reviews?
Type of ProductOther Accessories
Accessories for video cameraspārveidotāji
How to buy goods on lease?

  • 1. Evaluate your options.
  • 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
  • 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
    We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
    Manager will check the availability of the items in the cart and send the loan application link.
  • 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
  • 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
  • 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
  • 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
  • *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
    **The sequence of leasing steps is the same for leases offered by InCredit Group.
    ***In case of doubt, contact our consultants!

    When using leasing services, carefully evaluate your options to repay the loan!
  • Lease
send a message

Quick order


20-30

You can enter the delivery address and/or company details and any other necessary information here.

Write a review

Swit S-4601 Heavy Duty HDMI to 3G-SDI converter

Swit S-4601 Heavy Duty HDMI to 3G-SDI converter

The SWIT S-4601 is a rugged HDMI to 3G-SDI converter with dual outputs and audio embedding.

Write a review

Product details

Overview

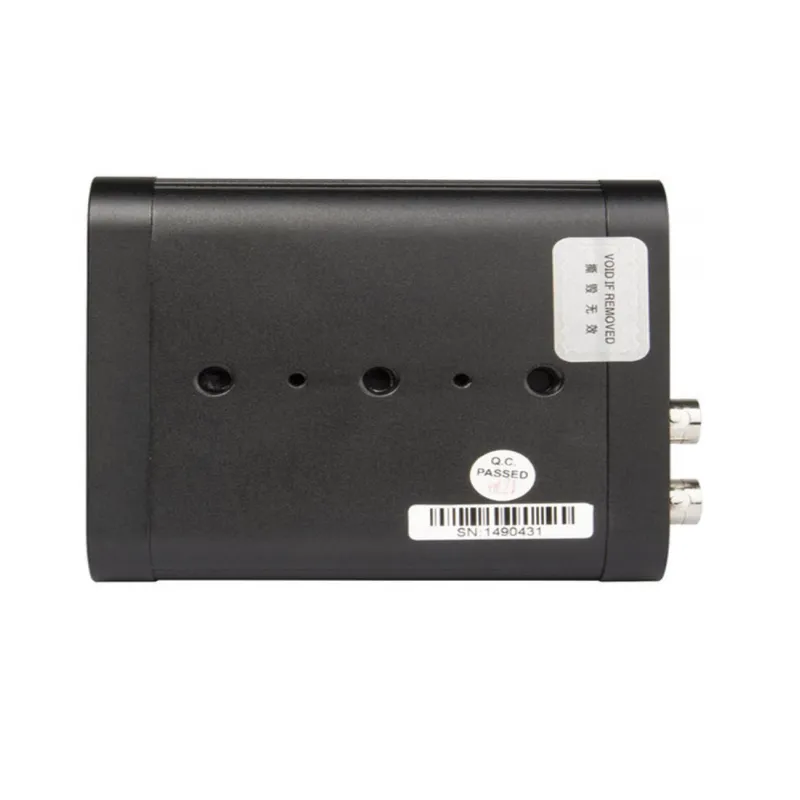

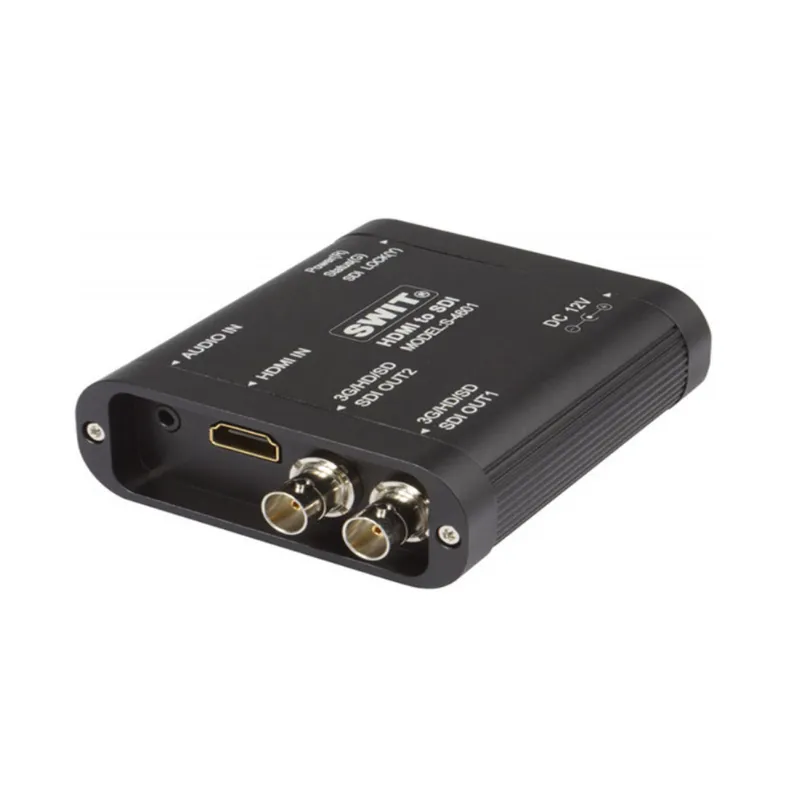

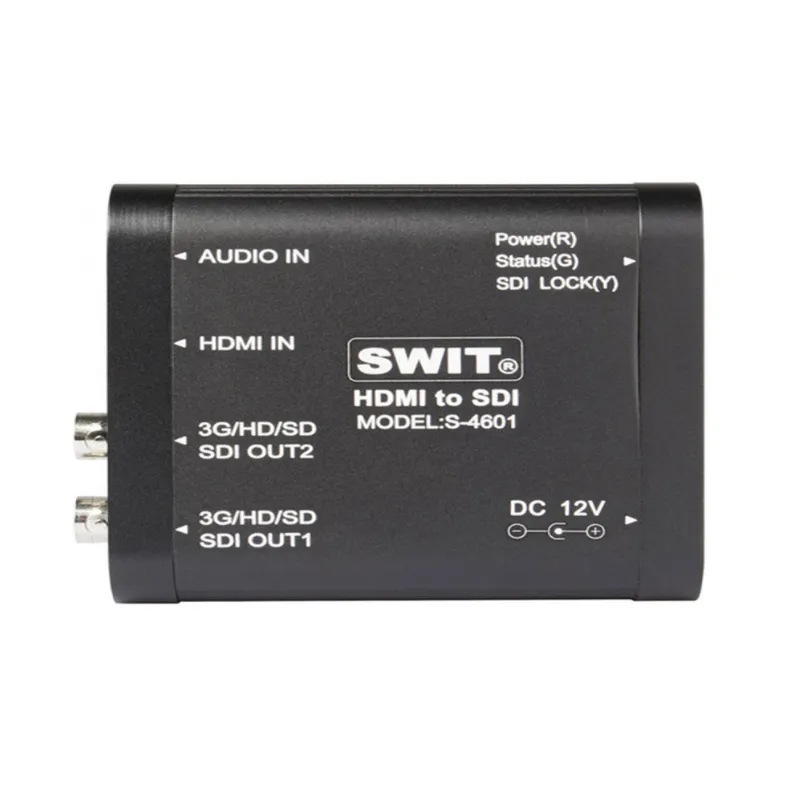

The SWIT S-4601 is a portable, heavy-duty HDMI to 3G/HD/SD-SDI converter featuring one HDMI input and dual SDI outputs. It supports embedded HDMI audio as well as external analog audio via a 3.5mm input, both integrated into the SDI output. Housed in a robust metal casing with bottom screw threads for secure installation, it is an ideal solution for professional broadcast, live production, and AV workflows.

Key Features

  • HDMI to 3G/HD/SD-SDI conversion
  • 1 HDMI input (v1.3)
  • 2 SDI outputs (BNC)
  • Embed HDMI audio into SDI output
  • Embed analog audio (3.5mm jack) into SDI output
  • Supports 3G-SDI, HD-SDI, and SD-SDI formats
  • LED indicators for power, HDMI input, and SDI lock
  • Heavy-duty protective casing
  • Bottom screw threads for convenient mounting
  • Compact, portable design

Inputs

  • 1 HDMI (v1.3)
  • 1 Analog audio (3.5mm jack)

Outputs

  • 2 3G/HD/SD-SDI (BNC)

Supported SDI Standards

  • SMPTE-425M 1080p (60 / 59.94 / 50)
  • SMPTE-274M 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)
  • SMPTE-RP211 1080PsF (30 / 29.97 / 25 / 24 / 23.98)
  • SMPTE-296M 720p (60 / 59.94 / 50)
  • SMPTE-125M 480i (59.94)
  • ITU-R BT.656 576i (50)

Supported HDMI Formats

  • 480i / 576i
  • 720p (60 / 59.94 / 50)
  • 1080i (60 / 59.94 / 50)
  • 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

Electrical

  • Operating voltage 6-18 VDC
  • Included AC adapter 12V DC, 5.5mm barrel connector (center positive)
  • Power consumption 3W

Environmental

  • Operating temperature 32 to 158°F (0 to 70°C)
  • Operating humidity 10 to 90%

Physical

  • Dimensions 2.9 x 2.9 x 1.1 in (7.3 x 7.4 x 2.9 cm)
  • Weight 4.9 oz (138.5 g)
