Overview

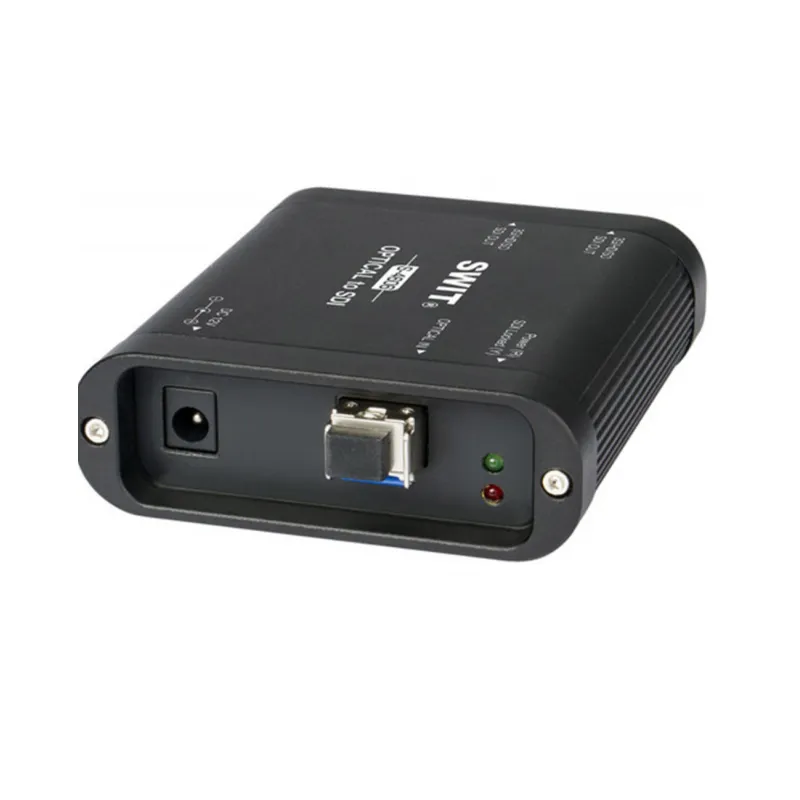

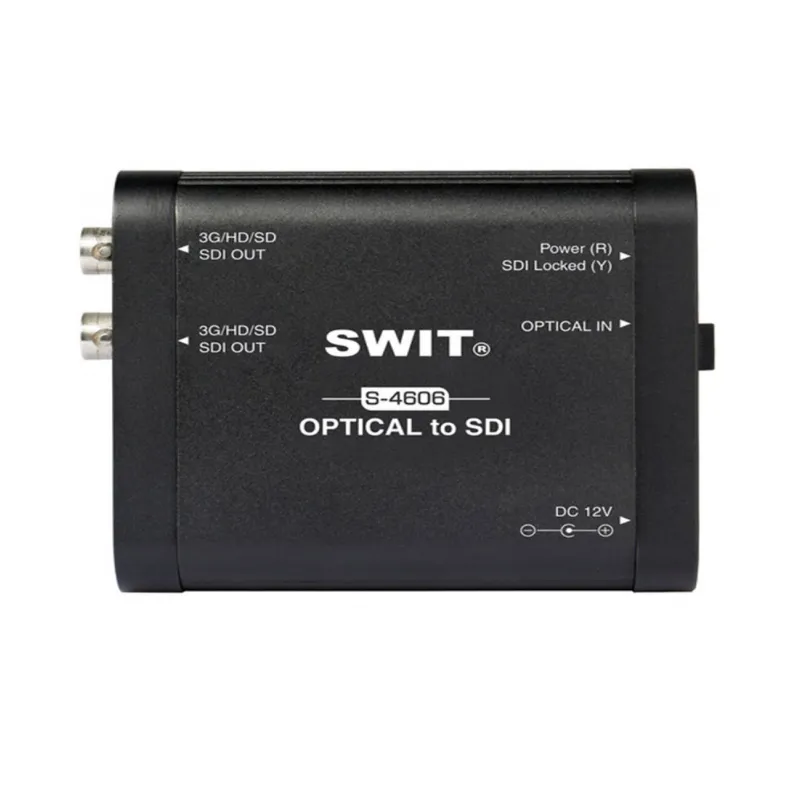

The SWIT S-4606 Fiber Optic to 3G-SDI Converter is a portable and rugged single-mode fiber optic converter designed for reliable 3G/HD/SD-SDI signal transmission up to 20 km. Featuring hot-swappable optical modules, LC fiber connectors, and a robust aluminum casing with multiple mounting options, it ensures stable video conversion in demanding broadcast and professional video environments.
Performance
The SWIT S-4606 Heavy Duty Fiber Optic to 3G-SDI Converter offers a high-performance solution for converting single-mode optical fiber signals to 3G/HD/SD-SDI electrical outputs, enabling long-distance video transmission with minimal signal loss. Designed for portability and durability, the S-4606 features a rugged aluminum housing that protects critical connectors and allows for secure mounting with lower screw threads.
Supporting transmission distances up to 20 km via single-mode fiber and equipped with standard LC connectors, the converter guarantees reliable connectivity for professional broadcast, live event, and studio applications. Its hot-swappable optical module functionality permits quick replacement or upgrades without interrupting the workflow.
The device includes clear LED indicators for power and SDI input status to aid real-time monitoring, ensuring efficient setup and troubleshooting. With a wide operating temperature range and humidity tolerance, the S-4606 performs reliably in diverse environmental conditions.
Compact yet robust, this converter is an essential component for users needing high-quality fiber-to-SDI conversion with professional-grade dependability.
Key Features
- Portable fiber optic to 3G/HD/SD-SDI converter
- Single-mode optical fiber support with LC connector
- Hot-swappable optical module for easy maintenance
- Power and SDI input status indicators
- Durable aluminum casing with protective design
- Multiple screw threads for secure installation
- Supports transmission distances up to 20 km
- Compatible with standard 3G-SDI, HD-SDI, and SD-SDI signals
Specifications
- Type: 3G/HD/SD-SDI Optical/Electrical Converter
- Fiber Type: Single-mode optical fiber
- Fiber Connector: LC
- SDI Input: 1 x 3G HD-SDI input (optical)
- SDI Output: 2 x 3G HD-SDI output (BNC)
- Power Input: DC 6-18 V
- Dimensions: 3.9" (W) x 3.3" (D) x 1.1" (H)
- Weight: 7.76 oz (220 g)
- Operating Temperature: 32°F to 158°F (0°C to 70°C)
- Operating Humidity: 10% to 90%
- Kit Contents: AC adapter included
