Overview

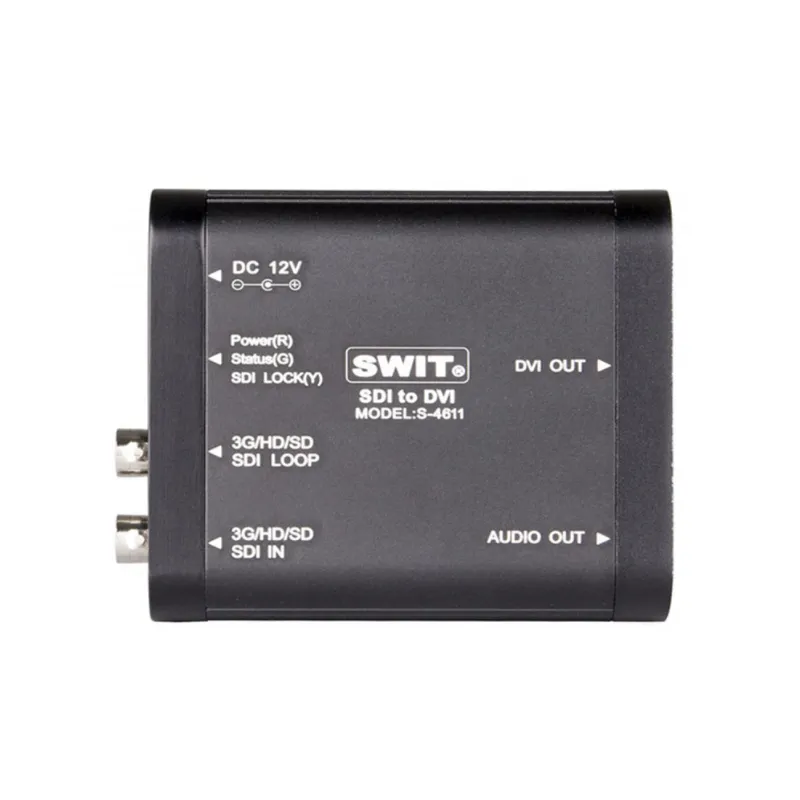

The SWIT S-4611 SDI to DVI Converter is a compact and durable solution for converting 3G/HD/SD-SDI signals up to 1080p60 into DVI-D output. Featuring SDI loop-through, 3.5mm audio de-embedding, and a rugged aluminum housing, it is ideal for broadcast, live production, and professional AV applications.
This converter allows you to display SDI video sources on DVI monitors, TVs, projectors, and video walls with ease. Supporting resolutions up to 1080p60, it converts a single 3G/HD/SD-SDI input to DVI-D output while maintaining high image quality and signal stability.
A built-in SDI loop output enables simultaneous connection to a secondary SDI monitor for local previewing. The converter also de-embeds up to two channels of embedded SDI audio (48 kHz) and outputs them via a 3.5 mm stereo analog jack, making it suitable for monitoring or external speaker setups.

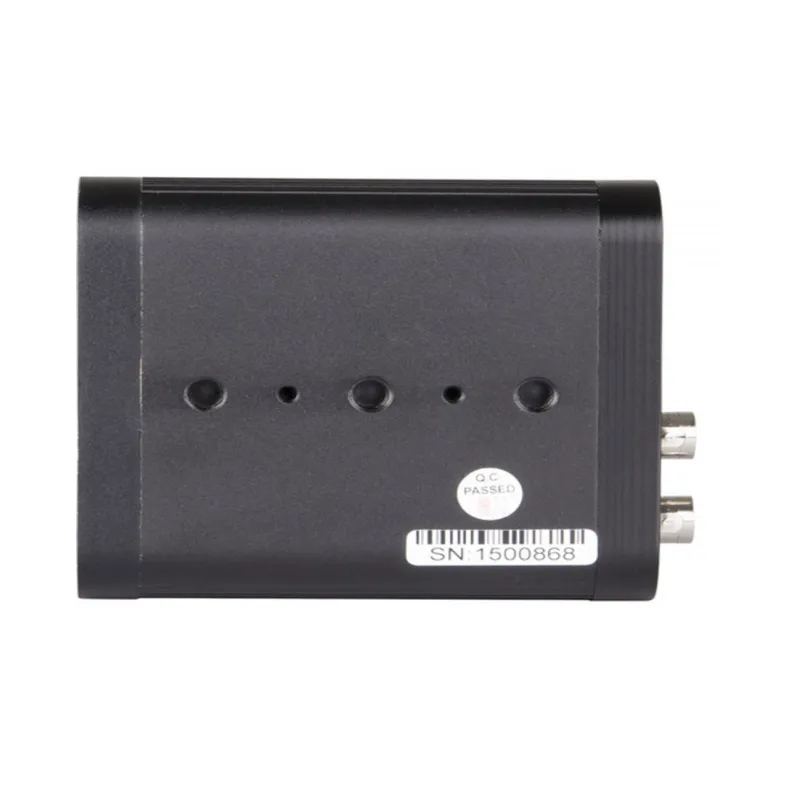

Designed for professional environments, the S-4611 features a unibody aluminum housing for durability and heat dissipation. Three LED indicators display power and signal status for quick troubleshooting. Dual 1/4-20 mounting threads allow secure camera or rig mounting, and the included A-IP00 mounting plate provides additional wall or surface installation options with cable management.
With low 3W power consumption and wide operating temperature tolerance (0-70°C), the S-4611 is an excellent solution for field production, broadcast, corporate AV, and digital signage workflows.
Key Features
- Converts 3G/HD/SD-SDI to DVI-D
- Supports resolutions up to 1080p60
- SDI loop-through output for local monitoring
- 2-channel SDI audio de-embedding via 3.5mm output
- Compact, heavy-duty aluminum housing
- Dual 1/4-20 mounting threads
- Includes AC power adapter and mounting plate
- Low power consumption (3W)
Video Input
- Connector: 1 BNC (3G-SDI / HD-SDI / SD-SDI)
- Formats Supported:
- 1080p 23.98/24/25/29.97/30/50/59.94/60
- 1080PsF 23.98/24/25/29.97/30
- 1080i 50/59.94/60
- PAL 50 fps
- NTSC 60 fps
Video Output
- DVI Output: 1 DVI-D DL Female
- SDI Loop Output: 1 BNC (HD/SD-SDI)
- Formats:
- 1080p up to 60 fps
- 1080i 50/59.94/60
- 720p 50/59.94/60
- PAL (768x576) 50 fps
- NTSC 60 fps
Audio
- Embedded Input: 2 channels via SDI
- Analog Output: 1 3.5 mm TRS stereo
- Sampling Rate: 48 kHz
Standards Compliance
- SMPTE 125M / 274M / 296M / RP-211
Power
- Input Voltage: 6-18 VDC
- Power Consumption: 3W
Environmental
- Operating Temperature: 32-158°F (0-70°C)
- Operating Humidity: 10-90%
Physical
- Dimensions: 3.9 x 3.3 x 1.1 in (98.5 x 84.2 x 29 mm)
- Weight: 7.4 oz (209 g)
- Mounting: 2 1/4-20 threads
