Swit EC-N200 NDI Codec Camera Adaptor
- Accessories for video cameras pārveidotāji
- Type of Product other accessories
- Type of Product ptz camera accessories
- Video Interface hdmi
- Video Interface 3g-sdi
- Video Interface rj-45
- Features ndi technology
- Features on-board record
- Features tally light
- Features built-in nd filter
- Features poe
- Features firmware upgrade via web
- Features intercom mute, call function, and headphone output
- IP Video ndi
- Control Interface rj-45
- Accessories for video cameras pārveidotāji
- Type of Product other accessories
- Type of Product ptz camera accessories
- Video Interface hdmi
- Video Interface 3g-sdi
- Video Interface rj-45
- Features ndi technology
- Features on-board record
- Features tally light
- Features built-in nd filter
- Features poe
- Features firmware upgrade via web
- Features intercom mute, call function, and headphone output
- IP Video ndi
- Control Interface rj-45
AI ASSISTANT CHAT
Or ask about:
| Type of Product | PTZ camera accessories |
| Type of Product | Other Accessories |
| Accessories for video cameras | pārveidotāji |
| Video Interface | HDMI |
| Video Interface | RJ-45 |
| Video Interface | 3G-SDI |
| Features | PoE |
| Features | Intercom mute, call function, and headphone output |
| Features | On-Board Record |
| Features | Built-in ND Filter |
| Features | Firmware upgrade via web |
| Features | NDI Technology |
| Features | Tally Light |
| IP Video | NDI |
| Control Interface | RJ-45 |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease

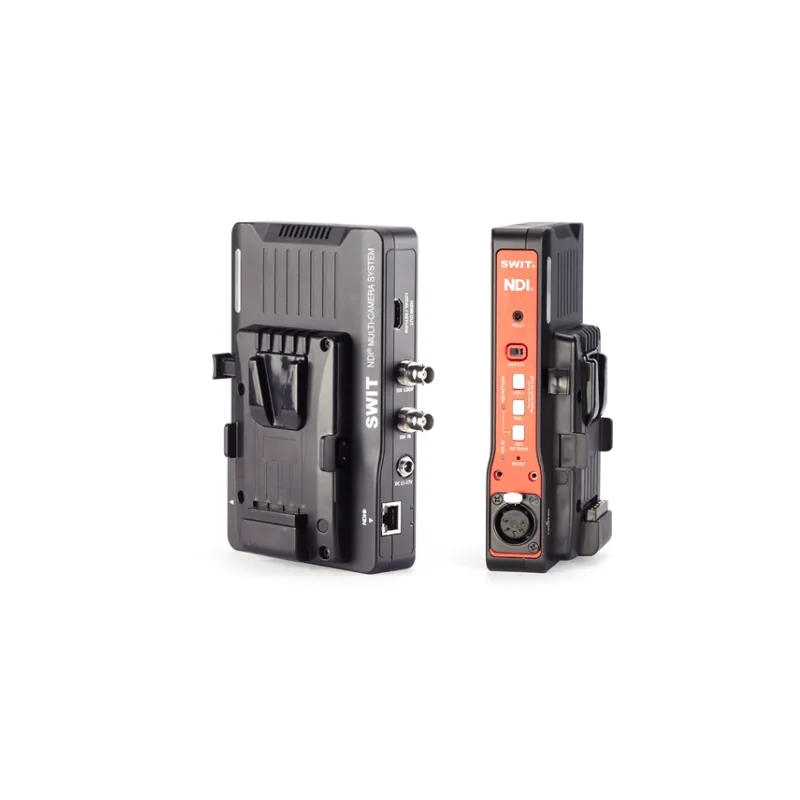

The SWIT EC-N200 NDI Codec Camera Adaptor is a professional camera-side solution for the SWIT NDI EFP Multi-camera Production System, enabling real-time 3G-SDI to high-bandwidth NDI encoding and PGM NDI return decoding. It integrates tally, intercom, and flexible power options, making it ideal for modern IP-based live production workflows.
Designed as part of the SWIT NDI EFP Multi-camera Production System, the EC-N200 encodes a camera's 3G-SDI signal into high-bandwidth NDI for transmission over standard networks, while simultaneously decoding the PGM NDI return feed for HDMI monitoring at the camera position.
Built for professional live production, the EC-N200 supports local video and program return video switching, allowing camera operators to monitor either their own feed or the director's program output. Integrated on-board and external TALLY lights provide clear on-air status indication, while the full-duplex intercom system enables reliable communication between camera operators and the director via the ET-N80 control panel. Dedicated controls for intercom mute and call, along with a headphone output, enhance on-set usability.
The adaptor offers versatile power options, including DC input, V-mount battery input, and PoE (Power over Ethernet), making it suitable for studio, ENG, and field production setups. A 15mm rod rail mounting system allows secure installation on ENG cameras, and a built-in RJ45 cable clamp ensures stable network connections. Configuration and firmware updates are easily managed through a web-based interface, ensuring efficient setup and maintenance.
Key Features
- Encodes 3G-SDI to high-bandwidth NDI
- Decodes PGM NDI signal to HDMI output
- Local video and PGM return video switching
- Full-duplex intercom support with ET-N80 control panel
- Intercom mute, call function, and headphone output
- On-board TALLY and external TALLY light support
- Multiple power options DC, V-mount, and PoE
- Secure RJ45 network cable clamp

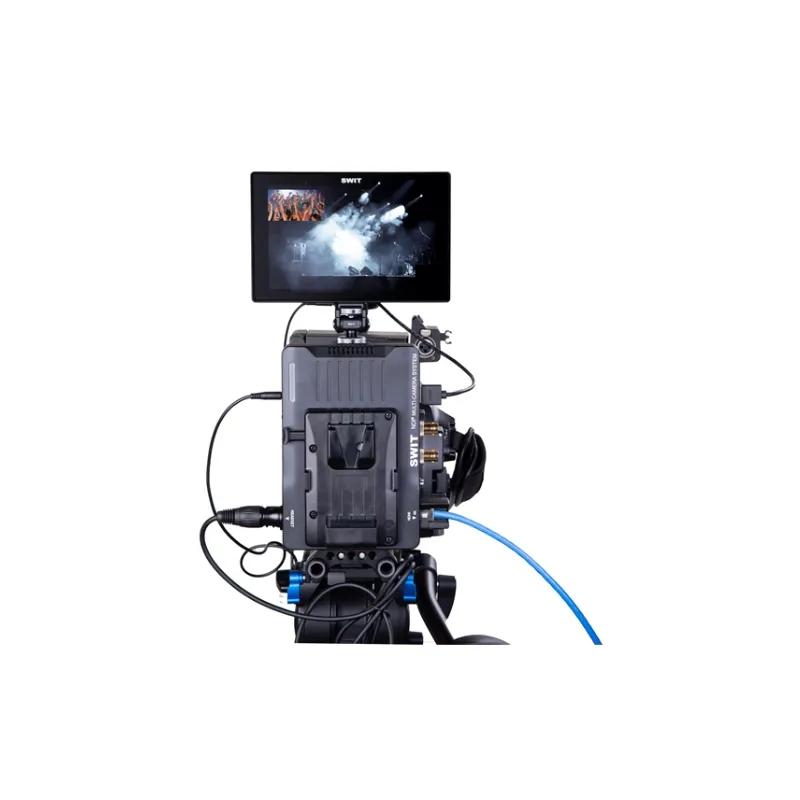

- 15mm rod rail system for ENG camera mounting
- Web-based configuration and firmware updates
Included Accessories
- SWIT EC-N200 NDI Codec Camera Adaptor
- RJ45 cable clamp
- 15mm rod rail mounting hardware
- User documentation
Specifications
- SDI Input: 3G-SDI
- NDI: High-bandwidth NDI encode & decode
- Video Output: HDMI (PGM return)
- Power Input:
- DC 11-17V, 1.5A
- V-mount battery input
- PoE 42-57V, 0.5A
- Intercom: Full duplex with ET-N80 control panel
- TALLY: On-board TALLY and external TALLY light support
- Mounting: 15mm rod rail system
- Configuration: Webserver-based setup and firmware update
