Overview

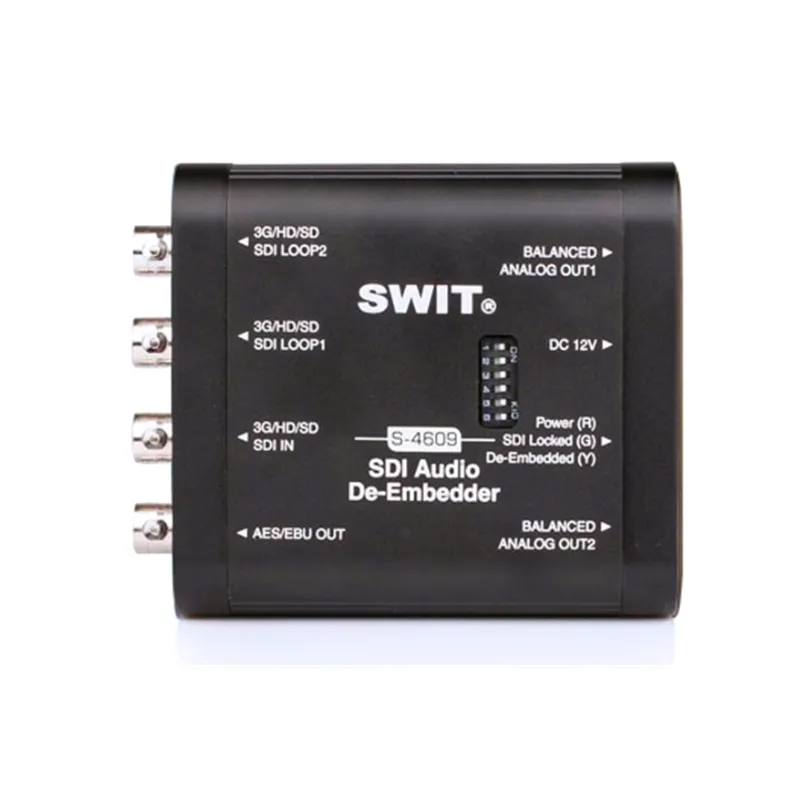

The S-4609 SDI Audio De-Embedder is a portable mini converter that extracts up to two channels of audio from 3Gb/s SDI signals, offering AES/EBU and balanced 6.35mm audio outputs for professional broadcast and field production use.
This compact and rugged audio converter is designed for professional broadcast and field production environments. Supporting 3G/HD/SD-SDI signals up to 3Gb/s, it can de-embed any two audio channels from the first eight channels embedded in an SDI feed. It provides flexible output options including AES/EBU digital audio and balanced 6.35mm analog audio, making it suitable for a wide range of audio processing and monitoring applications.
Built with a heavy-duty aluminum housing, the S-4609 is both durable and portable. It features two SDI loop outputs for easy signal pass-through, and power/input/output status indicators for quick operational checks. The device accepts 618V DC pole-tap power input, enabling integration with various power sources in field setups. Bottom screw threads facilitate secure installation on poles or rigs.
Key Features
- Portable SDI to audio de-embedder converter
- Supports 3G/HD/SD-SDI up to 3Gb/s
- De-embeds any 2 audio channels from first 8 embedded channels
- Outputs AES/EBU digital audio and balanced 6.35mm analog audio
- Provides 2x SDI loop outputs for signal pass-through
- Power, input, and output status indicators
- Pole-tap 618V DC power input
- Robust heavy-duty aluminum housing
- Bottom screw threads for installation on poles or rigs
Specifications
- Model: S-4609
- Input: 3G/HD/SD-SDI (up to 3Gb/s)
- Audio De-embed: 2 channels (from first 8 channels)
- Audio Output: AES/EBU digital, balanced 6.35mm analog
- SDI Loop Output: 2x
- Power Input: 618V DC pole-tap
- Housing: Aluminum
- Mounting: Bottom screw threads
