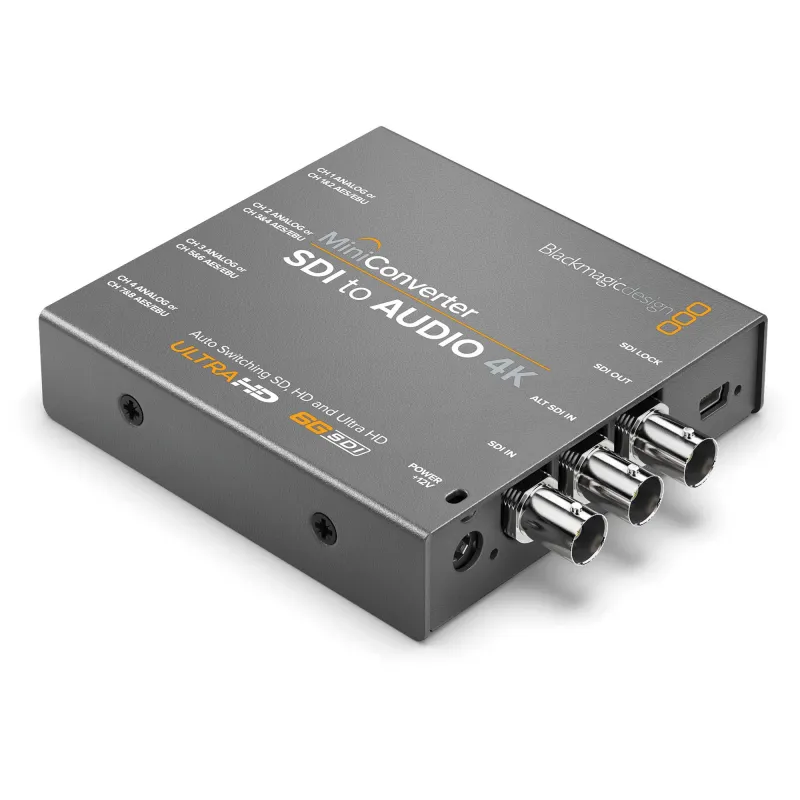

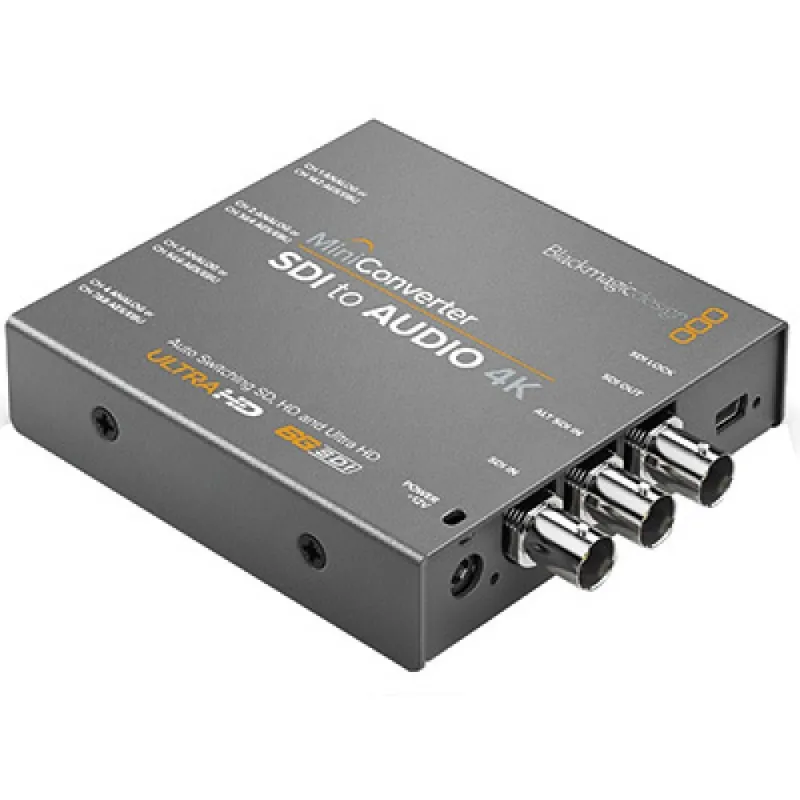

Blackmagic Mini Converter SDI to Audio 4K (BM-CONVMCSAUD4K)
The Mini Converter SDI to Audio 4K allows de-embedding of 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. This enables access to audio embedded in SDI video signals for output to a wide range of professional audio equipment such as audio mixers, analog broadcast decks, and audio monitors.
Included in Delivery
- Mini Converter SDI to Audio 4K unit
- 12V universal power supply with international socket adapters
- 3 Year Limited Manufacturer's Warranty

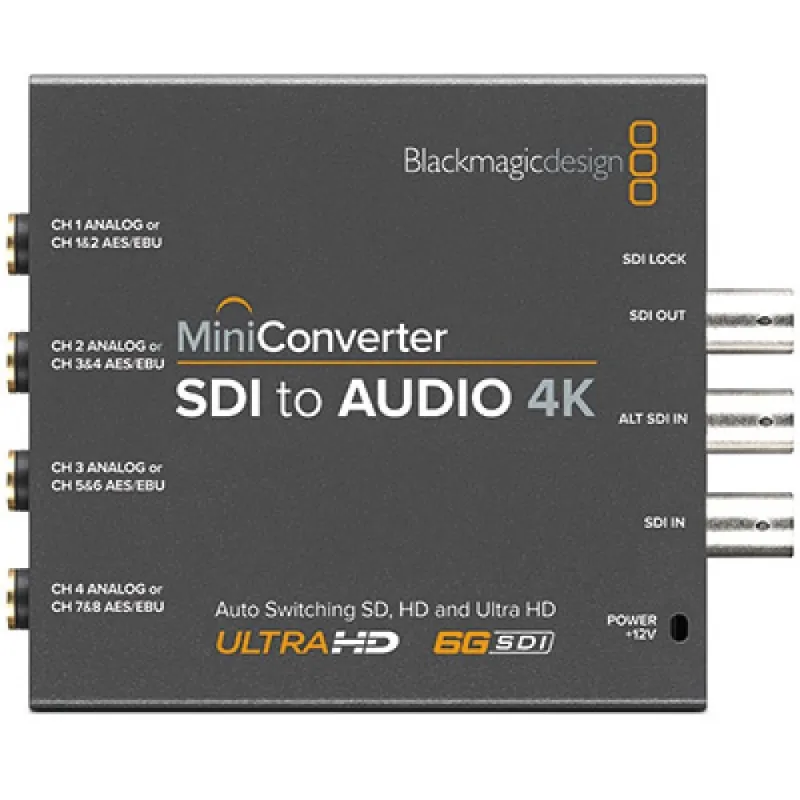

Connections
- SDI Video Input: Switchable between SD, HD, 3G, and 6G-SDI
- SDI Video Output: Automatically matches the input video format
- SDI Redundant Input: Automatic switch-over if main SDI input is lost
- Analog Audio: 4 channels of professional balanced analog audio via standard 1/4 inch jack connectors
- AES/EBU Digital Audio: 8 channels of professional balanced digital audio via standard 1/4 inch jack connectors
- Multi Rate Support: Auto detection of 4K, UHD, 2K, HD, or SD SDI inputs
- Updates and Configuration: USB interface
- Reclocking: Yes
Standards and Video Support
- SDI Compliance: SMPTE 292M, 259M, 296M, 372M, 425M, ITU-R BT.656, BT.601, SMPTE ST-2036
- SDI Video Rates: Switchable between standard definition and high definition
- SDI Video Sampling: 4:2:2 and 4:4:4
- SDI Audio Sampling: 48 kHz sample rate, 24 bit depth (television standard)
- SDI Color Precision: 4:2:2 and 4:4:4
- SDI Color Space: YUV and RGB
- SDI Auto Switching: Automatic selection between SD, HD, 3G, and 6G-SDI
- SDI Format Support: Supports a wide range of formats including NTSC, PAL, 720p, 1080i, 1080p, 2K, UHD, and 4K resolutions up to 4096x2160p at various frame rates
Software and Control
- Software Control: Mac OS X and Windows software upgrade via USB
- Internal Software Upgrade: Via included updater application
- Operating Systems Supported: Mac OS X 10.9 Mavericks or later, Windows 7 or Windows 8
- Settings Control: Mini switches on device or USB software
Power Requirements
- Power Supply: +12V universal power supply included with international socket adapters
- Power Consumption: 5.52 Watts
- Operational Voltage Range: 12V to 31V DC
Environmental Specifications
- Operating Temperature: 0° to 40° C
- Storage Temperature: -20° to 60° C
- Relative Humidity: 0% to 90% non-condensing
Product Highlights
Mini Converters are advanced, compact, and easy-to-use SDI converters designed for broadcast, post-production, and professional A/V environments. They feature high-quality components and connectors, automatic switching between SD, HD, and 4K formats, and support for 6G-SDI technology which operates at four times the data rate of normal HD-SDI. This ensures compatibility with existing SD-SDI and HD-SDI equipment while enabling Ultra HD resolutions.

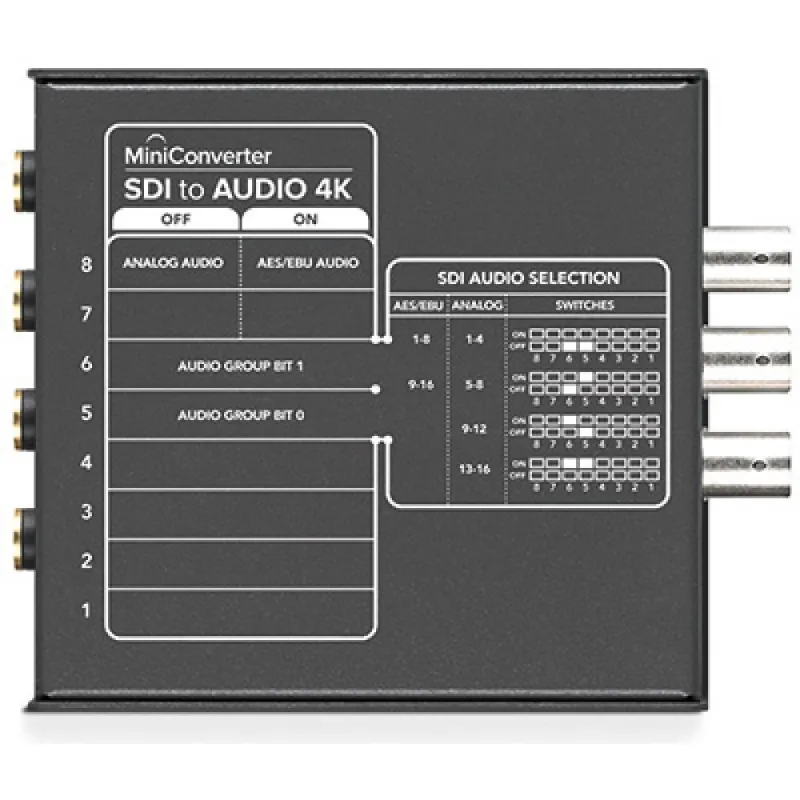

Settings can be quickly adjusted using built-in mini switches with pin diagrams printed on the back, eliminating the need for manuals. The converters use standard connections for convenience and cost savings by allowing use of existing cables. Low SDI jitter and SDI re-clocking enable use of long SDI cable runs while maintaining pristine image quality.
This model specifically de-embeds audio from SDI video signals, providing access to analog and digital audio channels for integration with a wide range of professional audio equipment.
