Swit S-4610 SDI Audio Embedder
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Other Accessories |
| Accessories for video cameras | pārveidotāji |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
The SWIT S-4610 is a compact and rugged SDI audio embedder that integrates both digital and analog audio into SDI signals, providing reliable 3G/HD/SD-SDI outputs for professional field production and broadcast applications.

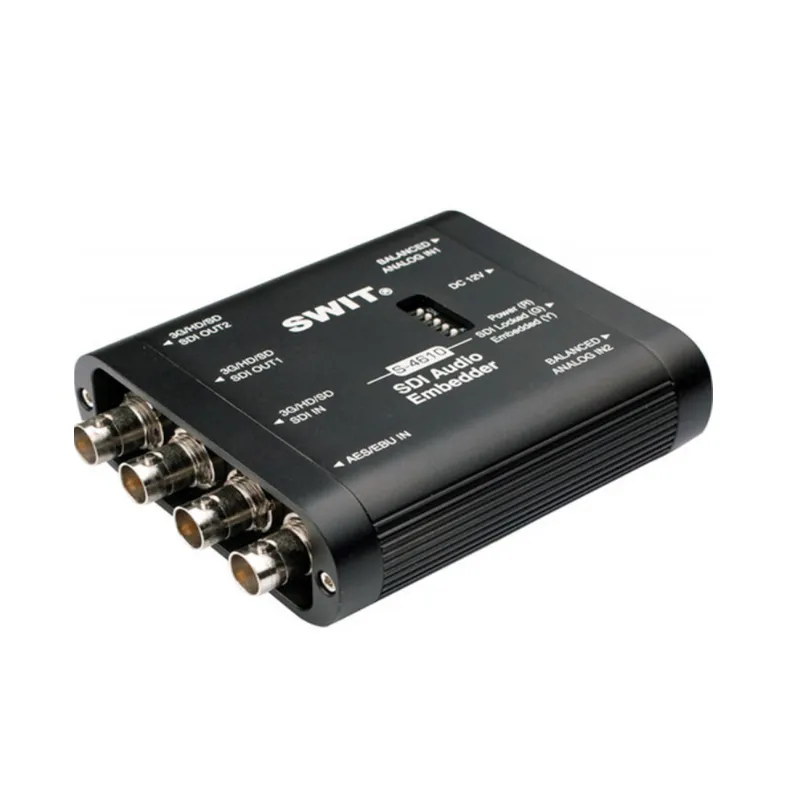

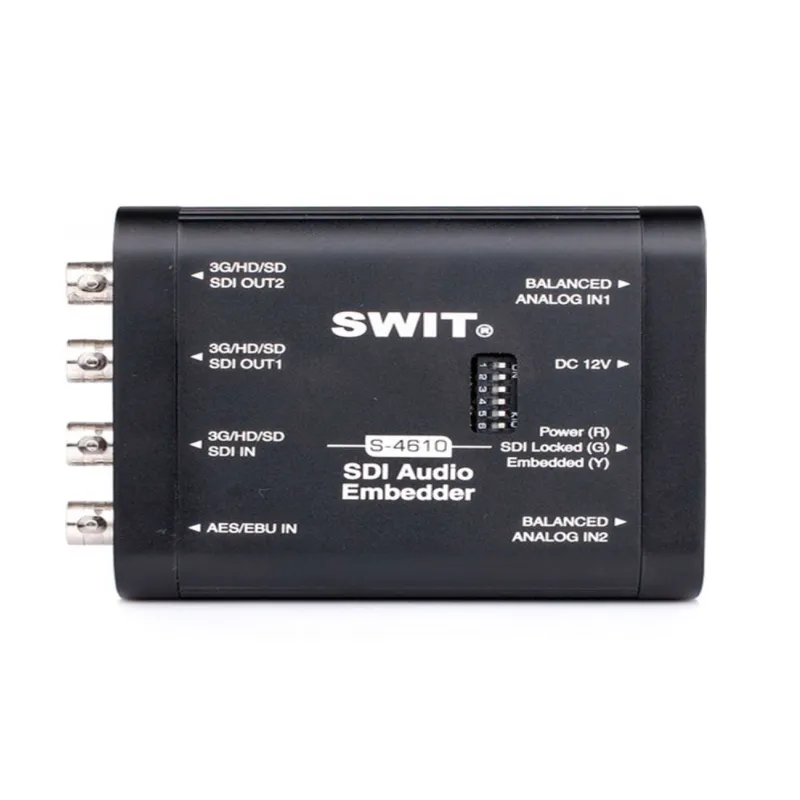

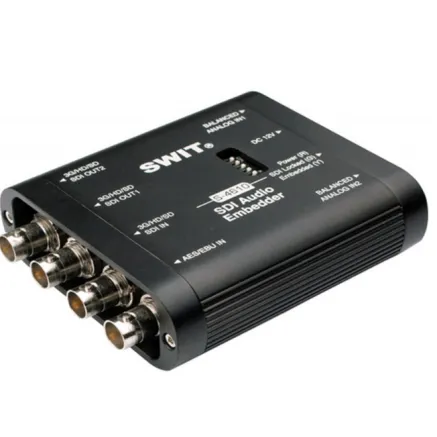

The Swit S-4610 Rugged SDI Audio Embedder is a versatile mini SDI audio embedder that seamlessly integrates audio into your SDI workflow. It supports both 2-channel AES/EBU digital audio and balanced analog audio inputs, embedding audio into any two of the first eight SDI positions. Compatible with 3G/HD/SD-SDI signals, this compact device features two integrated SDI outputs, three LED indicators for power, SDI input detection, and output status, and a durable aluminum chassis built for the rigors of field production.
The unit can be mounted directly to cameras using the 1/4-20 screw threads or installed on walls using the included mounting plate. It operates on a 6-18 VDC pole-tap power input and consumes up to 3 W. Its video compatibility spans 1080p/i, 720p, and SD formats, while audio support covers digital AES/EBU at 48 kHz and analog signals up to +24 dBu with a 20 Hz-20 kHz bandwidth. Operating reliably in temperatures from -5 to 50°C and humidity levels from 10 to 90%, the S-4610 is perfect for on-site broadcast and professional AV workflows.
Key Features
- Integrates audio into SDI signals
- Supports 3G/HD/SD-SDI input and dual SDI outputs
- 2-channel AES/EBU digital and 2-channel balanced analog audio inputs
- Camera-mountable with 1/4-20 screw threads and wall-mountable plate
- Three LED indicators for power, SDI input, and output status
- Pole-tap 6-18 VDC power input, low 3 W consumption
- Rugged aluminum housing for field use
- 1 x Swit S-4610 SDI Audio Embedder
- 1 x Wall-mounting plate
- User manual and mounting accessories
- Video formats 1080p/i, 720p, SD (SMPTE-425M, SMPTE-274M, SMPTE-RP211, SMPTE-296M, SMPTE-125M, ITU-R BT.656)
- Digital audio AES/EBU 5 V pp, 48 kHz
- Analog audio +24 dBu max., 20 Hz-20 kHz
- Power consumption 3 W max.
- Operating voltage 6-18 VDC
- Operating temperature 32-122°F / 0-50°C
- Operating humidity 10-90%
- Dimensions 3.9 x 3.3 x 1.1" / 9.8 x 8.4 x 2.9 cm
- Weight 8.3 oz / 235 g
