Overview

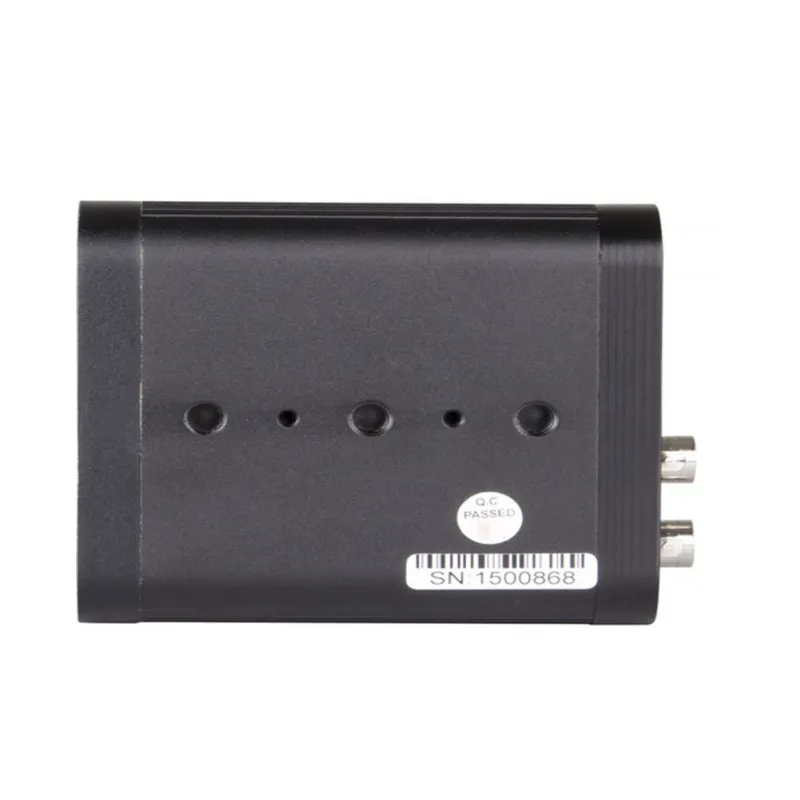

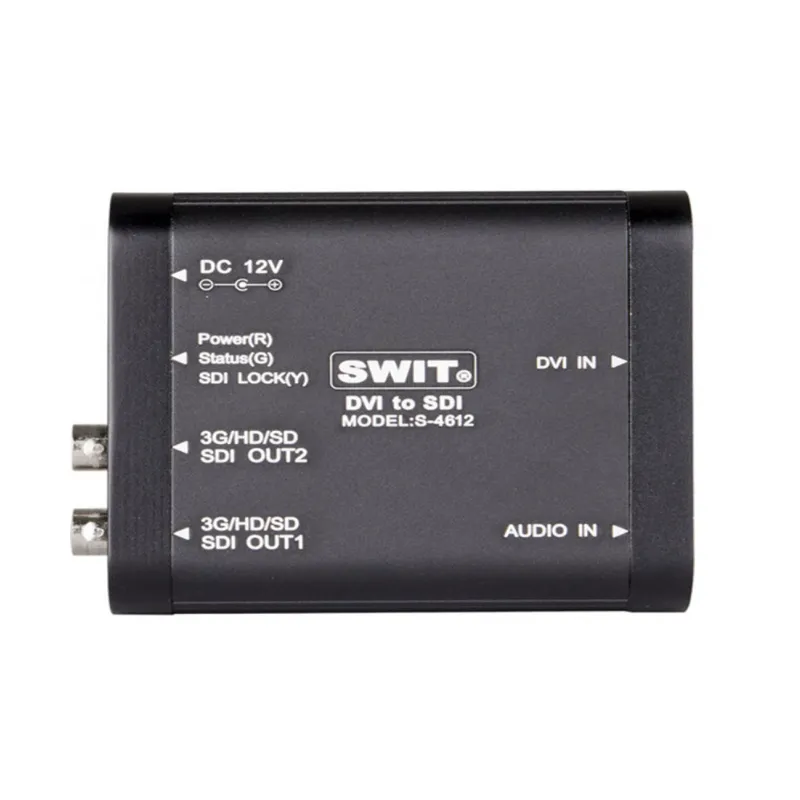

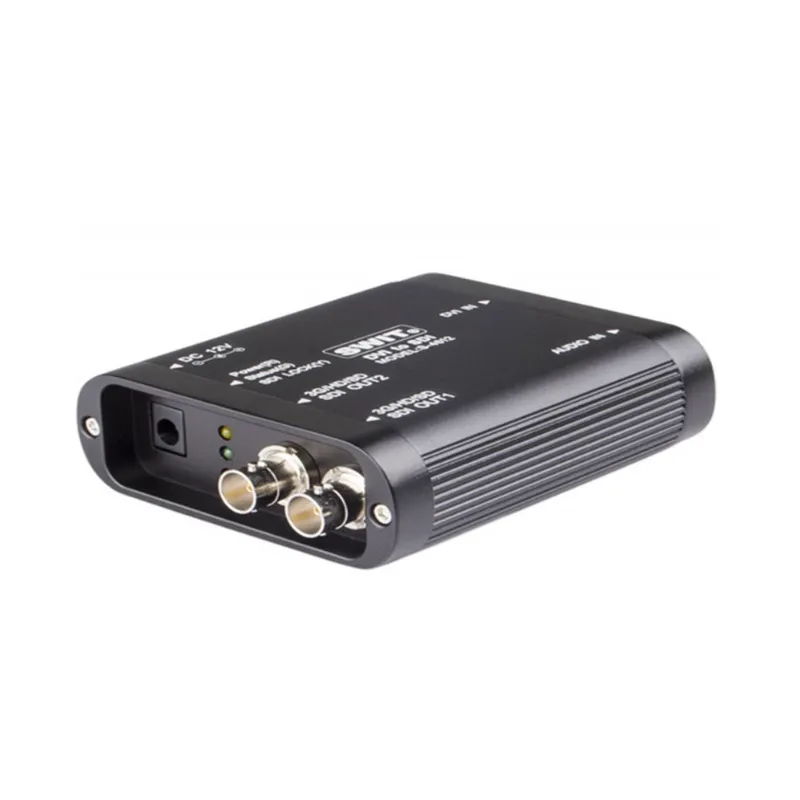

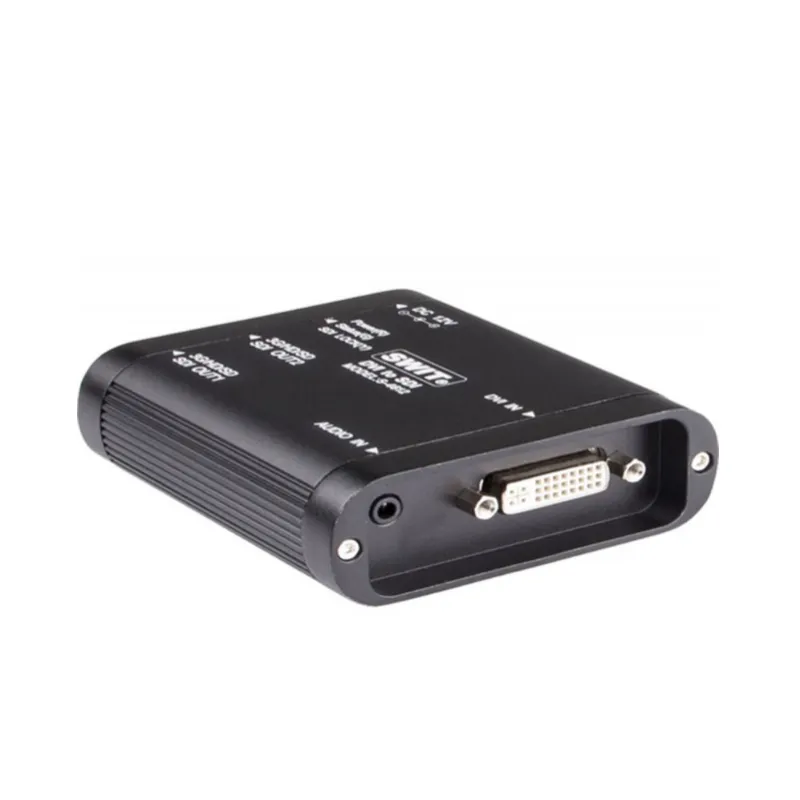

The SWIT S-4612 is a heavy-duty DVI to SDI converter that outputs high-quality 1080p video with embedded analog audio. Featuring one DVI input, two re-clocked 3G/HD/SD-SDI outputs, and a rugged aluminum housing, it ensures reliable, low-jitter video transmission for professional workflows.
The SWIT S-4612 is a professional DVI to SDI converter designed for reliable integration of digital video and analog audio into SDI workflows. Supporting resolutions up to 1080p at 50/60Hz, it features one DVI-D (18+1) input, a 3.5mm analog audio input, and two re-clocked 3G/HD/SD-SDI outputs. The unit embeds analog audio sampled at 48kHz directly into the SDI output, providing seamless audio/video synchronization. Three LED indicators display power, input, and output status, while the robust aluminum casing protects the device in demanding environments. Power is supplied via a 618VDC Pole-Tap connector, and 1/4" screw threads on the bottom allow secure installation on poles or racks. The S-4612 is compact, lightweight, and ideal for broadcast, live events, or studio setups requiring high-quality video conversion with low jitter.
Key Features
- Converts DVI video (up to 1080p) to 3G/HD/SD-SDI with low jitter
- Embeds analog audio (48kHz) into SDI output
- One DVI-D input, one 3.5mm audio input
- Two re-clocked SDI outputs for stable signal transmission
- Three LED indicators for power, input, and output status
- Rugged aluminum casing for professional use
- Powered via 618VDC Pole-Tap input
- Compact size with 1/4" screw threads for secure mounting
Included Accessories
- 1 SWIT S-4612 DVI to SDI Converter
- 1 AC-DC Power Adapter
Specifications
- Video Input: 1 DVI-D (18+1)
- Audio Input: 1 3.5mm analog (48kHz)
- Video Output: 2 BNC 3G/HD/SD-SDI, re-clocked
- Supported SDI Formats: 1080p 60/59.94/50, 1080i 60/59.94/50, 1080psF 30/29.97/25/24/23.98, 720p 60/59.94/50, 480i/576i
- Supported DVI Formats: 1080p/i, 720p, 576i/480i
- Power: 3W, 618VDC (AC-DC adapter included)
- Operating Temp: 0-70°C / 32-158°F
- Humidity: 10-90%
- Dimensions: 9.8 x 8.4 x 2.9 cm / 3.8 x 3.3 x 1.1 in
- Weight: 207g / 7.3oz
