Swit PL-S300H 300W Bi-color LED Panel Light
- Lux/1m 50365
- Lux/1m 47000
- Light color quality (CRI) tlci 99
- Light color quality (CRI) cri 96
- Light color quality (CRI) cri 96 / tlci 99
- Color temperature 2700 k – 6500 k
- Color temperature 2700 k – 6500 k
- Power Watt 300
- Light dimming dmx/app control
- Light dimming dmx512 control
- LED light type panelis
- LED light type panel (hard light)
- Lumeni 47000
- Lumeni 47000 lux at 1 m
- Power Supply powercon true1 ac
- Power Supply 3-pin xlr 48v dc
- Power Supply powercon true1 ac
- Power Supply 48v dc xlr
- Weight, gr 12500
- Number of LEDs smd
- Number of LEDs 280
- Number of LEDs 280
- Number of LEDs 280 smd with lenses
- Type of Product led panel light
- Type of Product led panel light
- Waterproof no (not waterproof)
- Lux/1m 50365
- Lux/1m 47000
- Light color quality (CRI) tlci 99
- Light color quality (CRI) cri 96
- Light color quality (CRI) cri 96 / tlci 99
- Color temperature 2700 k – 6500 k
- Color temperature 2700 k – 6500 k
- Power Watt 300
- Light dimming dmx/app control
- Light dimming dmx512 control
- LED light type panelis
- LED light type panel (hard light)
- Lumeni 47000
- Lumeni 47000 lux at 1 m
- Power Supply powercon true1 ac
- Power Supply 3-pin xlr 48v dc
- Power Supply powercon true1 ac
- Power Supply 48v dc xlr
- Weight, gr 12500
- Number of LEDs smd
- Number of LEDs 280
- Number of LEDs 280
- Number of LEDs 280 smd with lenses
- Type of Product led panel light
- Type of Product led panel light
- Waterproof no (not waterproof)
AI ASSISTANT CHAT
Or ask about:
| Type of Product | LED Panel Light |
| Type of Product | LED Panel Light |
| Lux/1m | 47000 |
| Lux/1m | 50365 |
| Color temperature | 2700 K – 6500 K |
| Color temperature | 2700 K – 6500 K |
| Light dimming | DMX/App control |
| Light dimming | DMX512 control |
| LED light type | panelis |
| LED light type | panel (hard light) |
| Power Watt | 300 |
| Power Supply | 3-pin XLR 48V DC |
| Power Supply | 48V DC XLR |
| Power Supply | PowerCON TRUE1 AC |
| Power Supply | PowerCON TRUE1 AC |
| Number of LEDs | 280 SMD with lenses |
| Number of LEDs | SMD |
| Number of LEDs | 280 |
| Number of LEDs | 280 |
| Lumeni | 47000 lux at 1 m |
| Lumeni | 47000 |
| Light color quality (CRI) | CRI 96 |
| Light color quality (CRI) | TLCI 99 |
| Light color quality (CRI) | CRI 96 / TLCI 99 |
| Weight, gr | 12500 |
| Waterproof | No (not waterproof) |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease

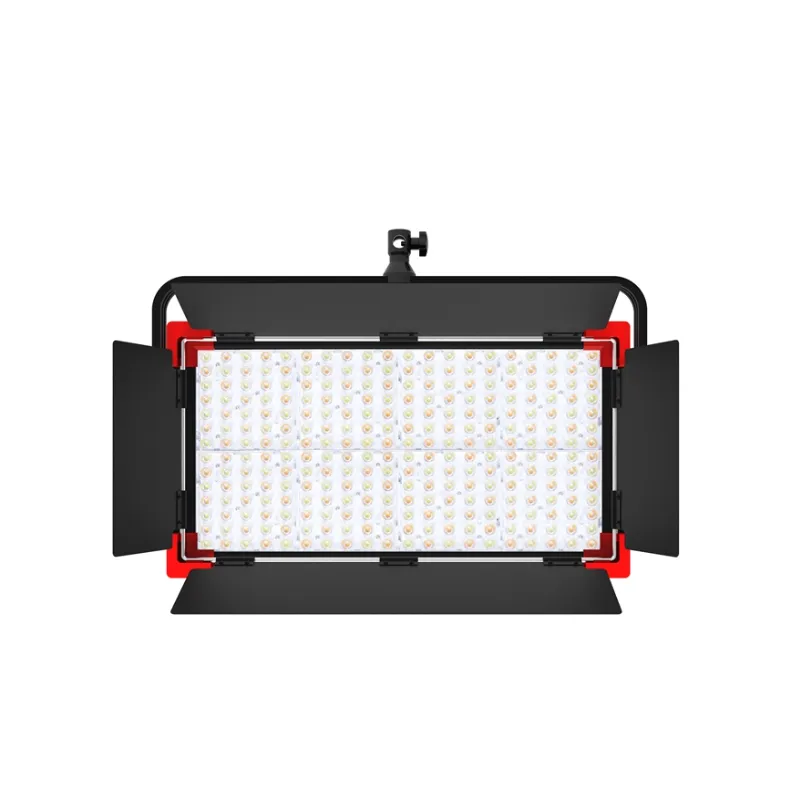

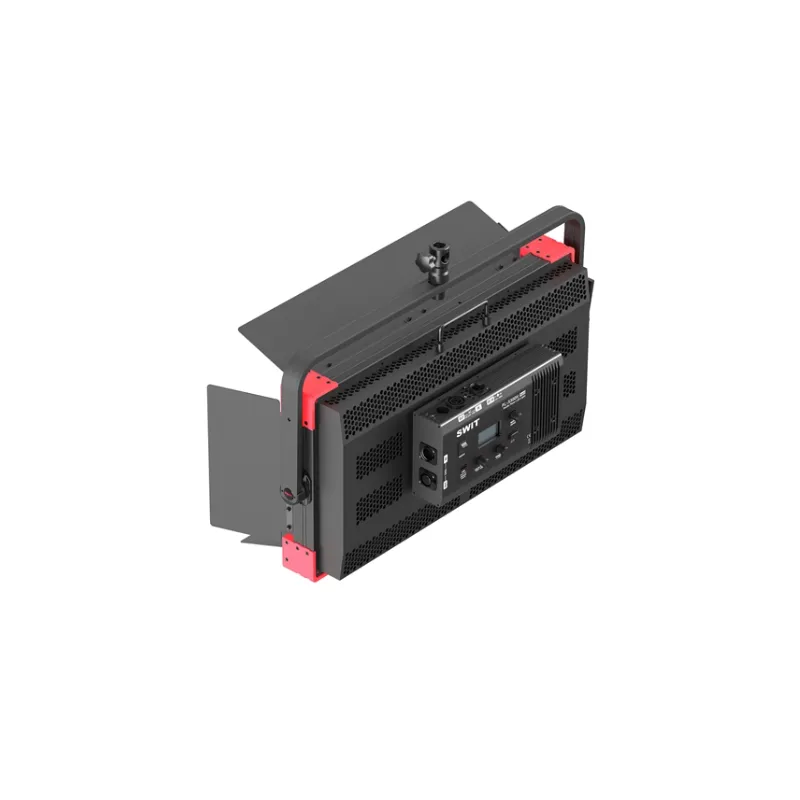

The SWIT PL-S300H is a 300W hard bi-color LED studio panel delivering an extremely high output of 47,000 lux at 1 meter, designed specifically for large-scale broadcast studios, film sets, and event stage lighting where powerful, precise illumination is required.
The SWIT PL-S300H 300W Hard Bi-color Studio Panel LED Light is a high-performance lighting solution engineered for professional broadcast, film, and live event applications. Featuring 280 high-power, long-life SMD LEDs, each equipped with a dedicated 45 lens, the PL-S300H produces an intense, focused hard light with exceptional brightness. Its 21-foot panel design delivers an impressive 47,000 lux at 1 meter, making it ideal for illuminating large studio spaces and stages.
The PL-S300H offers a continuously adjustable bi-color temperature range from 2700K to 6500K, ensuring seamless matching with different lighting environments. With outstanding color accuracy ratings of CRI 96, TLCI 99, and SSI (D55) 75, it delivers reliable and natural color reproduction for professional camera work. Designed for silent operation, the fixture uses a fanless cooling system, making it perfect for sound-sensitive studio environments. Professional control is supported via DMX512, onboard LCD display, multiple dimming curves, and flexible power options including PowerCON TRUE1 AC and 48V DC XLR input.
Key Features
- 300W hard bi-color LED studio panel
- 21 panel size for large-scale lighting setups
- Ultra-bright output 47,000 lux at 1m
- 280 high-power long-life SMD LEDs
- Dedicated 45 lens on each LED for intense hard light
- Bi-color range 2700K-6500K continuously adjustable
- Excellent color accuracy CRI 96, TLCI 99, SSI (D55) 75
- Fanless design for silent operation
- Multiple dimming curves: Linear, Log, Exponential, S-curve
- DMX512 control for dimmer and color temperature

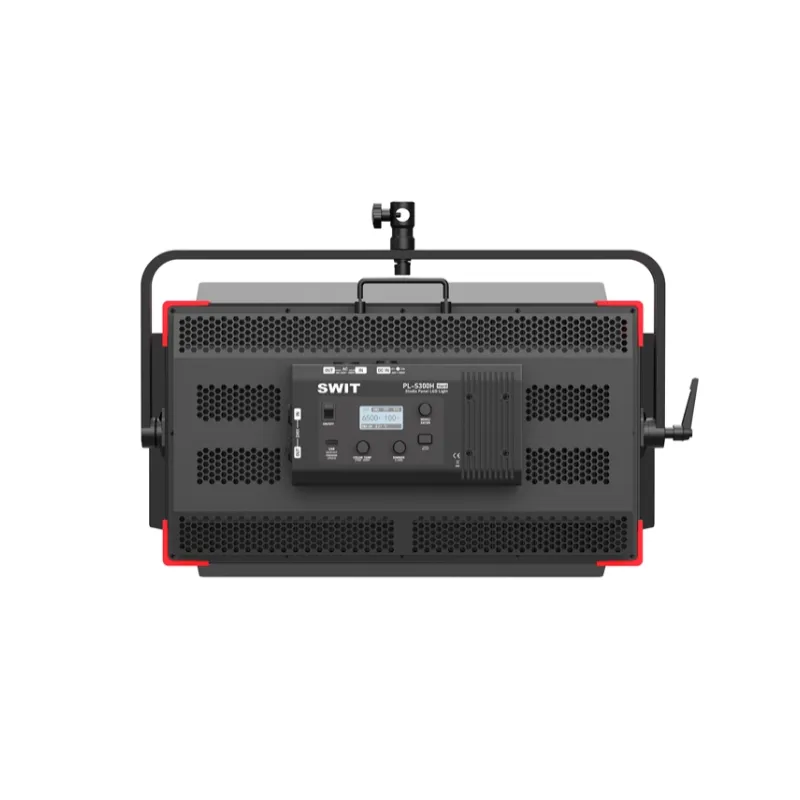

- LCD display showing color temperature and dimmer values
- PowerCON TRUE1 AC input and loop output
- 48V DC power via 3-pin XLR
- IP20 protection rating
- Designed for broadcast studios, film sets, and event stages
- SWIT PL-S300H LED Studio Panel Light
- 4-Leaf Metal Barn Doors
- Yoke Bracket
(Optional accessories sold separately: Honeycomb grid, Softbox, Pole-operated Yoke)
- Model PL-S300H
- Power Consumption 300W
- Panel Size 21 ft
- Brightness 47,000 lux at 1 m
- LED Type 280 high-power SMD LEDs
- Beam Angle 45° (per LED lens)
- Color Temperature 2700K-6500K
- Color Rendering CRI 96 / TLCI 99 / SSI (D55) 75
- Control DMX512, onboard LCD
- Dimming Curves Linear, Log, Exponential, S
- Cooling Passive (fanless)
- Power Input PowerCON TRUE1 AC / 3-pin XLR DC 48V
- Protection Grade IP20
