Azden SMX-10 DSLR Stereo Video Microphone

SMX-10 – Directional Stereo Microphone

• Handcrafted in Japan
• Designed for DSLR cameras
• Directional stereo microphone
• Wide frequency response
• Low-cut frequency filter
• Up to 1000 hours of battery life on AAA battery
• 3.5mm mini-plug stereo output
• Includes shock mount and windscreen

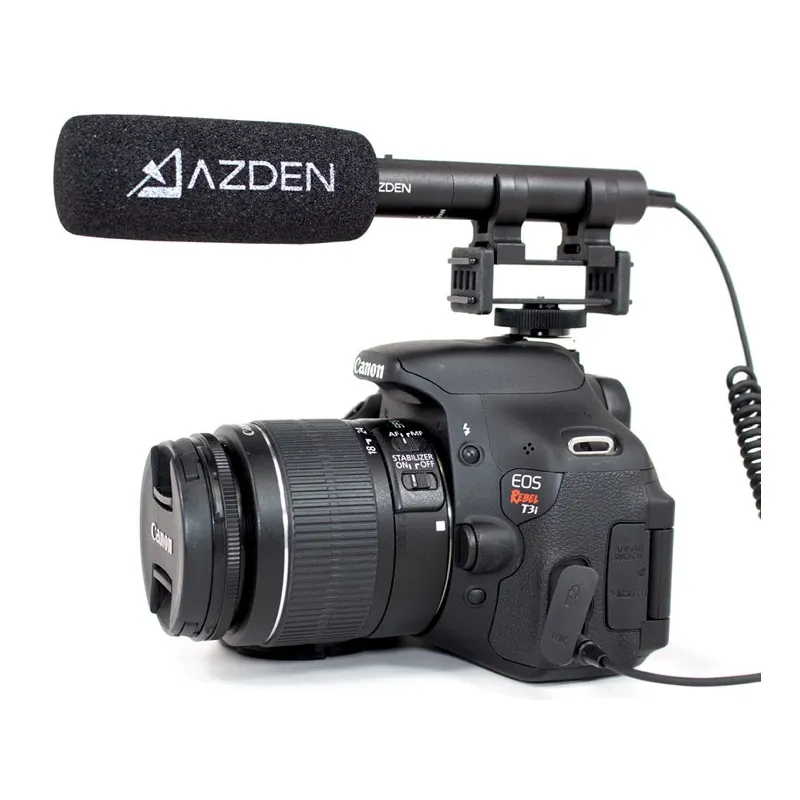

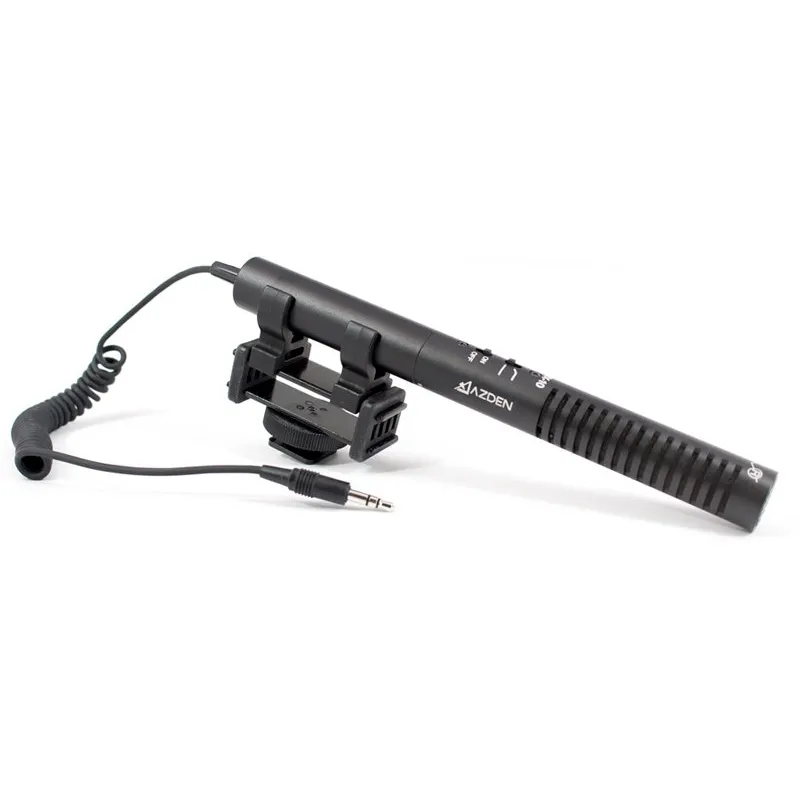

The Azden SMX-10 allows direct stereo recording with DSLR cameras. It features a 177 mm long dual uni-directional electret condenser microphone powered by a single AAA battery (not included). The microphone has a built-in cable terminating in a 3.5 mm stereo mini-plug. It comes with a windscreen and a camera hot-shoe mount for easy attachment.

Specifications

• Microphone Element: Electret Condenser
• Frequency Response: 100–20,000 Hz
• Low Cut Filter: 6 dB/octave at 200 Hz
• Directional Pattern: Stereo Cardioid
• Sensitivity: -40 dB at 1 kHz (0 dB = 1 V/Pa)
• Impedance: 1.5 kΩ
• Maximum Sound Pressure Level: 100 dB (1 kHz at 1% Total Harmonic Distortion)
• Signal-to-Noise Ratio: 60 dB (1 kHz at 1 Pa)
• Power Supply: One AAA (1.5 V) battery
• Current Consumption: 0.5 mA or less
• Battery Life: Approximately 1000 hours
• Weight: 52 g
• Dimensions: Diameter 18.2 mm × Length 177 mm
• Output Connector: 3.5 mm stereo mini-plug
