PANASONIC AW-UE40WEJ 4K INTEGRATED CAMERA, WHITE AW-UE40WEJ
- Color white
- CMOS Sensor 4k (3840 x 2160) qfhd
- Type of Product ptz camera
- Video Resolution 4k
- Optical Zoom 24x
- Digital Zoom 12x
- Video Interface hdmi
- Video Interface usb type-c
- Tracking auto tracking
- Features live streaming capability
- Features ndi technology
- Features audio embedding
- PoE Technology poe+
- IP Video ndi hx2
- IP Video srt
- IP Video rtmp
- IP Video rtsp
- Control Protocol rs-422
- Control Protocol ip
- Control Interface rj-45
- Angle Of View 75 degree
- Color white
- CMOS Sensor 4k (3840 x 2160) qfhd
- Type of Product ptz camera
- Video Resolution 4k
- Optical Zoom 24x
- Digital Zoom 12x
- Video Interface hdmi
- Video Interface usb type-c
- Tracking auto tracking
- Features live streaming capability
- Features ndi technology
- Features audio embedding
- PoE Technology poe+
- IP Video ndi hx2
- IP Video srt
- IP Video rtmp
- IP Video rtsp
- Control Protocol rs-422
- Control Protocol ip
- Control Interface rj-45
- Angle Of View 75 degree
AI ASSISTANT CHAT
Or ask about:
| Type of Product | PTZ Camera |
| CMOS Sensor | 4K (3840 x 2160) QFHD |
| Color | White |
| Video Resolution | 4K |
| Optical Zoom | 24x |
| Digital Zoom | 12x |
| Video Interface | USB Type-C |
| Video Interface | HDMI |
| Tracking | Auto Tracking |
| Features | NDI Technology |
| Features | Live Streaming Capability |
| Features | Audio embedding |
| PoE Technology | PoE+ |
| IP Video | SRT |
| IP Video | RTSP |
| IP Video | NDI HX2 |
| IP Video | RTMP |
| Control Protocol | RS-422 |
| Control Protocol | IP |
| Control Interface | RJ-45 |
| Angle Of View | 75 Degree |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease

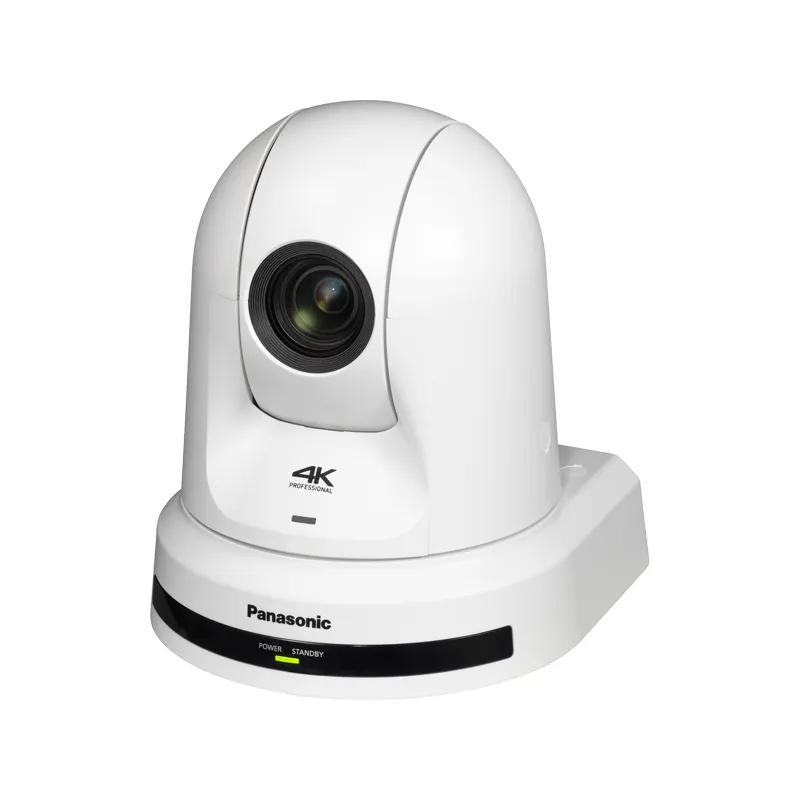

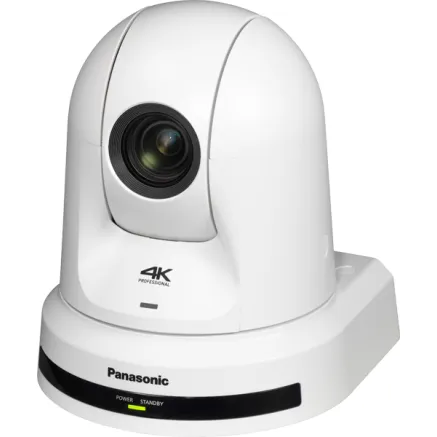

PANASONIC AW-UE40WEJ 4K INTEGRATED CAMERA, WHITE
The integrated lens offers a 35 mm equivalent focal range of approximately 25600 mm with i.Zoom up to 28x in UHD and 36x in FHD. The camera outputs UHD up to 2160/29.97p or 25p via HDMI and supports HD formats up to 1080/59.94p or 50p. A USB-C port provides UVC/UAC support for plug-and-play use as a USB video/audio device, with audio from the 3.5 mm mic/line input embedded in the video outputs.
Network, Control, and PTZ Performance
The AW-UE40WEJ streams over IP using H.264 or H.265, supporting protocols like RTSP/RTP, RTMP/RTMPS, and SRT for unmanaged networks. NDI HX2 is available as an optional activation for NDI workflows. Control options include IP (RJ-45), RS-422, or USB, with PoE+ support for power and data over a single cable. The direct-drive pan/tilt mechanism provides smooth movement with a pan range of 175 and a tilt range of 30 to +90, suitable for desktop or ceiling installation.
Key Features
1/2.5-type 4K MOS sensor with approximately 8.49 MP effective
UHD output over HDMI up to 2160/29.97p and 25p; HD up to 1080/59.94p and 50p
24x optical zoom; i.Zoom 28x (UHD) / 36x (FHD); digital extender 1.4x/2x
35 mm equivalent focal length approximately 25600 mm; horizontal angle of view up to about 74
HDMI 422 10-bit output; USB-C device mode with UVC/UAC
IP streaming JPEG (MJPEG), H.264, H.265; protocols SRT, RTSP/RTP, RTMP/RTMPS
Optional NDI HX2 activation for NDI workflows
3.5 mm stereo mic/line input with plug-in power; audio embedding on outputs
Direct-drive PTZ pan 175, tilt 30 to +90

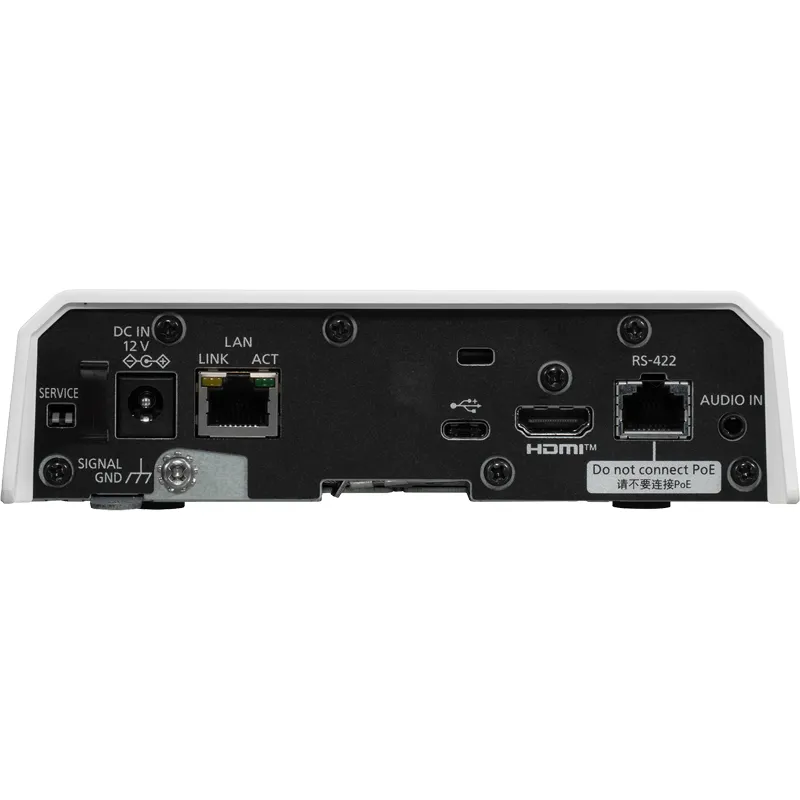

Power and control via PoE+; LAN 100/1000BASE-T; RS-422 control (RJ-45)
Approx. dimensions 160 x 192 x 166 mm; approx. 2.0 kg including ceiling bracket
