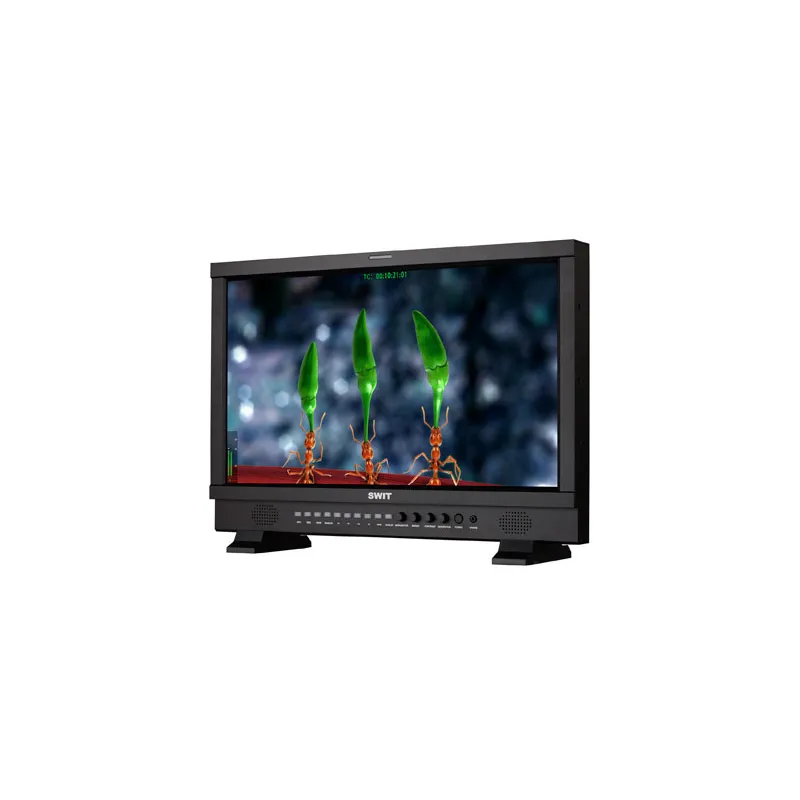

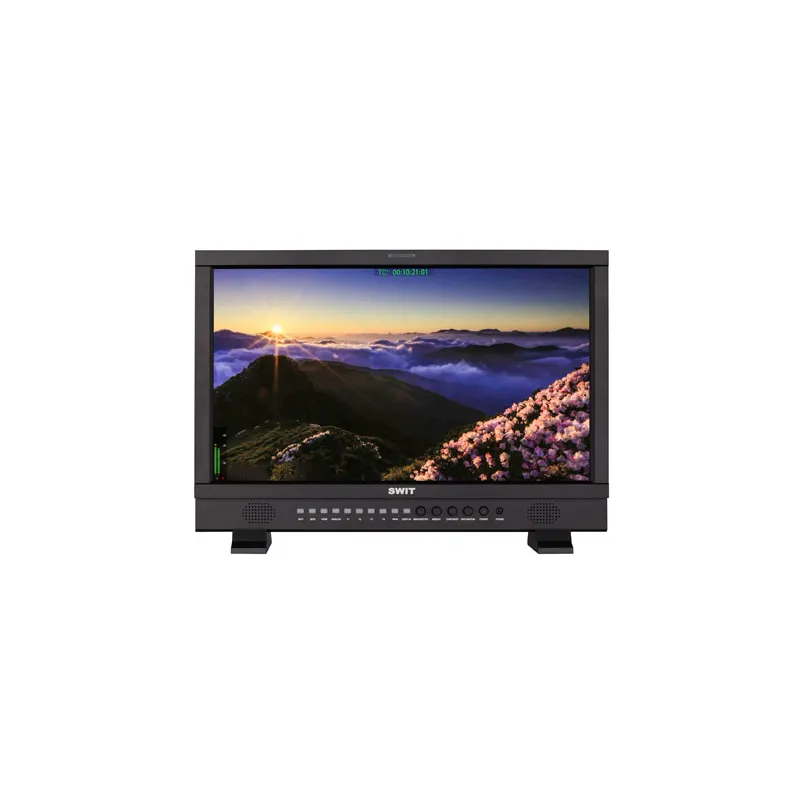

SWIT S-1223H 21.5 Studio HD LCD Monitor
AI ASSISTANT CHAT
Or ask about:
| Video Resolution | HD 1080 |
| Video Interface | HD-SDI |
| Video Interface | HDMI |
| Video Interface | Component |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
S-1223H
21.5-inch Full HD 3GSDI&HDMI Studio LCD Monitor
- 21.5-inch LCD Panel, 1920×1080 resolution
- 2K/3G/HD/SD-SDI( x2 ), HDMI monitoring
- Y/Pb/Pr, VGA, CVBS monitoring
- 2-ch Embedded audio meters with alert
- Select any 2 audio channels to output
- Peaking focus assist (red/blue switch)
- AFD, Timecode, H/V delay
- TSL UMD and text TALLY display
- Safety Marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
- False Color, R/G/B/Mono, Zebra stripes, Internal Color Bar
- V-mount / Gold mount battery plate optional
- USB firmware upgrade
21.5-inch Full HD Studio LCD Monitor
AFF-IPS LCD panel, LED backlight
S-1223H adopts a 21.5-inch IPS (In-Plane Switching) LCD panel, Full HD 1920×1080 resolution and LED backlight, 1000:1 contrast for accurate color reproduction. The viewing angle is Horizontal: 178° / Vertical: 178°.
Multi-format Input/Output
S-1223H supports
2K/3G/HD/SD-SDI input×2
2K/3G/HD/SD-SDI loop ×2
HDMI input ×1
HDMI loop×1
YUV input ×1
VGA input ×1
CVBS input ×1
CVBS loop ×1
RS485 UMD input×1
RS485 UMD output×1
RS232C UMD input ×1
RS485 GPI input ×1
L/R analog audio input×1
Digital Audio De-embed
2-ch Audio meters display+ Audio Alarm under SDI/HDMI
S-1223H supports 2-ch audio meters under SDI and HDMI input. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB. The ch-1 and ch-2 de-embedded audio can be output via 3.5mm headphone socket and speaker. If the audio value is too low or no embedded audio, it will display "MUTE" or "UNLOCKED" in the audio bar.
UMD and Text-Tally Display
TSL 3.1/4.0 Protocol
S-1223H supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD inputs via RS485 or RS232C port and outputs via RS485 port.
USB Firmware Upgrade
S-1223H provides a standard USB port for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into S-1223H monitor to upgrade, without PC connection.
Multiple Power Sources
AC adaptor / V-mount / Gold mount
S-1223H provides a 4-pin XLR socket of DC 11-17V power input, and V-mount or Gold mount plate for outdoor use.
3-color TALLY Light
RS485 input signal
There are three colors for the Tally light: Red, Green and Yellow. Users can define the pins of RS485 port to control the TALLY lights.
Input Video Formats
S-1223H supports the following input video formats:
- CVBS: PAL / NTSC
- SDI: SMPTE ST 2048-1: 2011, 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
- SDI: SMPTE-425M, 1080P (60 / 59.94 / 50)
- SDI: SMPTE-274M, 1080i (60 / 59.94 / 50)
- SDI: SMPTE-274M, 1080p (30 / 29.97 / 25 / 24 / 23.98)
- SDI: SMPTE-RP211, 1080psf (30 / 29.97 / 25 / 24 / 23.98)
- SDI: SMPTE-296M, 720p (60 / 59.94 / 50)
- SDI: SMPTE-125M, 480i (59.94)
- SDI: ITU-R BT.656, 576i (50)
- HDMI: 480i/ 576i / 480p / 576p
- HDMI: 1080i (60 / 59.94 / 50)
- HDMI: 720p (60 / 59.94 / 50)
- HDMI: 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
- Y/Pb/Pr: 480i/ 576i / 480p / 576p, 720p (50/60), 1080i (50/60), 1080p (50/60)
- VGA: 640×480 / 800×600 / 1024×768 / 1152×864 / 1280×768
- VGA: 1280×960 / 1280×1024 / 1600×1200
