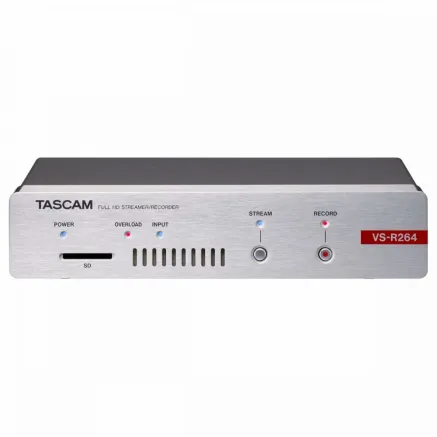

Tascam VS-R264 Full-HD Video Streamer and Recorder

Tascam VS-R264 Full-HD Video Streamer / Recorder

The VS-R264 is an AV-over-IP streaming encoder and decoder that supports simultaneous encoding, streaming, recording, and decoding of audio and video content in 4K/UHD or Full HD resolution. It utilizes H.265/HEVC and H.264 video codecs, making it suitable for transmissions over corporate networks, WANs, and live internet streaming with automatic FTP upload of recorded files to network storage.

Supporting open streaming formats and protocols, the VS-R264 is compatible with Content Delivery Networks and online live platforms such as YouTube, Wowza, Ustream, AWS Elemental MediaLive, and CloudFront.

Key Features

• Simultaneous encoding, decoding, recording, and streaming in multiple formats
• Multiple streaming protocols supported: RTMP, RTSP, HLS, plus 2× unicast and 1× multicast streams in parallel
• Full HD (1920×1080p) video streaming encoded to H.264 with bit rates up to 30 Mbps
• Ideal as a standalone YouTube encoder or for streaming to other CDNs like DaCast, Facebook, and Wowza
• Decodes streaming video signals to Full HD (1920×1080p)
• HDMI input for cameras and sources; HDMI output for displays
• RESTful API for integration into commercial AV automation and control systems
• Balanced analog audio input/output via Euroblock connectors with configurable reference levels for professional audio compatibility
• Unbalanced 3.5-mm stereo mini jack audio input/output for consumer device compatibility
• Audio embedding and de-embedding capabilities for integration with sound reinforcement systems
• Records video directly to SD cards or external USB 3.0 storage devices
• Automatic FTP upload of recorded files from SD or USB storage
• Clear web interface for network configuration and control
• Supports Gigabit Ethernet and Power over Ethernet (PoE+)

Applications

The VS-R264 is ideal for live events, lectures, government sessions, boardroom presentations, concert venues, houses of worship, and inter-room or inter-location AV connections. Its compact 1U half-rack size allows two units to be rack-mounted side by side or placed on a table or mounted under a shelf using the included bracket.

Technical Specifications

Video Input/Output

• HDMI Input: HDMI v1.4a (Type A)
• HDMI Output: HDMI v2.0 (Type A)
• Input Resolutions Supported: 1080p (60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps), 720p (60, 59.94, 50 fps), 576p@50, 480p (60, 59.94 fps)
• Encoding Resolutions: Passthrough, 1920×1080p, 1280×720p, 950×540p, 720×576p, 720×480p, 640×360p, 480×270p, 320×180p
• Encoding Format: H.264 (baseline, main, high profiles)
• Encoding Bit Rates: 500 kbit/s to 30 Mbit/s
• Bitrate Control: Variable and constant
• Key Frame Interval: 0.25 to 16.5 seconds or 3 to 1000 frames

Audio Inputs and Outputs

• Balanced Analog Audio Input: Euroblock connector, 3.81 mm pitch; nominal input level +4 dBu or +6 dBu depending on reference level; maximum input level up to +20 dBu
• Unbalanced Analog Audio Input: 3.5-mm stereo mini jack; nominal input level -10 dBV; maximum input level +6 dBV
• Balanced Analog Audio Output: Euroblock connector, 3.81 mm pitch; nominal output level +4 dBu; maximum output level up to +20 dBu
• Unbalanced Analog Audio Output: 3.5-mm stereo mini jack; nominal output level -10 dBV; maximum output level +6 dBV
• Output Gain Range: -∞, -72 dB to +6 dB in 1 dB steps
• Audio Codec: AAC, 64 to 512 kbit/s, sample rates 32/44.1/48 kHz

Storage and Connectivity

• Storage Media: USB drives and SD/SDHC cards
• USB Connector: USB 3.0 Type A
• Recording Bit Rates: 500 kbit/s to 30 Mbit/s
• Video Transport Protocols: RTMP/RTMPS, RTSP, HLS, RTP/UDP in unicast and multicast
• Simultaneous Streaming: 1× RTMP/RTMPS, 1× RTSP, 1× HLS, 2× unicast, 1× multicast
• Network Connectivity: Gigabit Ethernet
• IP Configuration: DHCP (default) or static
• User Interface: Full-featured web UI optimized for tablets and desktops
• Command and Control Protocol: HTTP with auto-discovery of other Tascam units on subnet

Power and Physical

• Power Supply: Power over Ethernet Plus (PoE+) or external 12 V DC adapter (sold separately)
• Dimensions (W×H×D): 214 mm × 45 mm × 136 mm (including protrusions)
• Weight: 0.85 kg
• Operating Temperature Range: 0 to 40 °C

Included in Delivery

• VS-R264 unit
• Installation brackets
• Euroblock plugs
• Cable band kit
• USB memory with discovery application and reference manual
• Dust covers for RJ-45 connectors
• Quick Start guide with warranty information
