Blackmagic Design HyperDeck ISO Recorder 100G
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Microphone accessory |
| Features | LCD Screen |
| Features | Supports Multiple Control Protocols |
| Features | On-Board Record |
| Features | Joystick |
| IP Video | SMPTE-2110 |
| Control Protocol | RS-422 |
| Control Interface | USB-C |
| Control Interface | RJ-45 |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease
The HyperDeck ISO Recorder 100G is designed for live production and allows you to record up to 8 cameras simultaneously. Record footage for later editing or take advantage of exciting live playback in DaVinci Resolve.
Files are saved in broadcast quality in ProRes format directly to network storage, allowing for very long recording times. The device connects via 100G Ethernet SMPTE-2110, so all 8 video channels run over a single connection. Alternatively, you can add a Blackmagic SDI Expander 8x12G for 12G-SDI. You can also playback all 8 channels, which is great for testing.
The Blackmagic Design HyperDeck ISO Recorder 100G is a 2RU SMPTE 2110 broadcast recorder designed for multi-camera live production and high-bandwidth IP workflows. It allows you to record up to eight channels of 10-bit 422 video at resolutions up to DCI 4K60, with each input saved as a separate ProRes file directly to network storage via dual 100GbE connections. SMPTE ST 2022-7 redundancy ensures uninterrupted recording over two network paths, while support for 16 channels of embedded audio per stream preserves full multichannel audio integrity for post-production.
The device is designed for live production and broadcast environments and allows simultaneous recording and playback of all eight channels, making it suitable for live switching, replays, and post-event editing. The front 2.2" LCD with a precision metal jog wheel and transport controls enables precise clip navigation and monitoring, complemented by a built-in speaker and headphone output for audio monitoring. External control is possible via RS-422, NMOS via RJ45, and USB-C for configuration, while dual AC power, redundant network paths, and the advanced Blackmagic OS ensure reliable operation in demanding conditions.
IP Video Recording
- Records 8 simultaneous SMPTE 2110 IP video channels up to DCI 4K60

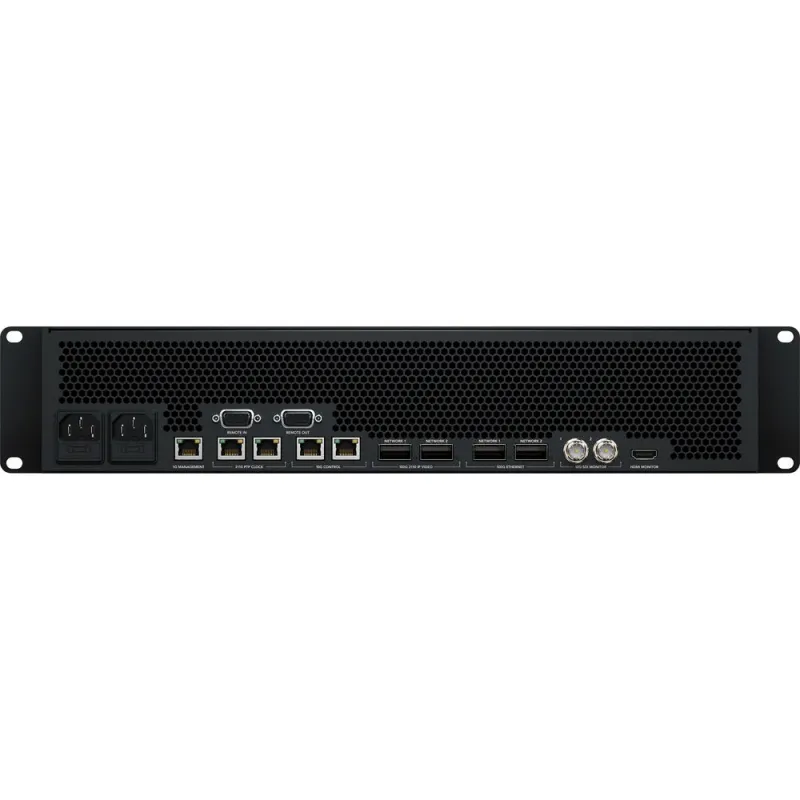

- Dual 100GbE QSFP28 ports with SMPTE ST 2022-7 redundancy
- Direct recording to shared network storage via 100G Ethernet
- Support for ProRes 422 HQ, 422, 422 LT, and Proxy codecs
- 10-bit 422 video with support for Rec. 709 and Rec. 2020
- 16 channels of embedded audio per video stream
- Simultaneous multi-channel playback for testing and replay
Advanced features

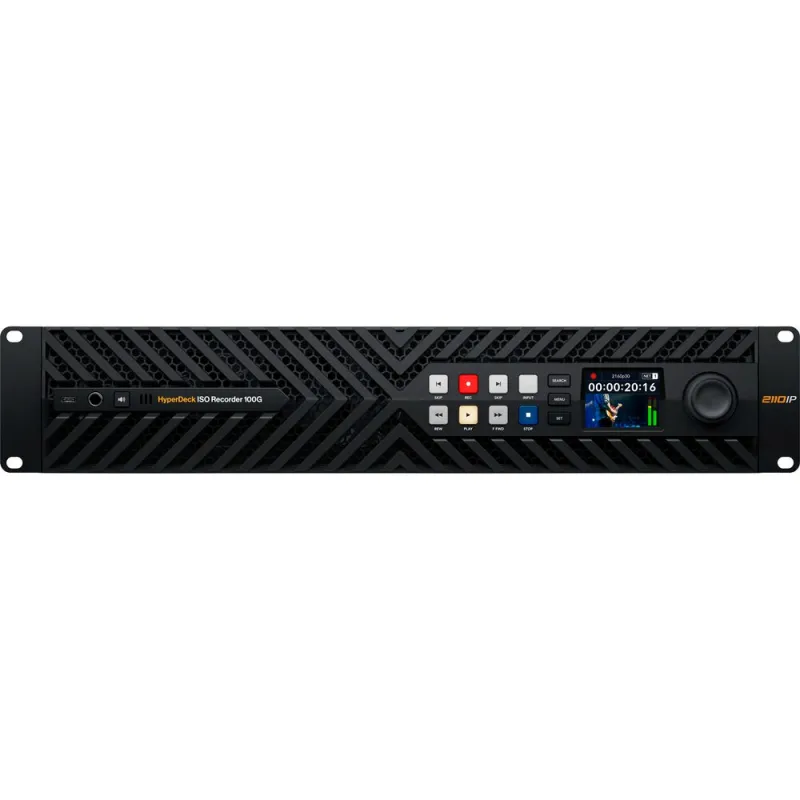

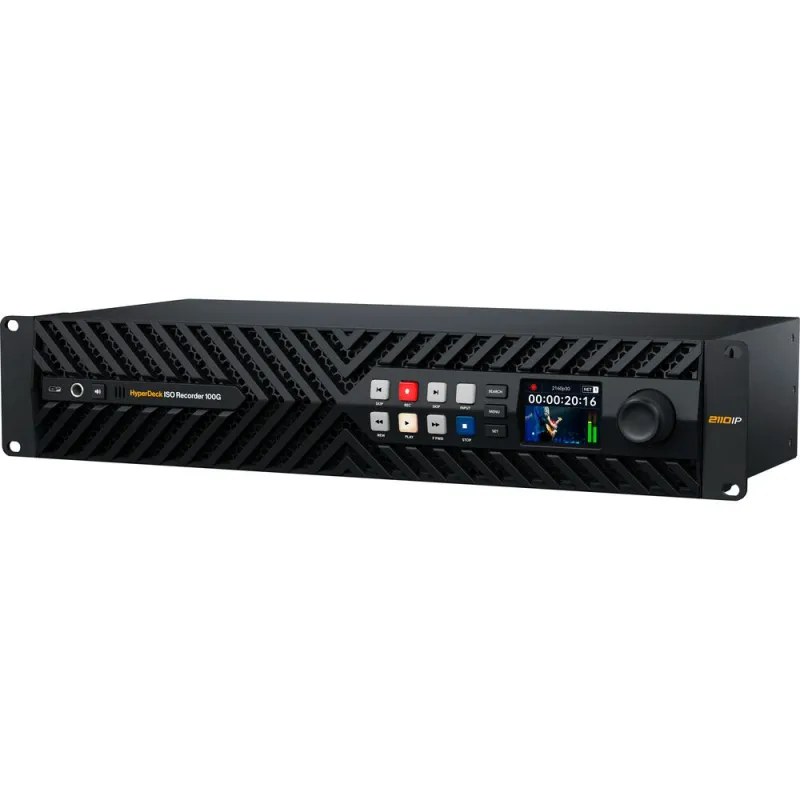

- 2.2" front-panel LCD for video, audio, and system monitoring
- Precision metal search wheel with electronic clutch and transport controls
- Built-in speaker and headphone output for audio monitoring
- Control via RS-422 and remote control via Ethernet
- Two 10G RJ45 ports for NMOS control and configuration
- USB-C interface for settings and firmware updates
- Two IEC C14 AC inputs for redundant power supply
