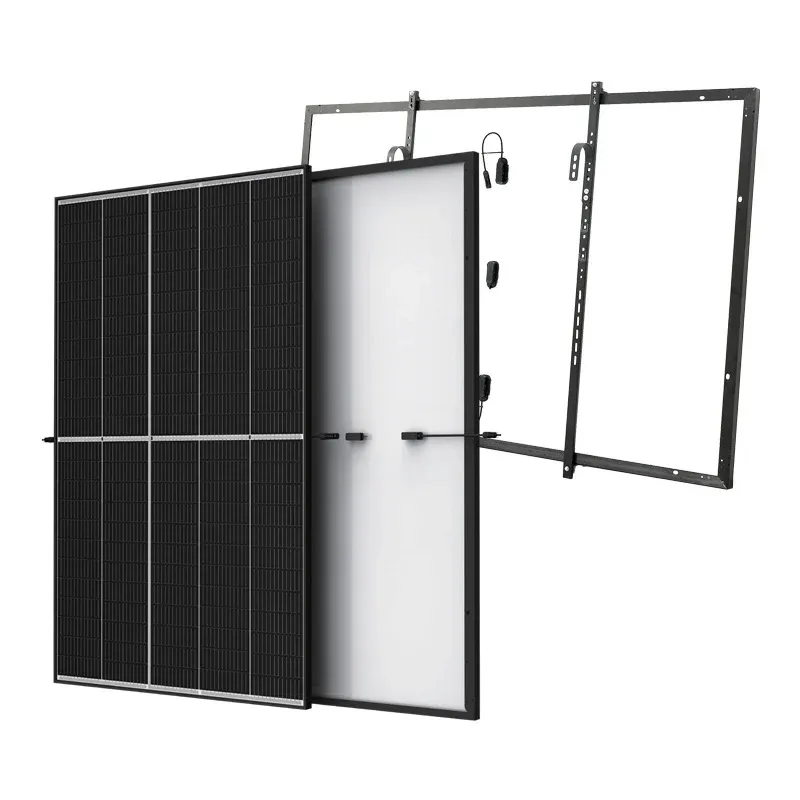

Bundle of Trina 400W solar panel + EcoFlow balcony holder kit
The EcoFlow kit with Trina panel and balcony hook is an ideal solution for those who want to use solar energy in urban conditions. Thanks to the 400W Trina photovoltaic panel and the balcony mount from EcoFlow, it is possible to install a solar system even on small balconies. This is a practical solution that allows you to reduce your electricity bills and enjoy free solar energy.
Robust construction and easy installation
The kit includes a sturdy balcony bracket measuring 14 x 32 x 1213 mm and all the necessary mounting components, such as pins, clamps and protective washers. The whole set is designed for quick and easy installation. The maximum load of 30 kg and high wind resistance make the installation stable and safe in all weather conditions. The necessary tools are also included, eliminating the need to purchase additional equipment.

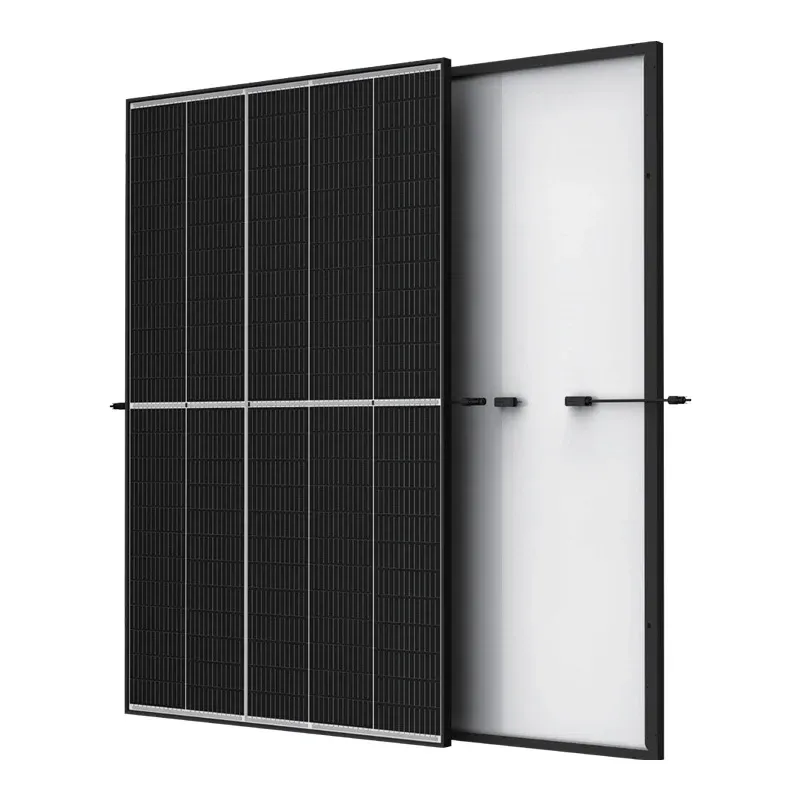

Trina 400 W high-efficiency photovoltaic panel
The Trina photovoltaic panel from the Vertex S series is distinguished by its 400 W power output and an efficiency of 21.1. Thanks to monocrystalline and multi-bay technology, the panel ensures maximum utilization of sunlight and low energy losses. This makes the system work effectively even in less favorable lighting conditions. The panel also features a mechanical performance of up to 6,000 Pa of positive load, and 4,000 Pa of negative load, which guarantees its reliability.
Ideal solution for apartments
Compact dimensions and the ability to be mounted on a balcony railing make the EcoFlow kit with Trina panel a perfect solution for apartments in blocks of apartments. It does not require large space or complicated installation work. The PowerStream system (to be purchased separately) allows you to directly power household appliances and store excess energy in compatible EcoFlow power stations.
Green energy every day
The use of solar energy allows not only to reduce electricity costs, but also to take care of the environment. The EcoFlow kit with Trina panel is a step towards green living and energy independence. It will be ideal for people who want to combine savings with modern technologies in their daily lives.
Included
- Trina 400W panel x1
- EcoFlow balcony mount for 400W photovoltaic panels x1
General
Manufacturer: EcoFlow

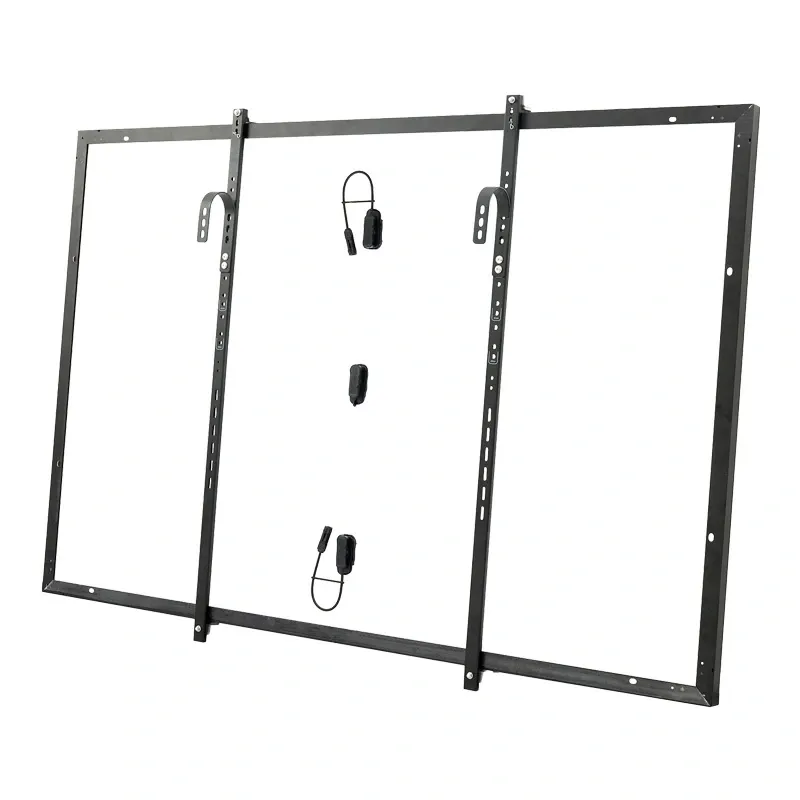

EcoFlow balcony bracket for 400W photovoltaic panels
Weight: Approx. 3.2 kg
Max load: 30 kg
Degree of wind resistance: 10
Trina 400W panel (Electrical data STC)
Peak power-P MAX (Wp): 390 - 395 - 400 - 405
Power tolerance-P MAX (W): 0 +5
Voltage of maximum power-VMPP (V): 33.8 - 34.0 - 34.2 - 34.4
Current of maximum power-IMPP (A): 11.54 - 11.62 - 11.70 - 11.77
Open circuit voltage-VOC (V): 40.8 - 41.0 - 41.2 - 41.4
Short-circuit current-ISC (A): 12.14 - 12.21 -12.28 - 12.34
Module efficiency m (%): 20.3 - 20.5 - 20.8 - 21.1
Trina 400W panel (Electrical data NOCT)
Maximum power-P MAX (Wp): 295 - 298 - 302 - 306
Maximum power-VMPP voltage (V): 31.8 - 32.0 - 32.2 - 32.5
Current of maximum power-IMPP (A): 9.26 - 9.32 - 9.38 - 9.41
Open circuit voltage-VOC (V): 38.4 - 38.6 - 38.8 - 38.9
Short-circuit current-ISC (A): 9.78 - 9.84 - 9.90 - 9.95
Trina 400W panel (Mechanical data)
Solar cells: Monocrystalline
Number of cells: 120 cells
Module dimensions: 1754 x 1096 x 30 mm (69.06 x 43.15 x 1.18 inches)
Weight: 21.0 kg (46.3 lb)
Glass: 3.2 mm (0.13 in), High transmission, AR coating on heat strengthened glass
Material encapsulant: EVA/POE
Back sheet: White
Frame: 30 mm (1.18 in) anodized aluminum
Junction box: IP 68 class
Cables: Photovoltaic technology cable 4.0 mm (0.006 in), Portrait 280/280 mm (11.02/11.02 inches), Length can be customized
Connector: MC4 EVO2 / TS4
Trina 400W panel (Temperature ratings)
NOCT (Nominal Operating Temperature of the Cell): 43°C (±2°C)
PMAX temperature coefficient: -0.34°C
Temperature coefficient VOC: -0.25°C
Temperature coefficient ISC: 0.04°C
Trina 400W panel (Maximum ratings)
Operating temperature: -40 to +85°C
Maximum system voltage: 1500V DC (IEC), 1500V DC (UL)
Maximum series fuse voltage: 20A
