Swit GA-PT50P Precise Positioning Pantograph hinge
- Compatible other
- Max height, cm 500
- Max height, cm max height 500 cm (5 m)
- Max height, cm min height 80 cm (0.8 m)
- Min height, cm 80
- Material aluminum
- Material aluminum & steel
- Tripod set includes mounting accessories (no hook)
- Type of Product accessory for ks-300/ks-302
- Type of Product additional camera support
- Type of Product ceiling pantograph
- Compatible other
- Max height, cm 500
- Max height, cm max height 500 cm (5 m)
- Max height, cm min height 80 cm (0.8 m)
- Min height, cm 80
- Material aluminum
- Material aluminum & steel
- Tripod set includes mounting accessories (no hook)
- Type of Product accessory for ks-300/ks-302
- Type of Product additional camera support
- Type of Product ceiling pantograph
AI ASSISTANT CHAT
Or ask about:
| Type of Product | Accessory for KS-300/KS-302 |
| Type of Product | Ceiling pantograph |
| Type of Product | Additional Camera Support |
| Compatible | other |
| Tripod set | Includes mounting accessories (no hook) |
| Material | Aluminum |
| Material | Aluminum & steel |
| Min height, cm | 80 |
| Max height, cm | 500 |
| Max height, cm | Min height 80 cm (0.8 m) |
| Max height, cm | Max height 500 cm (5 m) |
- 1. Evaluate your options.
- 2a. If you want to buy only one product with Aizdevums.lv leasing, then fill out the application here
- 2b. If you want to buy several items or use another leasing company, then put the items in the basket and choose the leasing service when ordering.
We offer leasing from Aizdevums SIA, Incredit SIA, ESTO.
Manager will check the availability of the items in the cart and send the loan application link. - 3. If you receive a positive response, contact us to purchase the product. Consultants will check the availability of the product.
- 4. If the product is available in the store or to be ordered from the warehouse, and you have received an affirmative answer from our consultants, please visit the store to proceed with purchase and leasing documents.
- 4a. You can also ask us to issue an invoice for this product and visit one of the leasing company branches to sign up leasing documents *..
- 5. Once the leasing documents have been signed up, you can receive the product in the store, if it is on site or inform our consultants and they will order it for you from the warehouse.
- *It is possible to arrange delivery for leased goods, so you can also perform the entire purchase process remotely.
**The sequence of leasing steps is the same for leases offered by InCredit Group.
***In case of doubt, contact our consultants!
When using leasing services, carefully evaluate your options to repay the loan!Lease

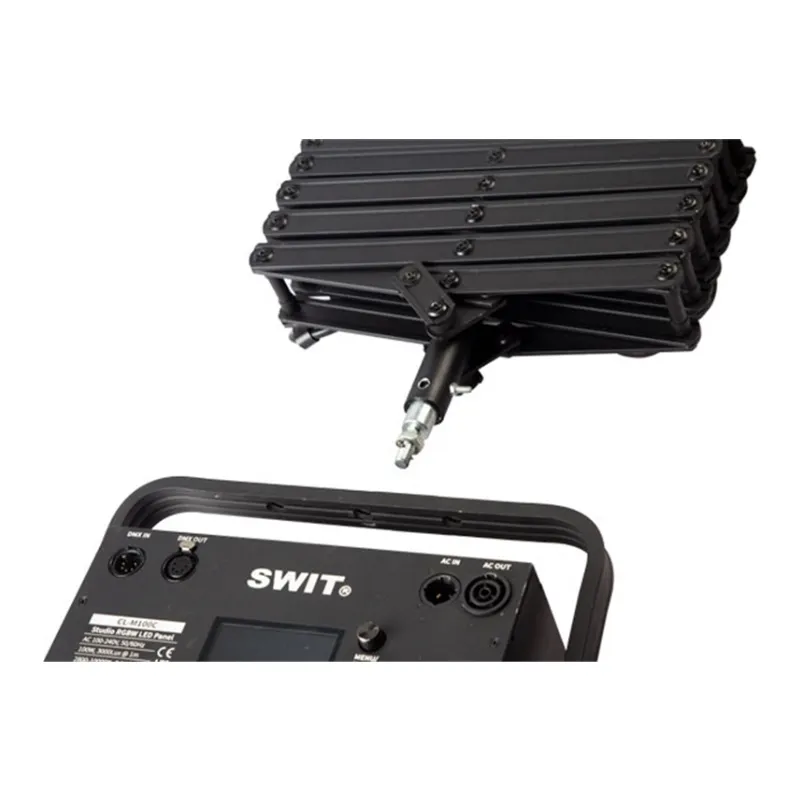

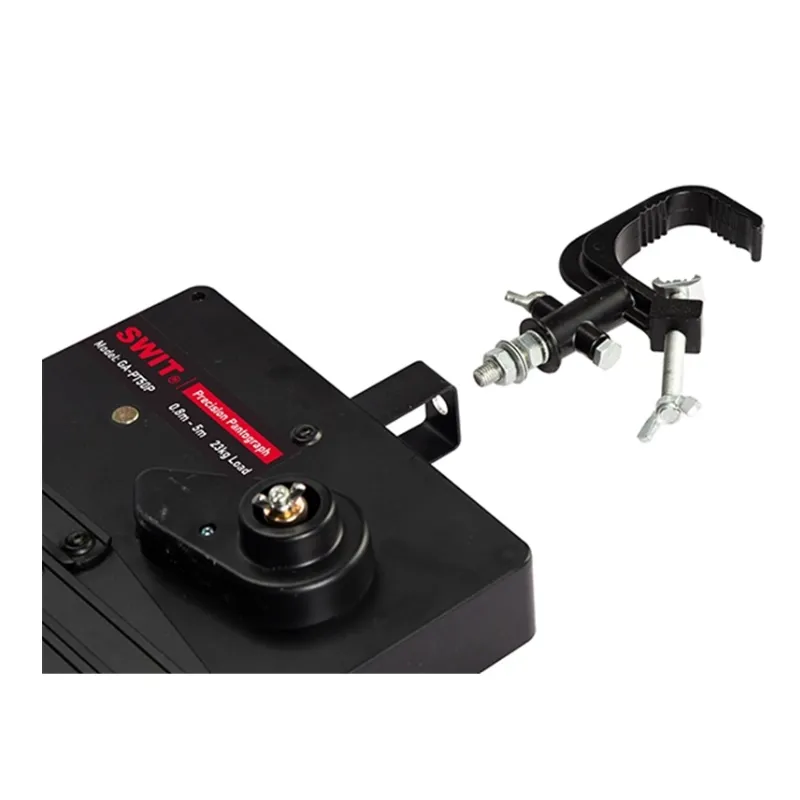

SWIT GA-PT50P Precise Positioning Pantograph
The SWIT GA-PT50P Precise Positioning Pantograph is a heavy-duty overhead studio support system with a 0.8m to 5m adjustable extension and 23kg load capacity, designed to provide smooth, accurate, and stable positioning of professional studio lighting fixtures.
The GA-PT50P is constructed from heavy-duty aluminum alloy, delivering exceptional strength and durability while supporting lighting fixtures up to 23kg, making it suitable for large studio lights and accessories.
With an expansion range from 0.8 meters to 5 meters, this pantograph allows effortless adjustment of light height, distance, and angle to achieve optimal lighting effects for broadcast, film, and studio productions. The system features 14-step counterbalance adjustment, ensuring smooth movement and the ability to hold lights securely in any position with precision. Integrated cable organizers on the rear side help maintain a clean and safe studio environment, while secure screw-bolt connections ensure reliable mounting to both ceiling hooks and studio lights.
Key Features
- Professional overhead pantograph lighting support
- Heavy-duty aluminum alloy construction
- Strong 23kg maximum load capacity
- Adjustable expansion length from 0.8m to 5m
- 14-step counterbalance adjustment for smooth control
- Stays securely in any position with high precision
- Rear cable organizer for clean cable management
- Secure hook connection via screw bolt
- Studio light connection via screw bolt
- Ideal for broadcast studios, video production, and professional lighting setups
Specifications
- Model: GA-PT50P
- Material: Aluminum alloy
- Maximum Load Capacity: 23kg
- Expansion Length: 0.8m - 5m
- Counterbalance Adjustment: 14 steps
- Mounting Type: Overhead pantograph
- Cable Management: Integrated rear cable organizer
